D-Link DAP-X1860 User Manual

12D-Link DAP-X1860 User Manual
Section 3 - Conguration
WPS-PBC Conguration
Step 1 - Initiate WPS Mode

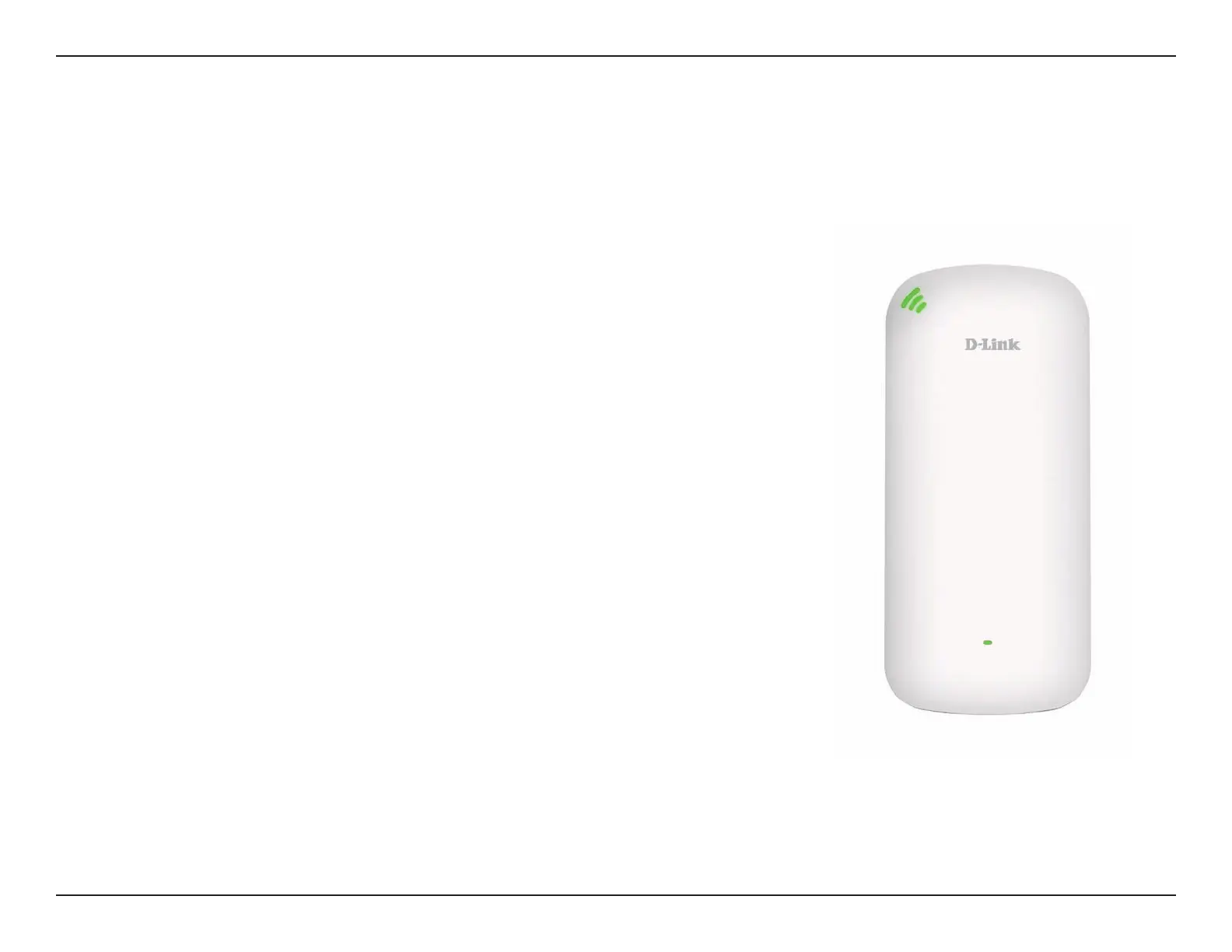

While the Status/WPS LED is blinking orange, push the WPS button on the source
wireless router or AP, and then push the WPS button on the DAP-X1860. The
Status/WPS LED will start to ash green. Please allow up to two minutes for the
process to nish. The Status/WPS LED will turn solid green when the DAP-X1860
has connected successfully to the source wireless router or access point.
Step 2 - Connecting Devices to the DAP-X1860
The DAP-X1860 is now ready to share the extended Wi-Fi network with your PCs
and mobile devices. You may use the WPS method to connect devices to the
extended network created by the DAP-X1860 using the following network names
(SSID). The password will be the same as the wireless network you are extending.
• (Your router’s SSID)-EXT
The Smart Connect feature will present a single wireless network. When
connecting clients to the extended network, they will be automatically added to
the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect feature and
individually congure 2.4 GHz and 5 GHz SSIDs, refer to “Extender Settings” on
page 28.
Wireless Protected Setup (WPS) makes connecting your DAP-X1860 easy. To use WPS, rst make sure the source router or access
point features a WPS Button or has a virtual WPS Button.

D-Link DAP-X1860 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	100, 1000 Mbit/s
Maximum transfer distance	185 m
Modulation	OFDM, QAM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Security algorithms	WPA2, WPA3
Wi-Fi data rate (max)	1200 Mbit/s
Certification	FCC, IC, CE
Mounting type	Wall
Product color	White
Ethernet LAN (RJ-45) ports	1
Antenna type	Internal
Antennas quantity	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	9.7 W
Included power plug types	EU
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage temperature (transmitter)	5 - 95 °C
Operating temperature (transmitter)	10 - 90 °C
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	75 mm
Width	60 mm
Height	165 mm
Weight	293 g
