D-Link DCS-2332L User Manual

66D-Link DCS-2332L User Manual

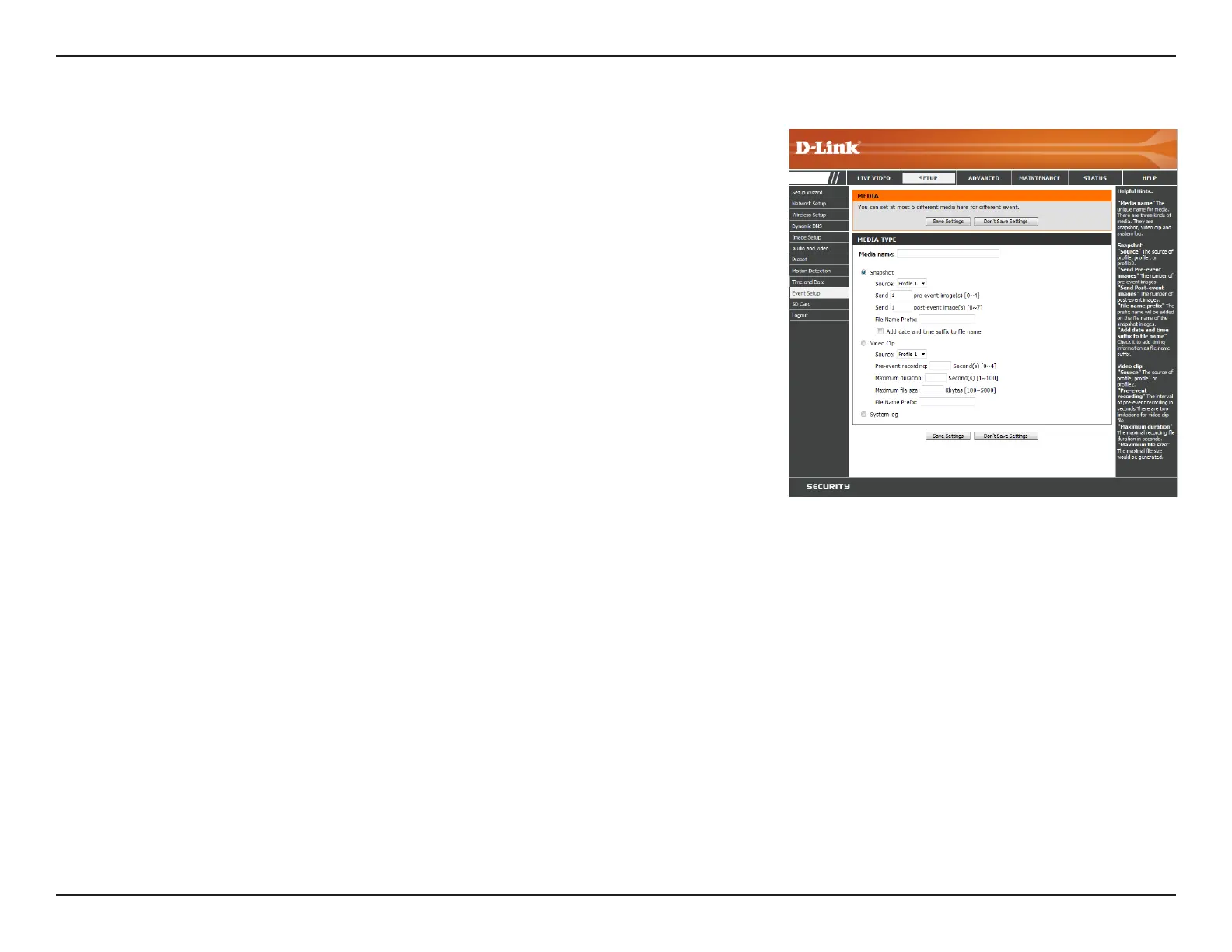

Section 4: Conguration
Video clip:
Source:
Pre-event recording:
Maximum duration:
Maximum le size:
File name prex:
System log:
Select this option to set the media type to Video Clips.
Set the video prole to use as the media source. Refer
to Audio and Video on page 56 for more information on
video proles.
This sets how many seconds to record before the main
event video clip starts. You can record up to four seconds
of pre-event video.
Set the maximum length of video to record for your
video clips.
Set the maximum le size to record for your video clips.
This is the prex that will be added to the lename of
saved video clips.
Select this option to set the media type to System Logs.
This will save the event to the camera system log, but
will not record any snapshots or video.
DCS-2332L

D-Link DCS-2332L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Minimum illumination	- lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Video motion detection	Yes
Built-in HDD	No
Compatible memory cards	SD, SDHC
Type	IP security camera
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Outdoor
Connectivity technology	Wireless
Form factor	Box
Product color	Black, White
Protection features	Water resistant
International Protection (IP) code	IP65
Browser supported	Internet Explorer, Firefox, Chrome
Audio system	2-way
Supported network protocols	TCP/IP
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	45.7 mm
Width	66 mm
Height	105.1 mm
Weight	255 g
