D-Link DGS-105/108 Gigabit Ethernet Switch
5
LED Indicators
The LED indicators of the Switch include Power, Link/Act and Speed. The following shows the LED indicators for the
Switch along with an explanation of each indicator.

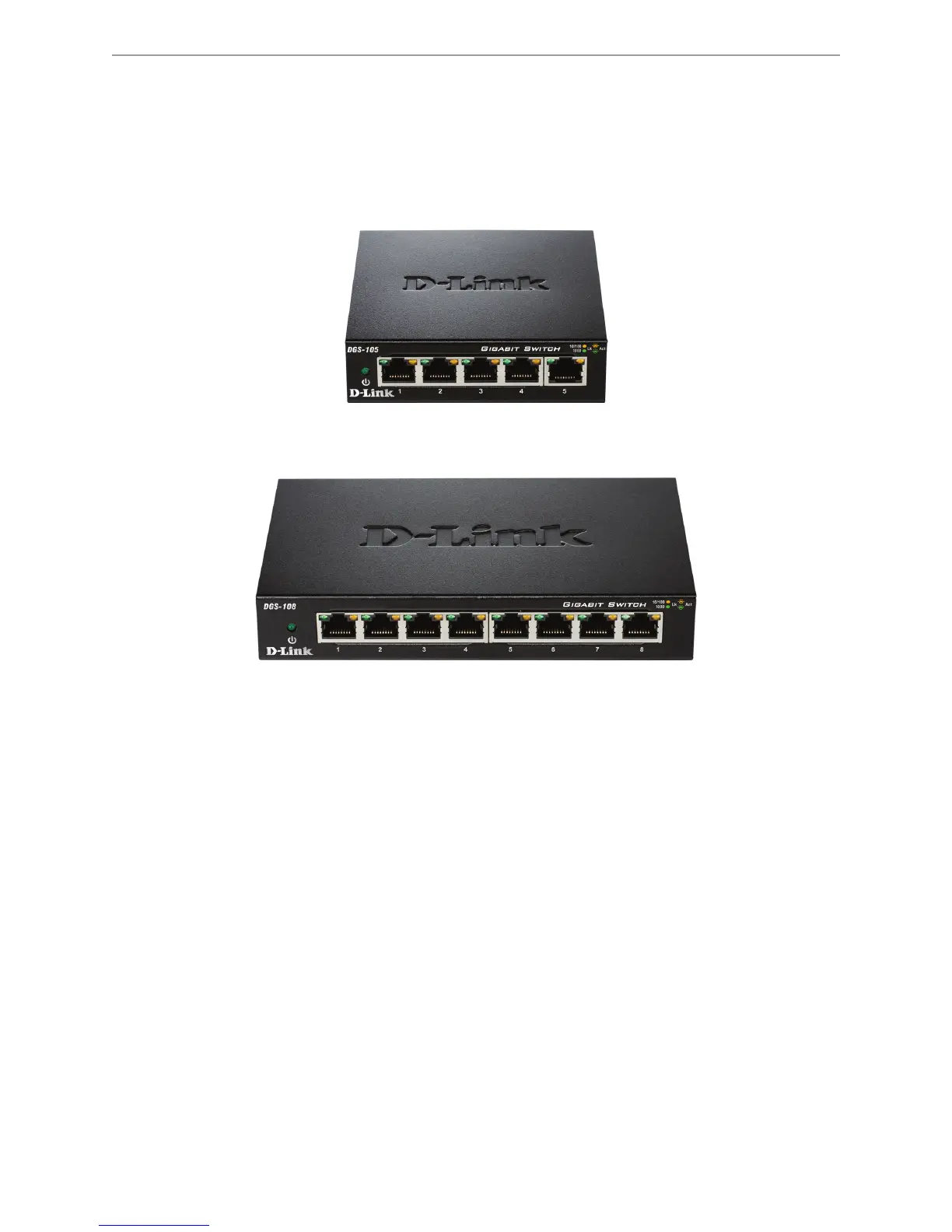

Figure 1-2. LED Indicators
Comprehensive LED indicators display the conditions of the Switch and status of the network. A description of these
LED indicators follows (see LED Indicators). The LED indicators of the Switch include Power and Link/Act , as
described below.
For DGS-105/108:
 Power Indicator
This green indicator light is on when the Switch is receiving power; otherwise, it is off.
 Link/Act
This LED indicator light is green when the port is successfully connected to an 1000Mbps device and will
blink as data is transmitted or received.
This LED indicator light is amber when the port is successfully connected to an 100Mbps or 10Mbps device
and will blink as data is transmitted or received.

D-Link DGS-108 Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	0.128 MB
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Dimensions (WxDxH)	162 x 102 x 28 mm
Connectivity technology	Wired
10G support	-
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Switch type	Unmanaged
Switch layer	L2
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Product color	Black
Rack mounting	No
LED indicators	Link, Power, Y
Housing material	Metal
Input current	1 A
Input voltage	5 V
Power consumption (typical)	4.5 W
Mean time between failures (MTBF)	2053751 h
Heat dissipation	9.548 BTU/h
Storage temperature (T-T)	10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	440 g
