D-Link DGS-105/108 Gigabit Ethernet Switch
6
Rear Panel Description
DC Power Jack:
Power is supplied through an external AC power adapter. Check the technical specification section for information about
the AC power input voltage.

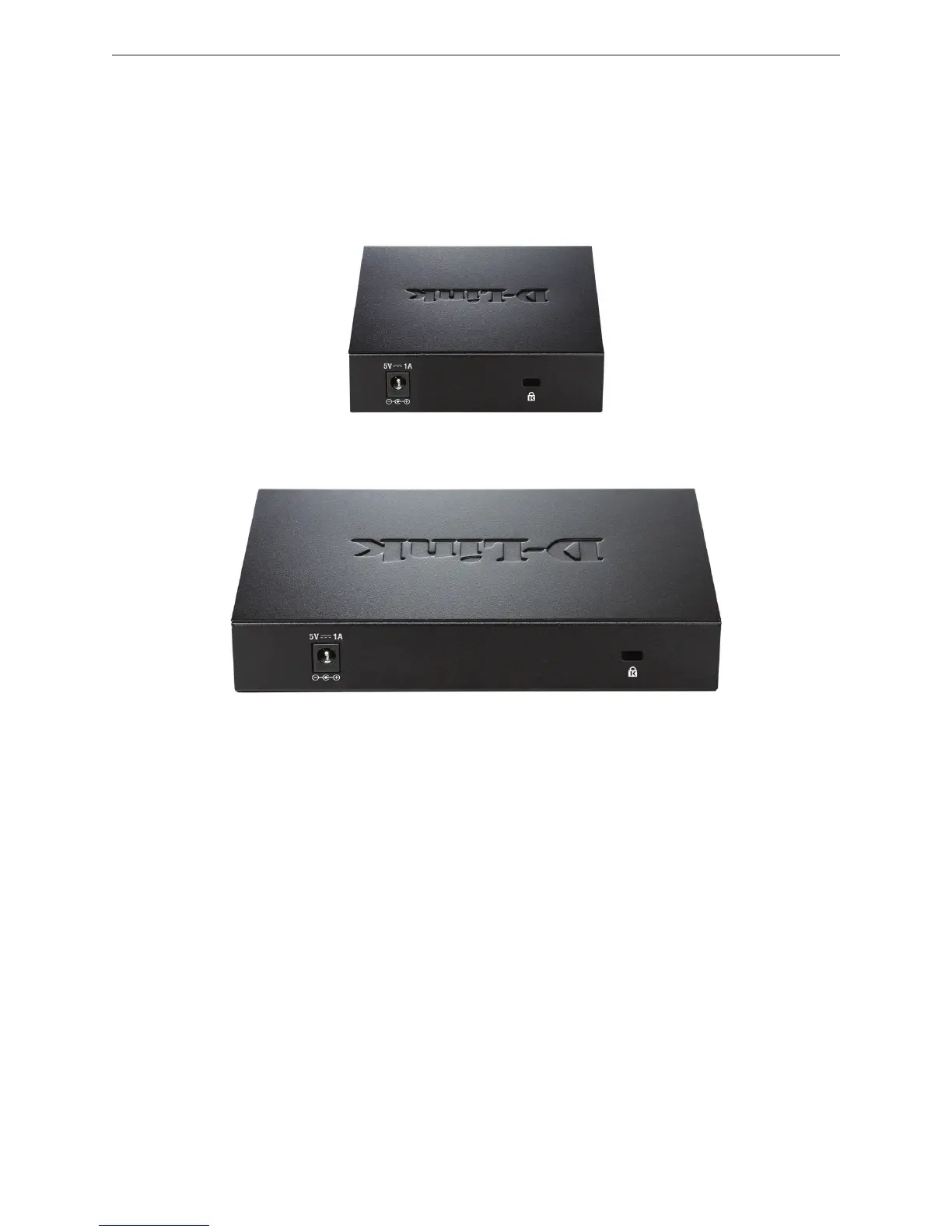

Figure 1-3. Rear panel view of the Switch
10/100/1000BASE-T Ports:
Five and eight (5/8) Gigabit Ethernet, Auto-Negotiating ports (10/100/1000Mbps)
Comprehensive LED indicators display the conditions of the Switch and status of the network.
