xStack DGS-3400 Series Fast Ethernet Switch
802.1p Default Priority
The Switch allows the assignment of a default 802.1p priority to each port on the Switch. In the Configuration folder open
the QoS folder and click 802.1p Default Priority, to view the screen shown below.

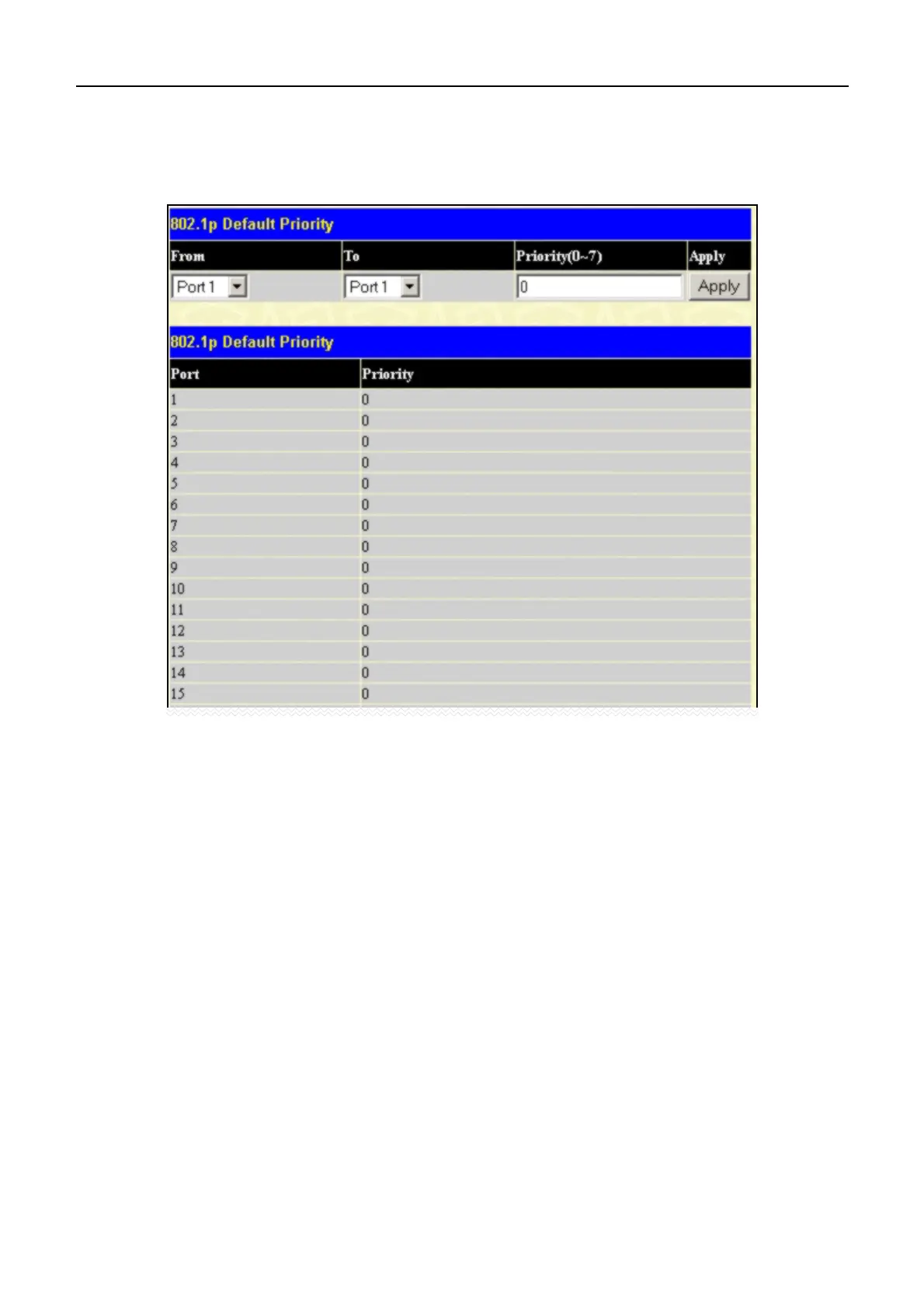

Figure 7- 38. 802.1p Default Priority window
This page allows the user to assign a default 802.1p priority to any given port on the Switch. The priority tags are
numbered from 0, the lowest priority, to 7, the highest priority. To implement a new default priority, choose a port range
by using the From and To pull-down menus and then insert a priority value, from 0-7 in the Priority field. Click Apply to
implement settings made.
118
