D-Link DGS-3427 - External Redundant Power System

xStack DGS-3400 Series Fast Ethernet Switch
External Redundant Power System
The Switch supports an external redundant power system. The diagrams below illustrate a proper RPS power connection to
the Switch. Please consult the documentation for information on power cabling and connectors and setup procedure.

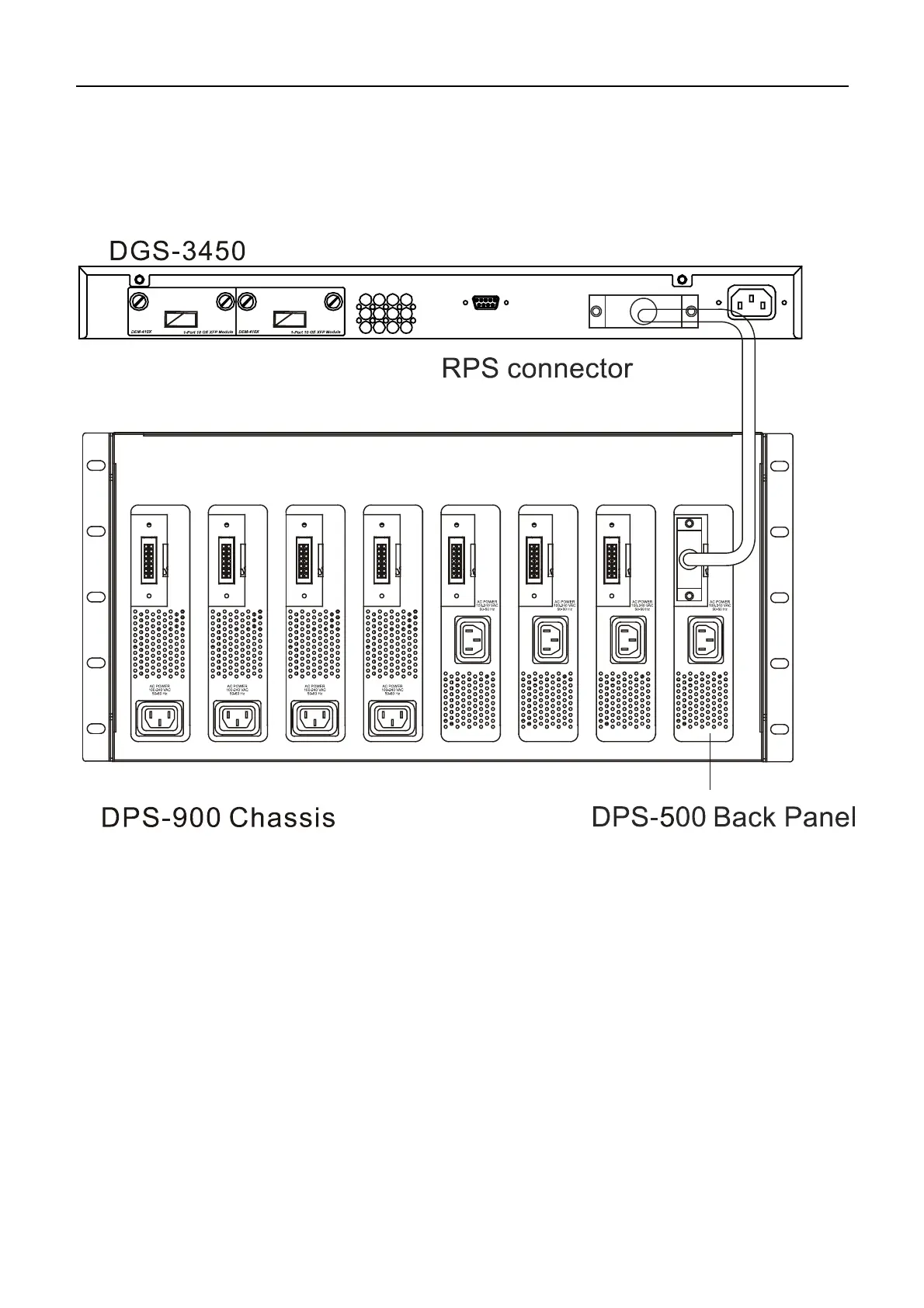

Figure 2- 20. The DGS-3450 with the DPS-500 chassis RPS
15
