xStack DGS-3400 Series Fast Ethernet Switch
Packet Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be viewed as
either a line graph or a table. Two windows are offered. To select a port to view these statistics for, first select the Switch
in the switch stack by using the Unit pull-down menu and then select the port by using the Port pull down menu. The user
may also use the real-time graphic of the Switch and/or switch stack at the top of the web page by simply clicking on a
port.

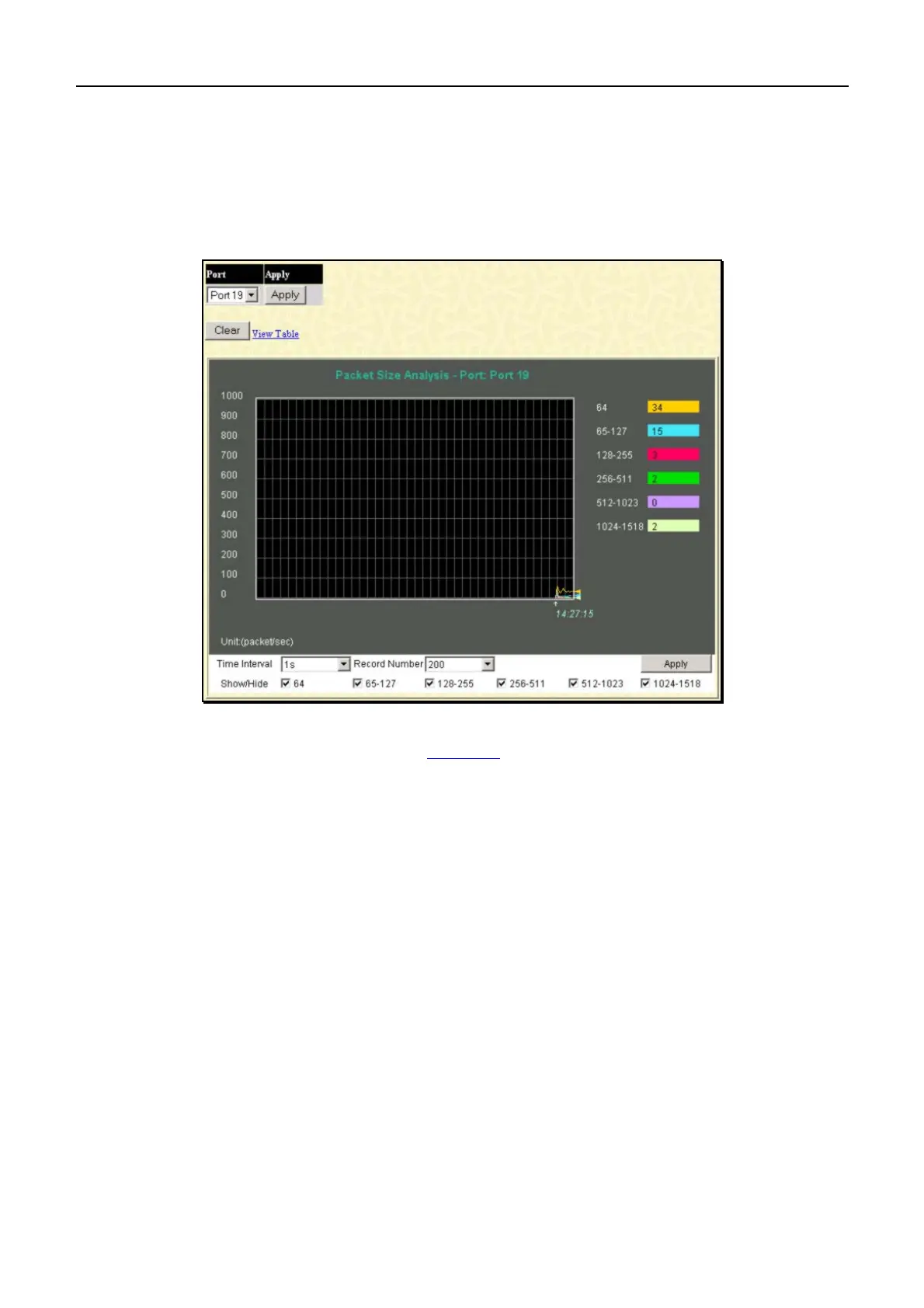

Figure 10- 9. Rx Size Analysis window (line graph)
To view the Packet Size Analysis Table, click the link View Table, which will show the following table:
