xStack DGS-3400 Series Fast Ethernet Switch

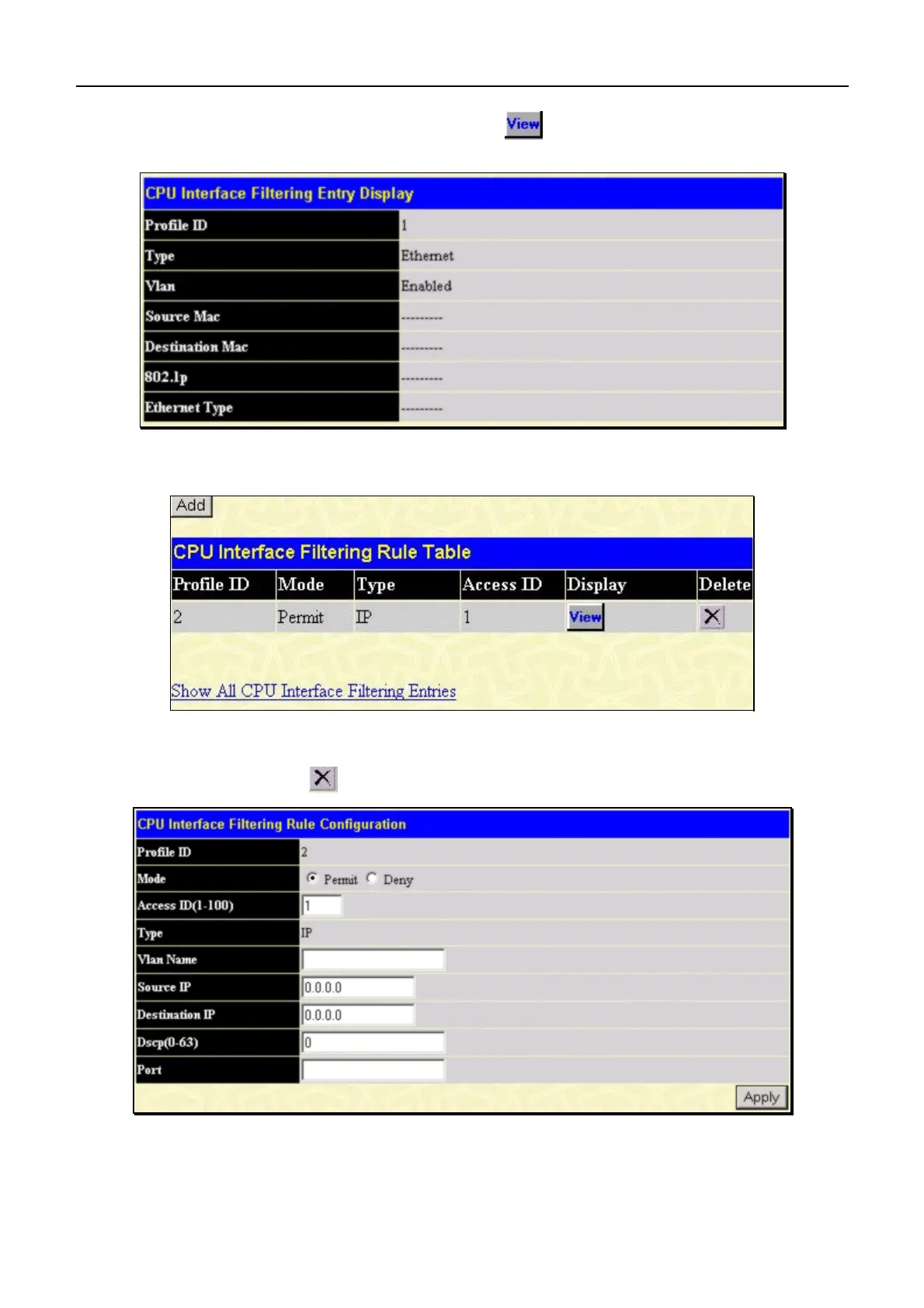

To view the settings of a previously correctly configured rule, click
in the Access Rule Table to view the following
screen:
Figure 7- 61. CPU Interface Filtering Rule Display – Ethernet
The following window is the CPU Interface Filtering Rule Table for IP.
Figure 7- 62. CPU Interface Filtering Rule Table – IP
To create a new rule set for an access profile click the Add button. A new window is displayed. To remove a previously
created rule, click the corresponding
button. The following window is used for the IP Rule configuration.
Figure 7- 63. CPU Interface Filtering Rule Configuration – IP
138
