D-Link DIR-869 - Schedule

98D-Link DIR-869 User Manual
Section 5 - Conguration - Extender Mode - Access Point

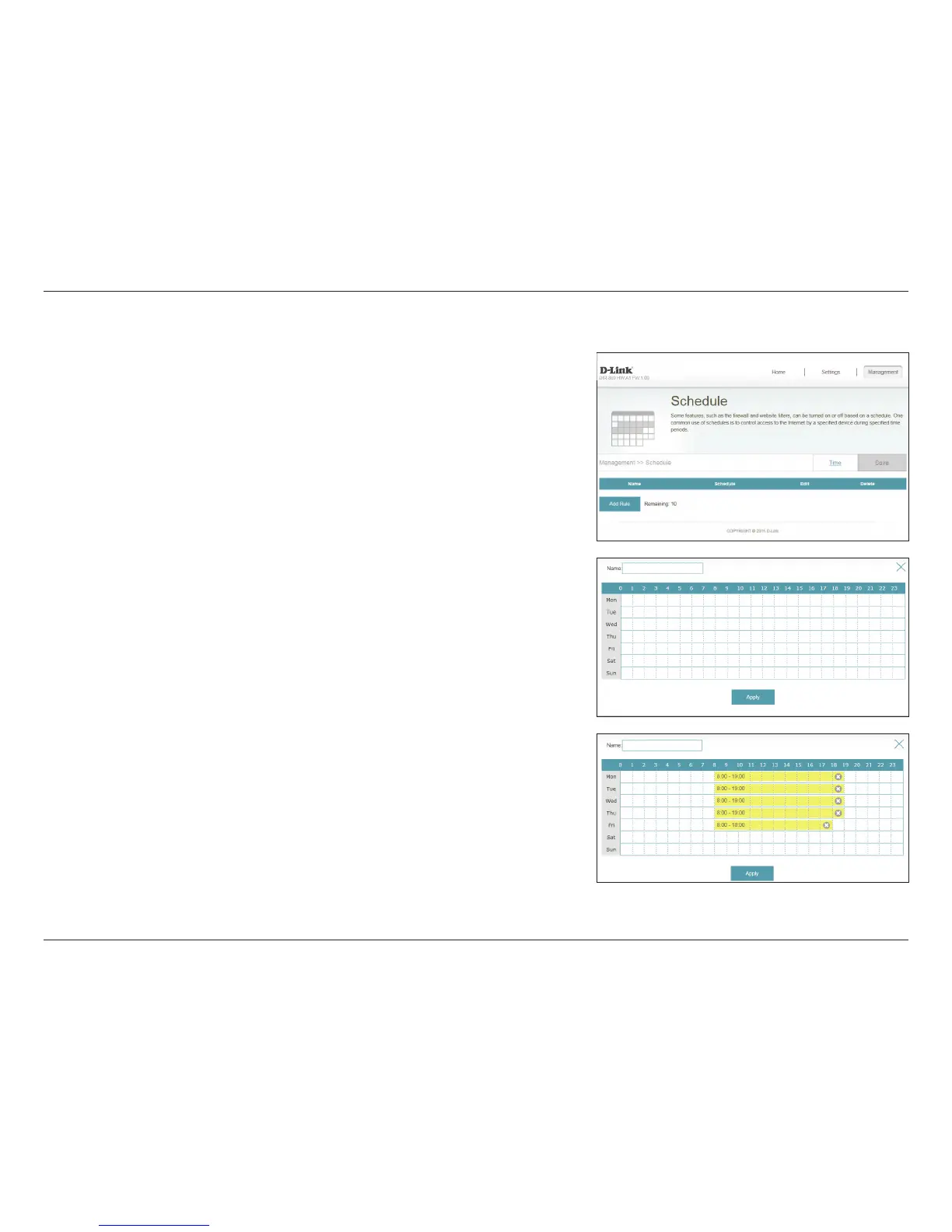

Some conguration rules can be set according to a pre-congured schedule.
To create, edit, or delete schedules, from the Time page click Schedule. To
return to the Time page, click Time.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rules button. Click Save when you are done. If
you edit or create a rule, the following screen will appear:
First, enter the name of your schedule in the Name eld.
Each box represents one hour, with the time at the top of each column. To add
a time period to the schedule, simply click on the start hour and drag to the
end hour. You can add multiple days to the schedule, but only one period per
day.
To remove a time period from the schedule, click on the cross icon.
Click Apply when you are done.
Schedule
