D-Link DSL-224 User Manual

Section 3 – Web Configuration
28

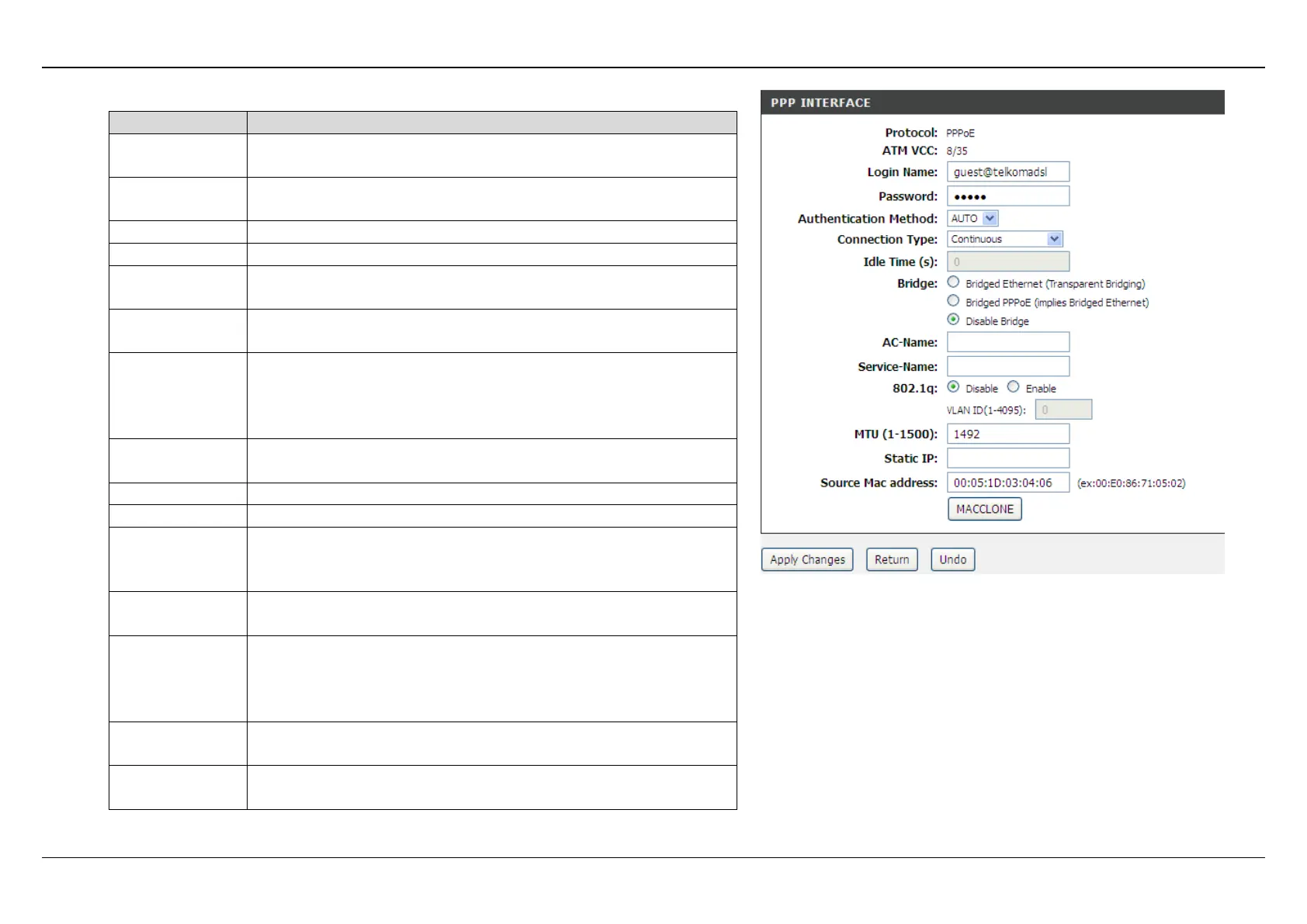

The following table describes the parameters and buttons of this page:
Field
Description
Protocol
It displays the protocol type used for this WAN
connection.
ATM VCC
The ATM virtual circuit connection assigned for this PPP
interface (VPI/VCI).
Login Name
The user name provided by your ISP.
Password
The password provided by your ISP.
Authentication
Method
You can choose AUTO, CHAP, or PAP.
Connection
Type
You can choose Continuous, Connect on Demand, or
Manual.
Idle Time (s)
If choose Connect on Demand, you need to enter the
idle timeout time. Within the preset minutes, if the router
does not detect t
he flow of the user continuously, the
router automatically disconnects the PPPoE connection.
Bridge
You can select Bridged Ethernet, Bridged PPPoE, or
Disable Bridge.
AC-Name
The accessed equipment type.
Service-Name
The service name.
802.1q
You can select Disable or Enable. After enable it, you
need to enter the VLAN ID. The value ranges from 1 to
4095.
MTU
Maximum Transmission Unit. Sometimes you must
modify this function to access network successfully.
Static IP
If this function is disabled, the modem obtains an IP
address assigned by an uplink equipment such as BAS,
through PPPoE dial-up. If this function is enabled
, the
modem uses this IP address as the WAN IP address.
Source Mac
address
The MAC address you want to clone.
MACCLONE
Click it to enable the MAC Clone function with the MAC
address that is configured.
