D-Link DSL-224 User Manual

Section 3 – Web Configuration
36

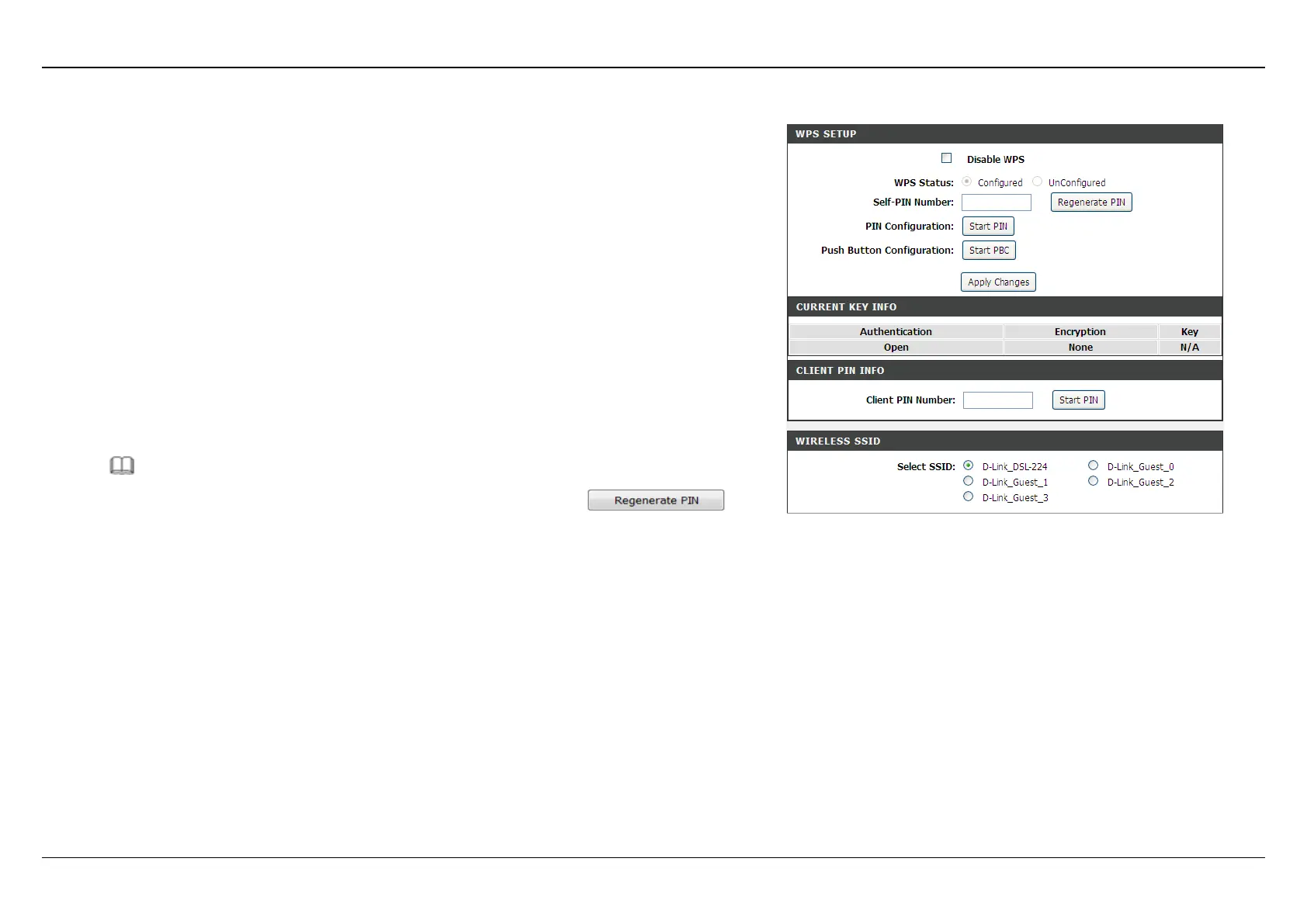

Choose SETUP > Wireless Setup> Wireless Security
. The page shown as the
figure appears on the right. The page shows how to set WPS.
There are 3 methods to realize wireless connection through WPS.
- PBC
Click the Start PBC button in this page. And then click WPS button on the client to
be connected within 2 minutes. The connection will be established.
- Based on the PIN of 224.
1) Do not select Disable WPS.
2) Click Start PIN button beside Pin Configuration.
3) Input the Device PIN (a random
code displayed in this page) in the WPS
application interface of the client to be connected. And then click PIN on the
client.
4) After setting, click Apply Changes.
Note:
If you want to change the PIN, click Regenerate PIN
button in this page.
The wireless SSID must select d-link.
- Based on the PIN of the client to be connected.
1) Do not select Disable WPS.
2) Find the PIN of the client to be connected. Input this PIN in the
Client PIN
Number in this page. And then click Start PIN button below.

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
