D-Link DSL-2640B User Manual

Web Configuration
D-Link DSL-2640B User Manual 80

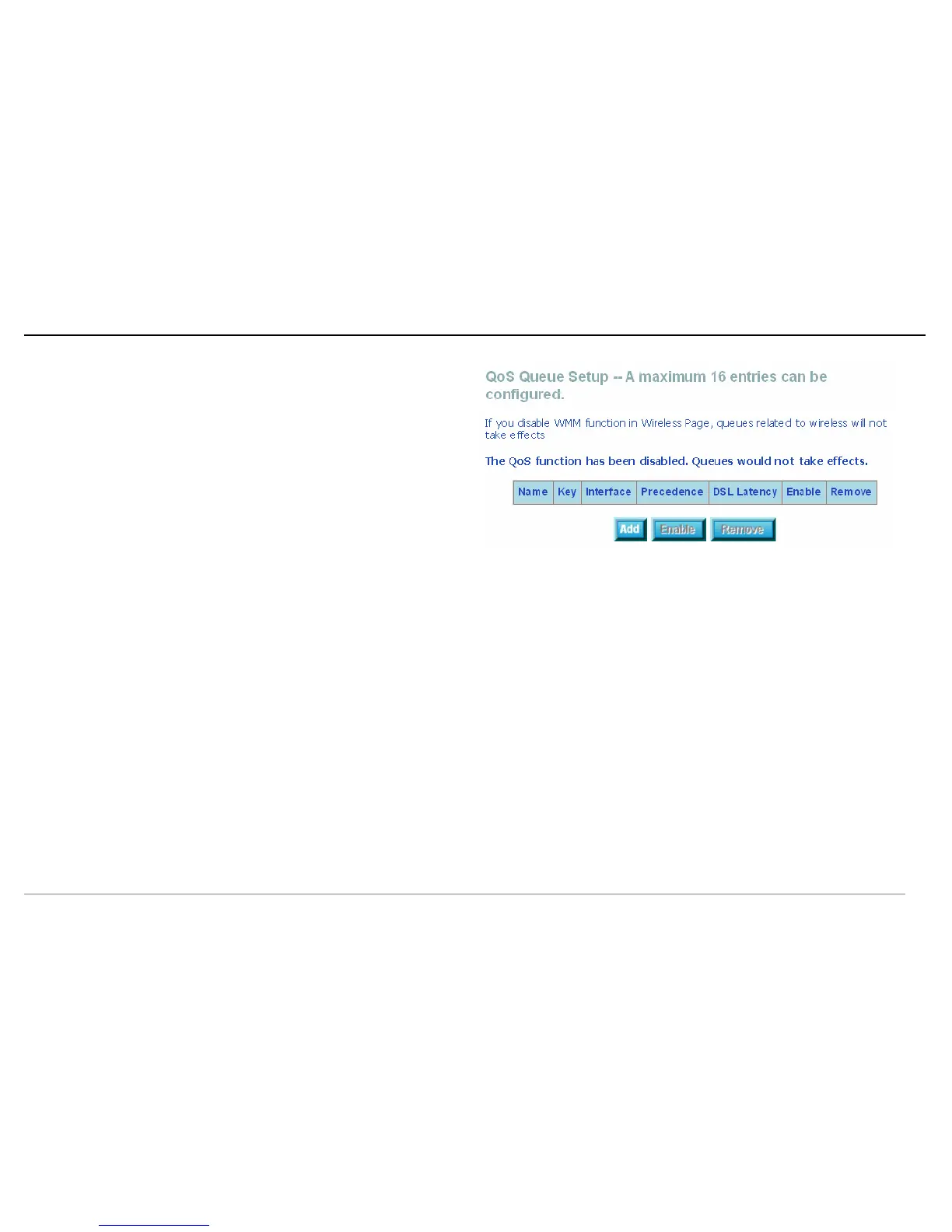

Queue Setup
In the QoS page, click Queue Setup, and the right page appears.
In this page, you can configure QoS queue. A maximum of 16 entries can be
configured.
QoS Queue Setup can allocate four queues. Each of the queues can be configured
for a precedence value (Lower integer values for precedence imply higher priority for
this queue relative to others). The queue entry configured is used by the classifier to
place ingress packets appropriately.
Note: Lower integer values for precedence imply higher priority for this queue
relative to others.

D-Link DSL-2640B Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz -60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b transfer rates	11, 5.5, 2, and 1 Mbps
IEEE 802.11g transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	four RJ-45 ports
Ethernet connection type	10/100BASE-T
