DSL-2640T ADSL 2+ Router User Guide
22

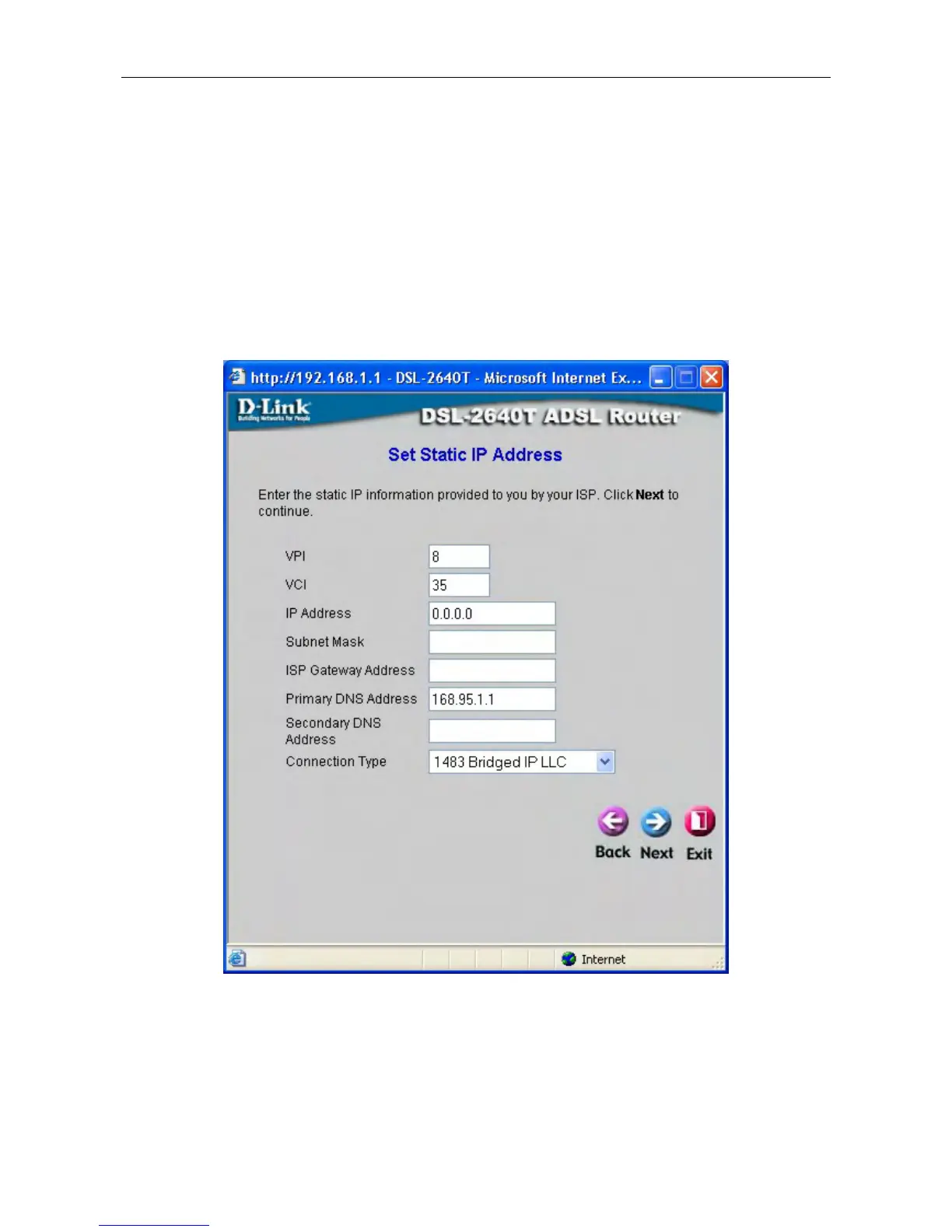

Using the Setup Wizard - For Static IP Address connections:
1. Select the specific Connection Type from the drop-down menu. The available Static IP Address connection
and encapsulation types are 1483 Bridged IP LLC, 1483 Bridged IP VC-Mux, 1483 Routed IP LLC, 1483
Routed IP VC-Mux and IPoA.
2. Change the IP Address, Subnet Mask, ISP Gateway Address, Primary DNS Address, and Secondary DNS
Server IP Address as instructed by your ISP. For IPoA connections it may also be necessary to change the
ARP Server Address. IPoA connection users who have not been given this information should leave the field
blank.
3. If you are instructed to change the VPI or VCI number, type in the correct setting in the available entry fields.
Most users will not need to change these settings. The Internet connection cannot function if these values are
incorrect.
4. Click Next to go to the next window and complete the Setup Wizard.
