DSL-2640T ADSL 2+ Router User Guide
54
To add a new virtual connection:
1. Select the new PVC to configure from the pull-down menu.
2. Enter the values for the VPI and VCI given to you by your service provider.
3. To activate the VC, select Enabled from the Virtual Circuit pull-down menu.
4. Configure the WAN Settings and Connection Type as desired.
5. To save the new settings, click the Save and Reboot button (Tools > System). The new connection will
activate upon restarting.

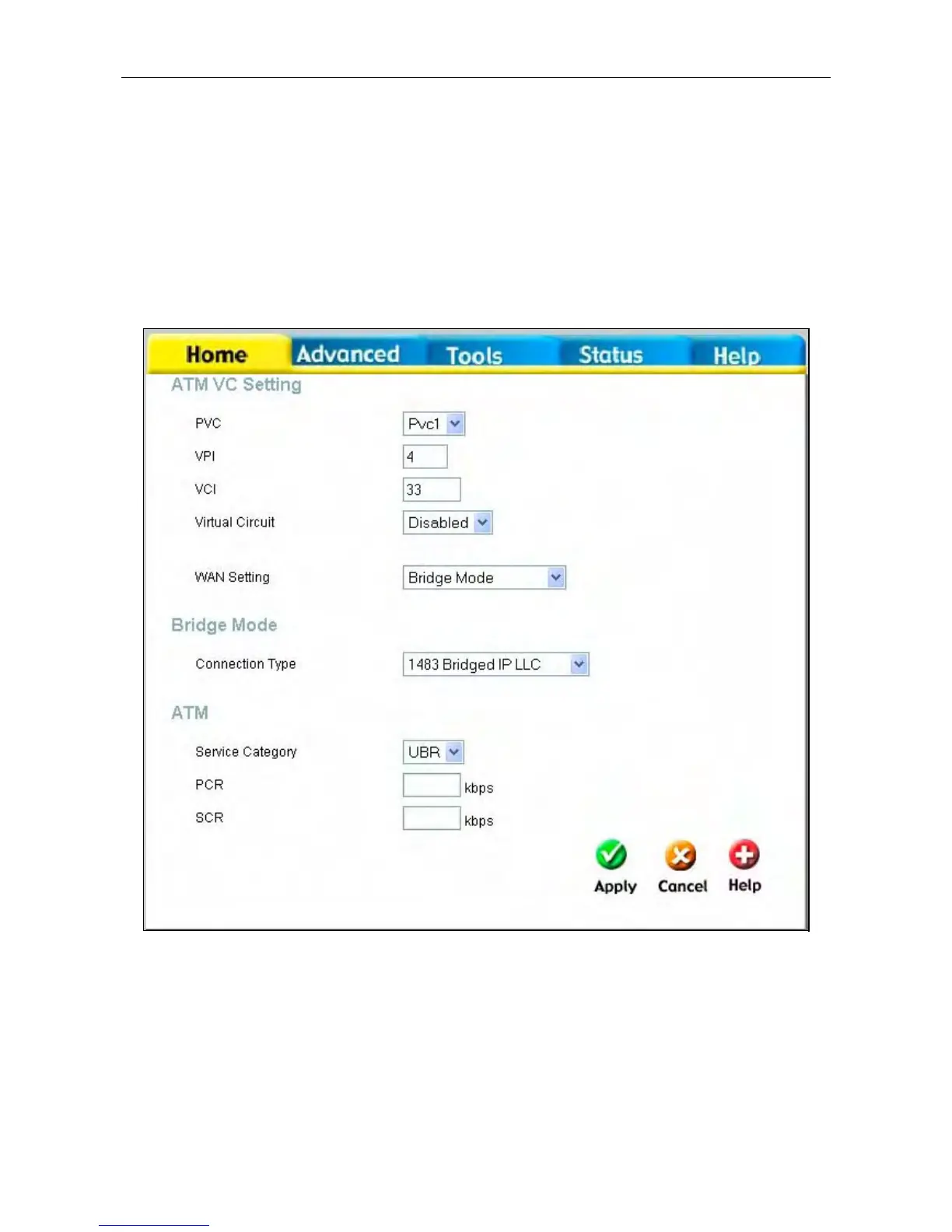

In the example below, a new PVC (Pvc1) has been added using the WAN Settings window. The connection is setup as a
bridged connection.
Configure new PVC
The new PVC that appears can be configured separately in other windows availailable in the Advanced directory.
