DSL-2640T ADSL 2+ Router User Guide
79

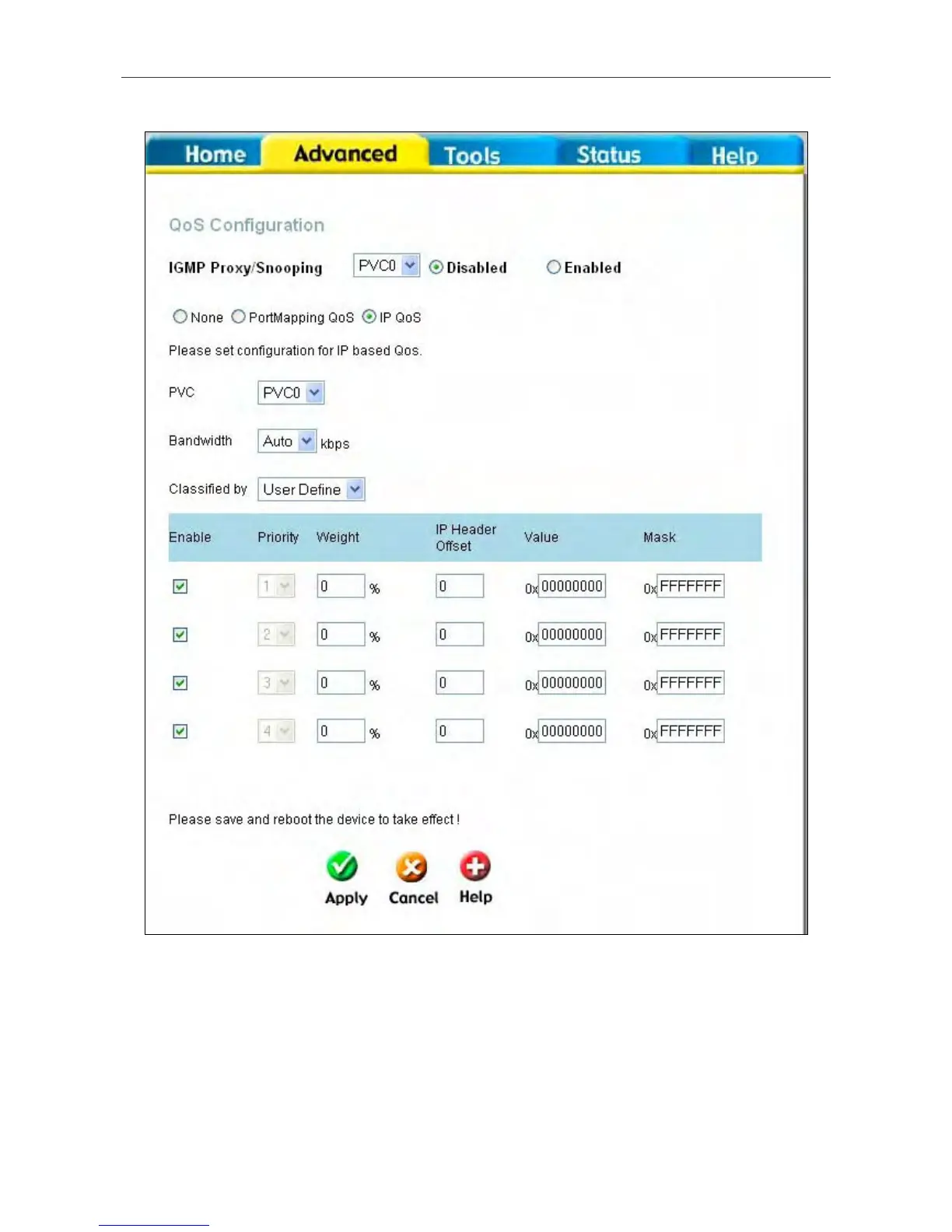

If you select User Define in the Classified by drop-down menu, the following window appears.
QoS Configuration window IP QoS for User Define
On this window, you can assign a weight, on a percentage basis, to each of the four priority queues. In addition, you can
specify the number of bytes from the beginning of a given packet’s IP header to set a pointer. From this pointer, you can
then specify a Value (in hexadecimal) and a Mask (in hexadecimal) for the router to match when examining packets
crossing the specified priority queue. It is recommended that you not enter a QoS scheme of this type unless you fully
understand Offsets, pointers, masks, and IP headers or you are instructed to do so by your ISP.
