D-Link DSL-2877AL User Manual

D-Link DSL-2877AL Dual Band Wireless AC750 VDSL/ADSL2+ Modem Router User Manual
Section 3 - Web User Interface Configuration
Page 81

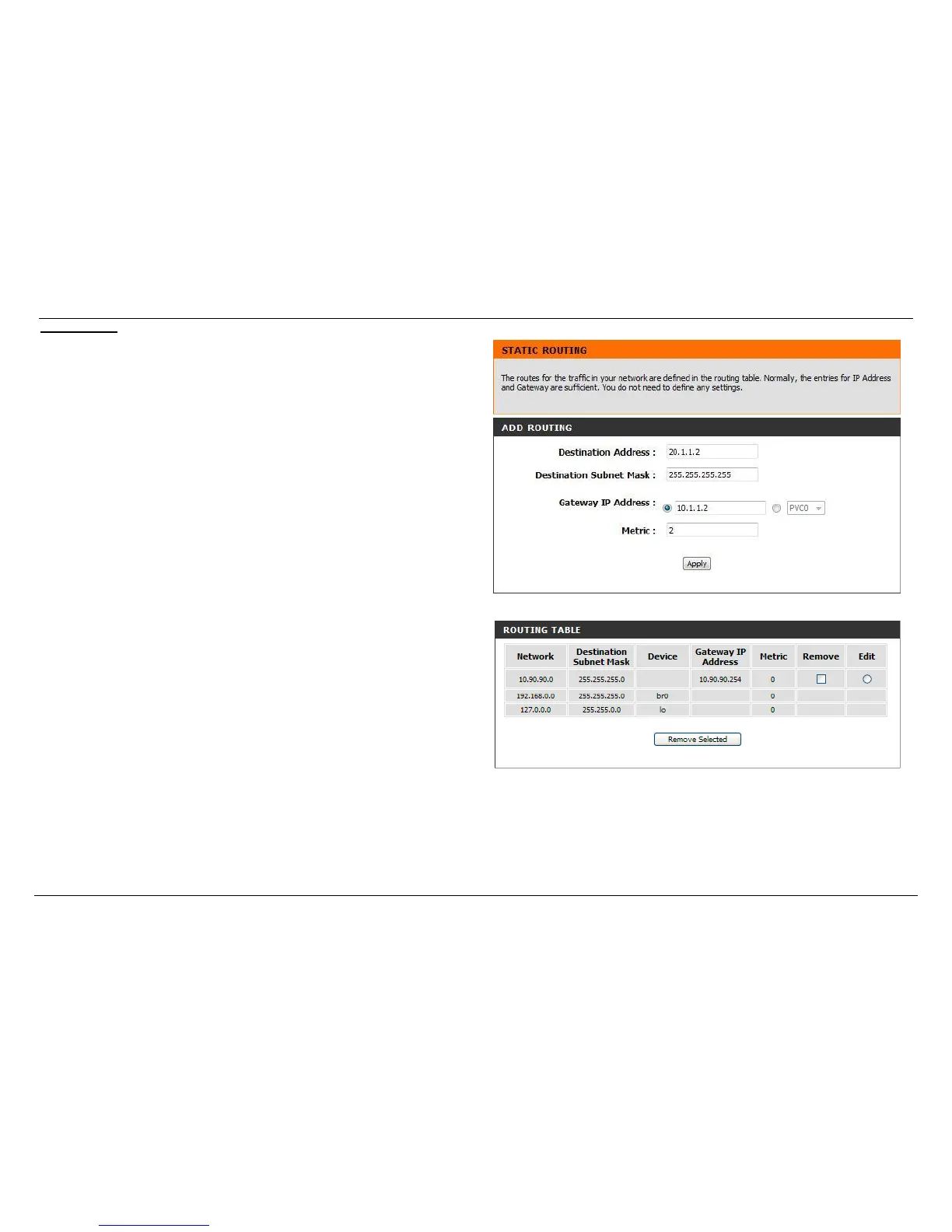

Static Routing
In this section, the following parameters can be configured:
Destination Address: Input the Destination Address.
Destination Subnet Mask: Input Destination Subnet Mask.
Gateway IP Address: Click either radio Button to input a gateway address or select
from a drop down menu.
Metric: Input routing metric here.
In this section a list of static route entries will be displayed.
Click the Add button to add a new entry.
Select the Remove option and click the Remove button to remove the specific entry.
