D-Link DSL-2878 - Static IP

32D-Link DSL-2878 User Manual
Section 4 - Conguration
Static IP
Select Static IP if your ISP provides you with a specic IP address.

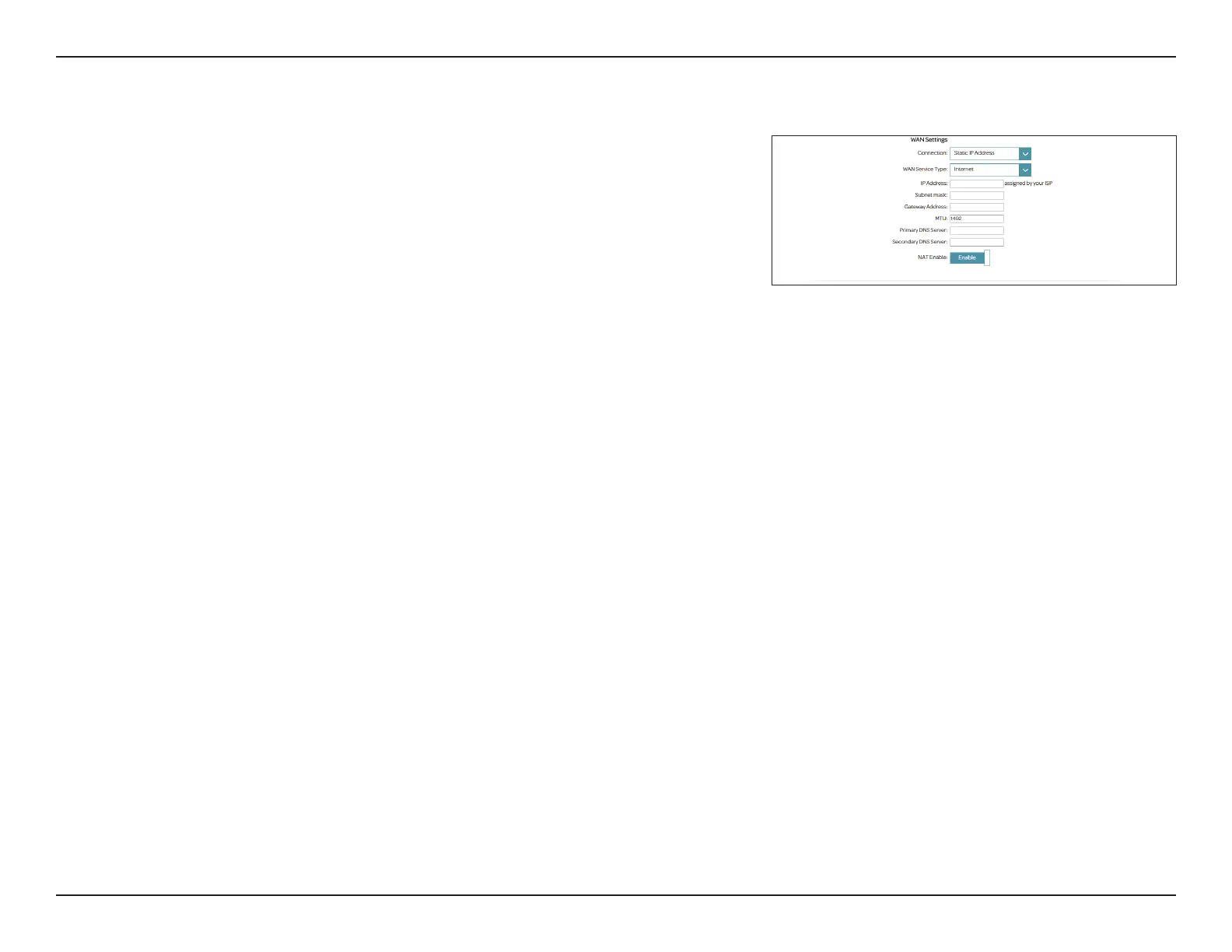

WAN Settings
Connection: Select Static IP Address.
WAN Service Type: Select a service type from the list. As of this writing, only Internet is
supported for manual conguration.
Connection Type: Select Bridged IP LLC, Bridged IP VC-MUX, Routed IP LLC (IPoA),
or Routed IP VC-Mux (IPoA). The IPoA options are available for ADSL
connections only.
IP Address: Enter the IP address provided by your ISP.
Subnet Mask: Enter the subnet mask provided by your ISP.
Default Gateway: Enter the default gateway address provided by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
NAT Enable: Enable or disable Network Address Translation.
Click Save when you are done.
