D-Link DSL-3782 User Manual

15D-Link DSL-3782 User Manual
Section 3 - Getting Started

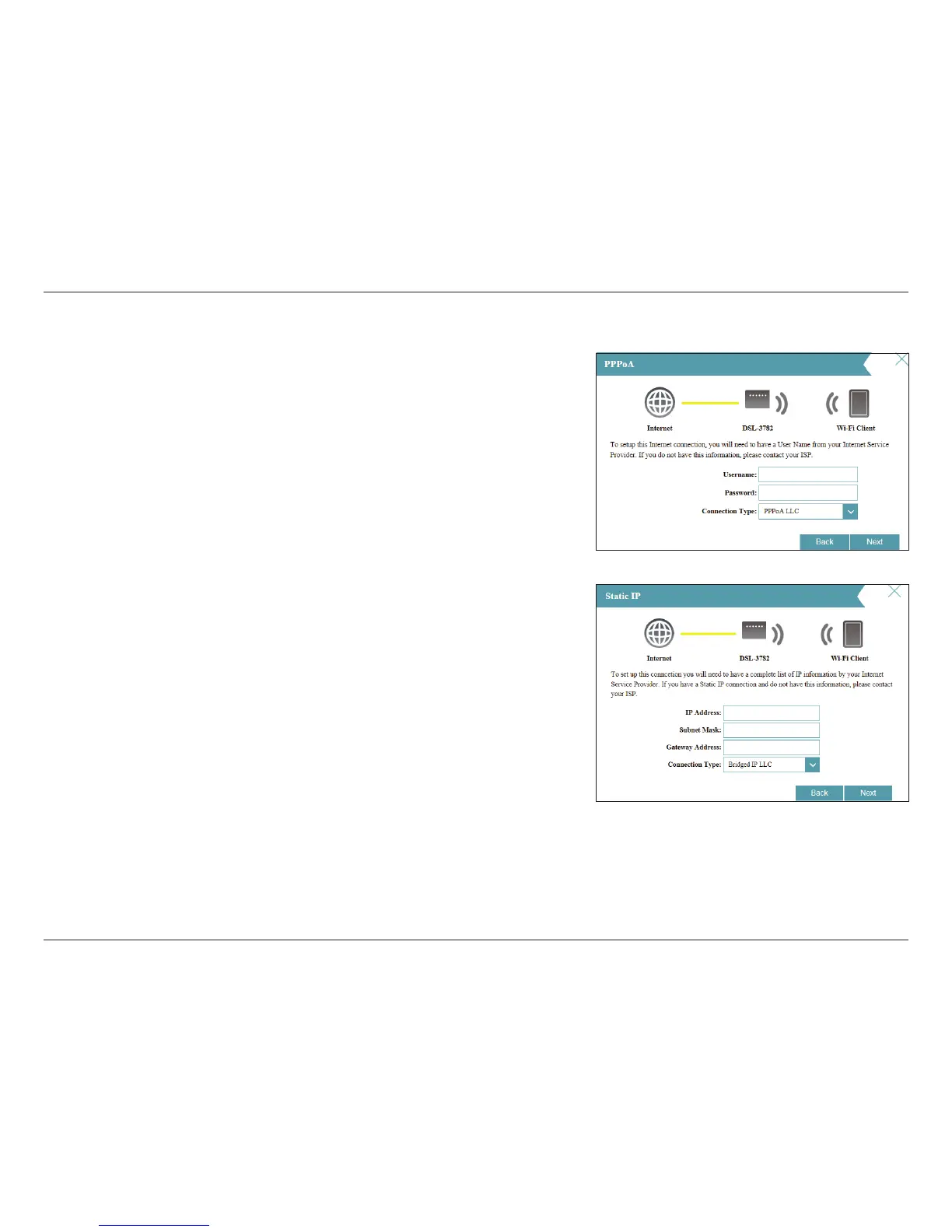

If you selected Static IP, enter the IP address, subnet mask, gateway address
provided by your ISP, and choose the Connection Type if asked. Click Next to
continue.
Setup Wizard (continued)
If the router detected or you selected PPPoA, enter your PPPoA username and
password, choose the Connection Type if asked, and click Next to continue.
Note: Make sure to remove your PPPoA software from your computer. The software
is no longer needed and will not work through a router.
PPPoA connection type is only available for ADSL connections.

D-Link DSL-3782 Specifications

General

LED indicators	DSL, LAN, Power, WAN
DC-in jack	Yes
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	4
Certification	CE DLNA Wi-Fi Certified LVD BT OpenReach SIN498
USB connector type	Micro-USB
Security algorithms	WPA, WPA2
Antenna type	Internal
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Package depth	262 mm
Package width	155 mm
Package height	77 mm
Package weight	430 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1847 mm
Pallet gross weight (air)	384260 g
Quantity per pallet (air)	480 pc(s)
Shipping (inner) case width	278 mm
Shipping (inner) case height	403 mm
Shipping (inner) case length	327 mm
Shipping (inner) case weight	7620 g
Shipping (inner) case net weight	4300 g
Number of cartons per pallet (air)	48 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	113.05 g
Dimensions (WxDxH)	210 x 150 x 30.75 mm
