Unified Services Router User Manual
68

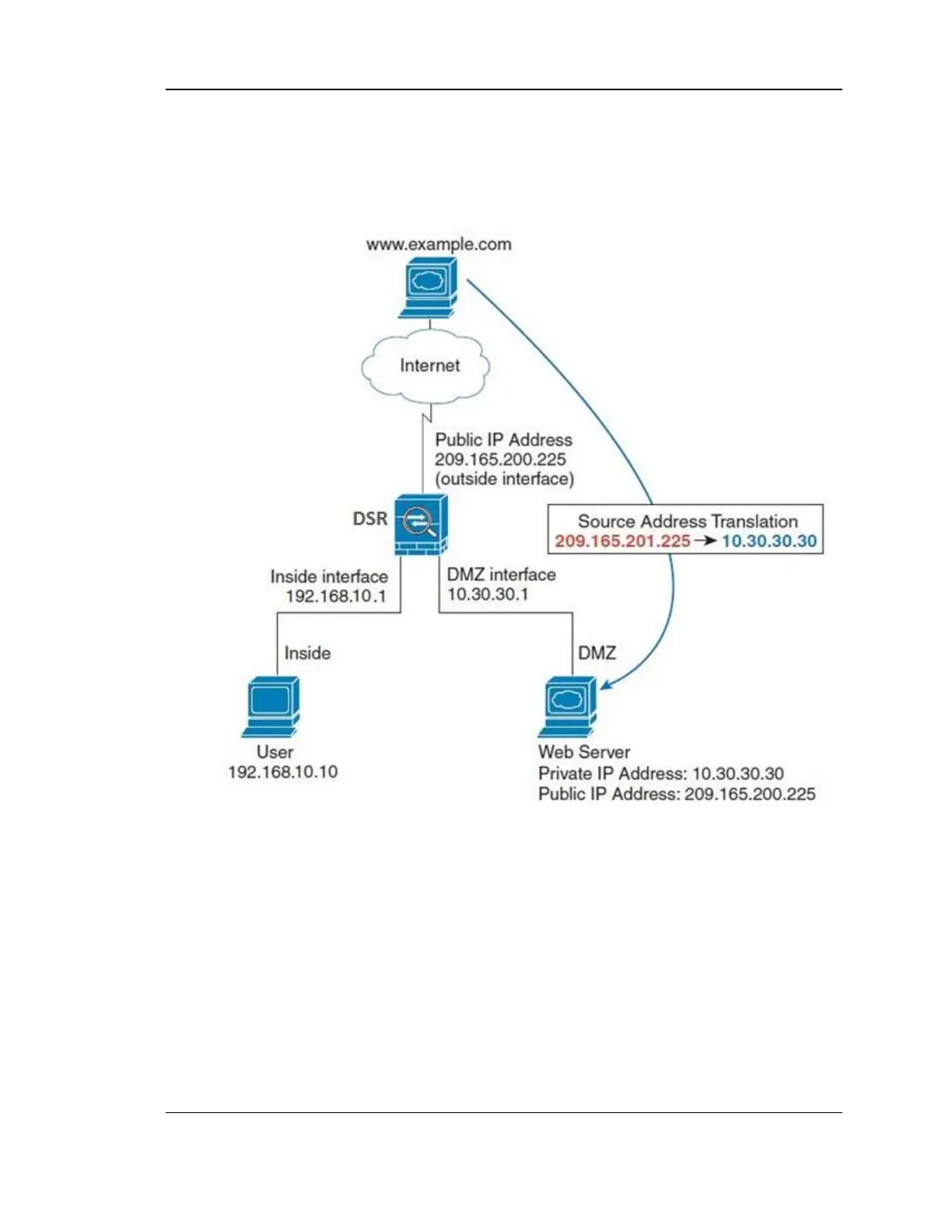

Figure 40: Example where an outbound SNAT rule is used to map an
external IP address (209.156.200.225) to a private DMZ IP
address (10.30.30.30)
