Unified Services Router User Manual
87

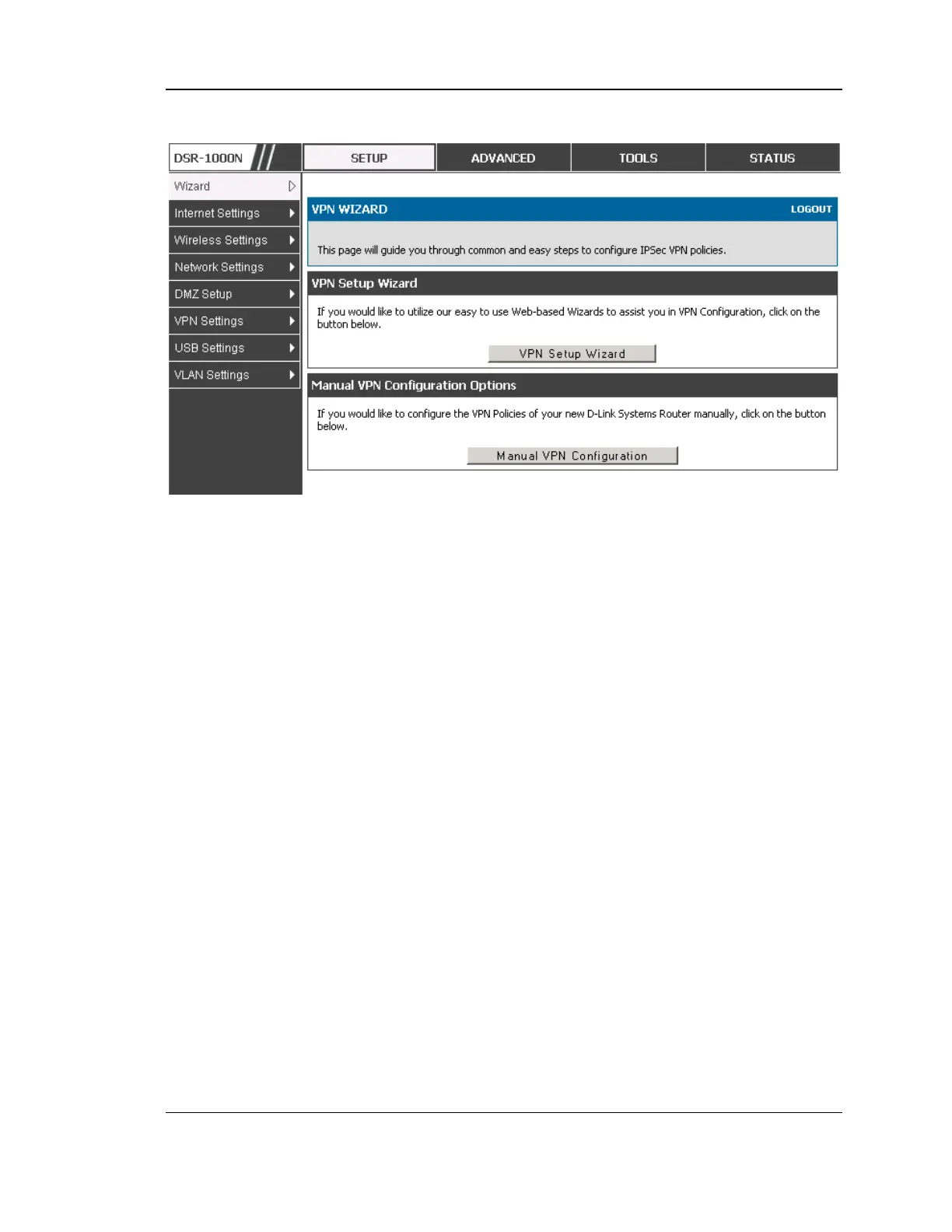

Figure 55: VPN Wizard launch screen
To easily establish a VPN tunnel using VPN Wizard, follow the steps below:
1. Select the VPN tunnel type to create
The tunnel can either be a gateway to gateway connection (site-to-site) or a tunnel
to a host on the internet (remote access).
Set the Connection Name and pre-shared key: the connection name is used for
management, and the pre-shared key will be required on the VPN client or gateway
to establish the tunnel
Determine the local gateway for this tunnel; if there is more than 1 WAN
configured the tunnel can be configured for either of the gateways.
2. Configure Remote and Local WAN address for the tunnel endpoints
Remote Gateway Type: identify the remote endpoint of the tunnel by FQDN or
static IP address
Remote WAN IP address / FQDN: This field is enabled only if the peer you are
trying to connect to is a Gateway. For VPN Clients, this IP address or Internet
Name is determined when a connection request is received from a client.
Local Gateway Type: identify this router‘s endpoint of the tunnel by FQDN or
static IP address
