3

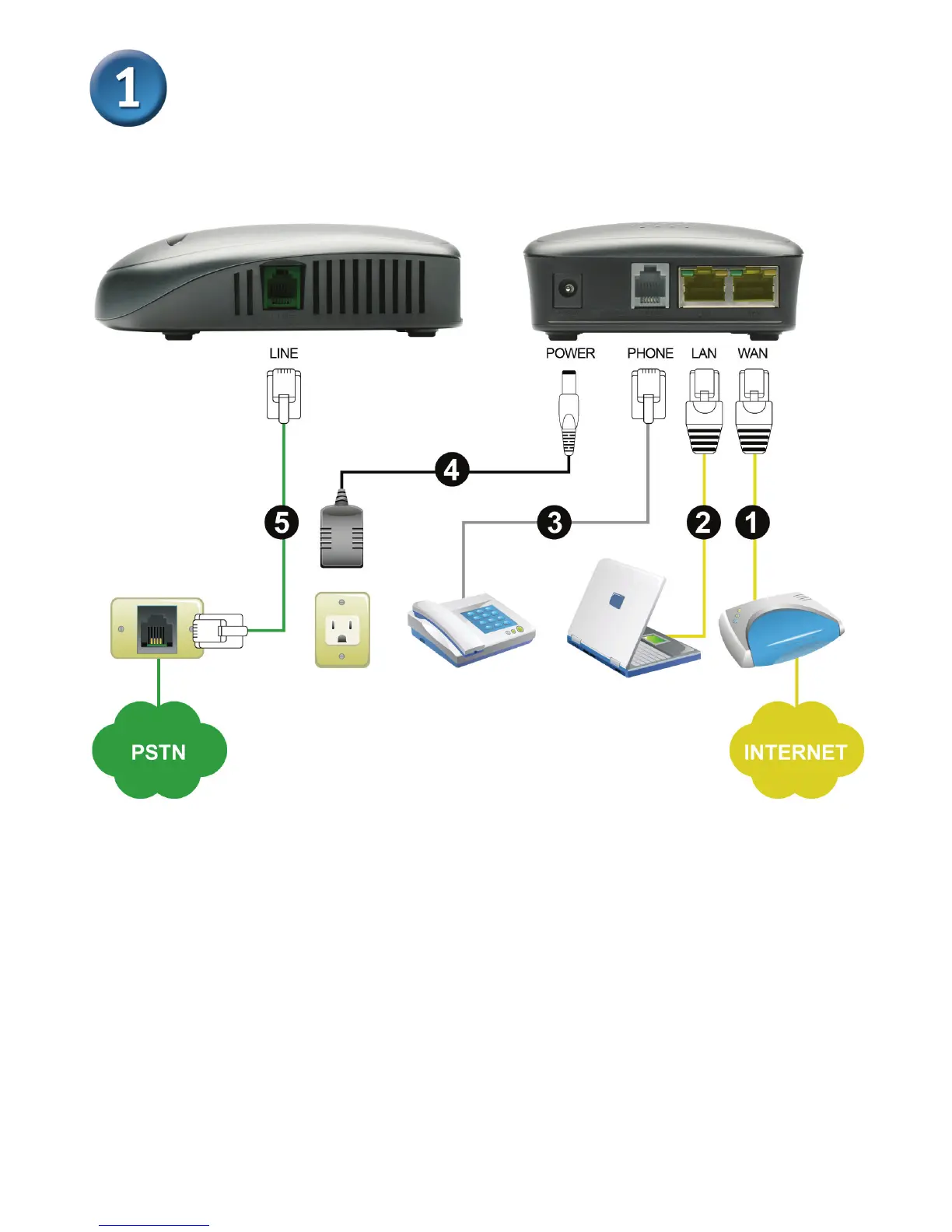

Rear Panel
1. WAN: Connect to your broadband modem using an Ethernet cable.
2. LAN: Connect to your Ethernet enabled computers using Ethernet
cabling.
3. Phone : Connect to your phones using standard phone cabling (RJ-
11).
4. Power Receptor: Receptor for the provided power adapter.
5. Line: Connect to your original telephone line on the wall jack with
RJ-11 cable.
Hardware Overview (continued)
