D-Link DWR-920 User Manual

26D-Link DWR-920 User Manual
Section 3 - Conguration

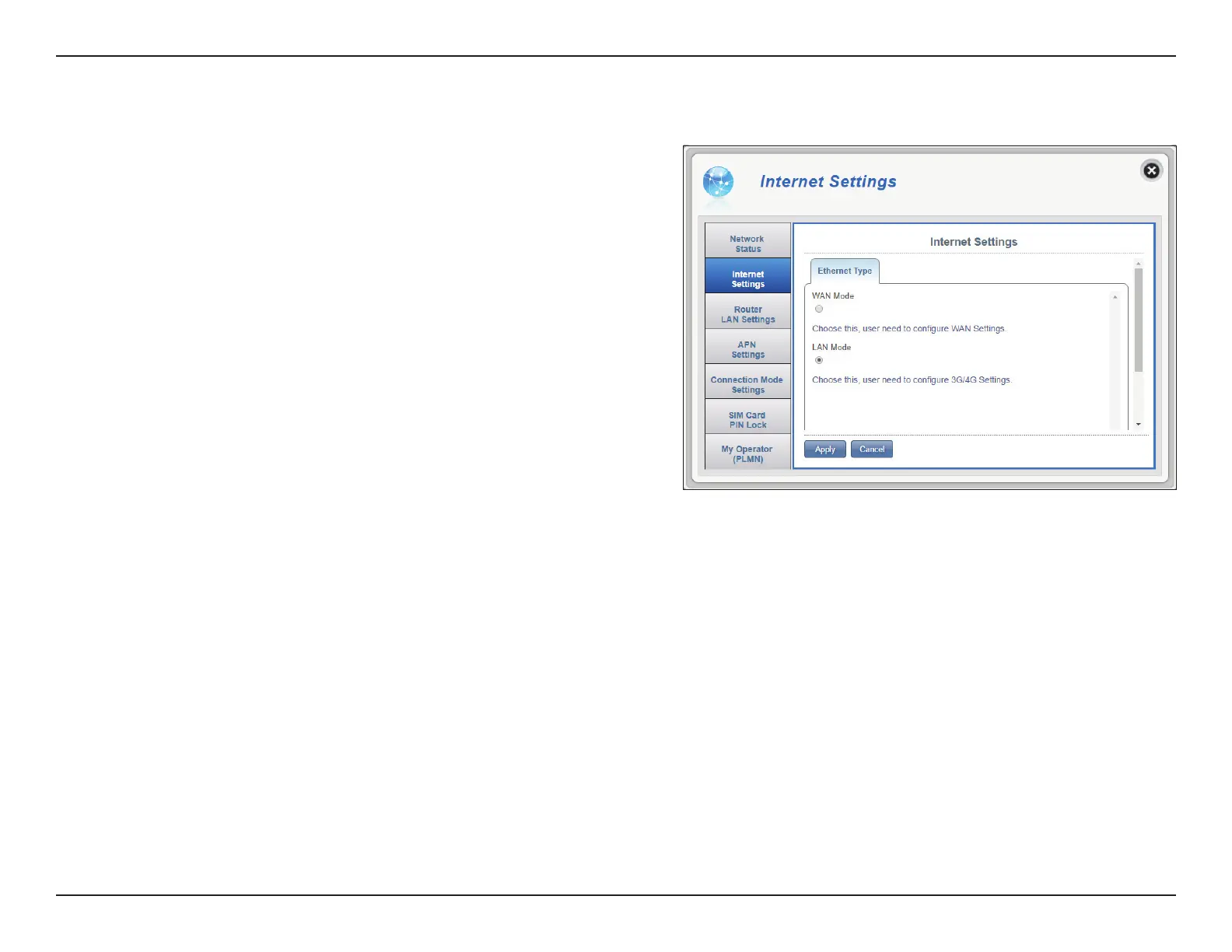

Internet Settings
On this page you can congure your Ethernet connection. This would
be used if you have an Internet connection from a DSL, Cable, or
other external source. Note that by default, the 4G connection is
used as your primary connection. If you are not sure which settings
to use, please contact your Internet Service Provider (ISP).
For more information, refer to Internet Settings on page 21.

D-Link DWR-920 Specifications

General

Ethernet WAN	-
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	- Mbit/s
WLAN data transfer rate (first band)	2400 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3i, IEEE 802.3u
Ethernet LAN interface type	Ethernet
4G standard	LTE
2G standards	EDGE, GPRS, GSM
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
GSM bands supported	850, 900, 1800, 1900 MHz
UMTS bands supported	850, 900, 2100 MHz
USB port	No
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Product type	Portable router
Product color	Black
LED indicators	LAN, Power, WLAN
Certification	CE
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	43.5 mm
Width	121 mm
Height	117.3 mm
Weight	205 g
