D-Link DWR-978 User Manual

7D-Link DWR-978 User Manual
Section 3 - Conguration
Conguration

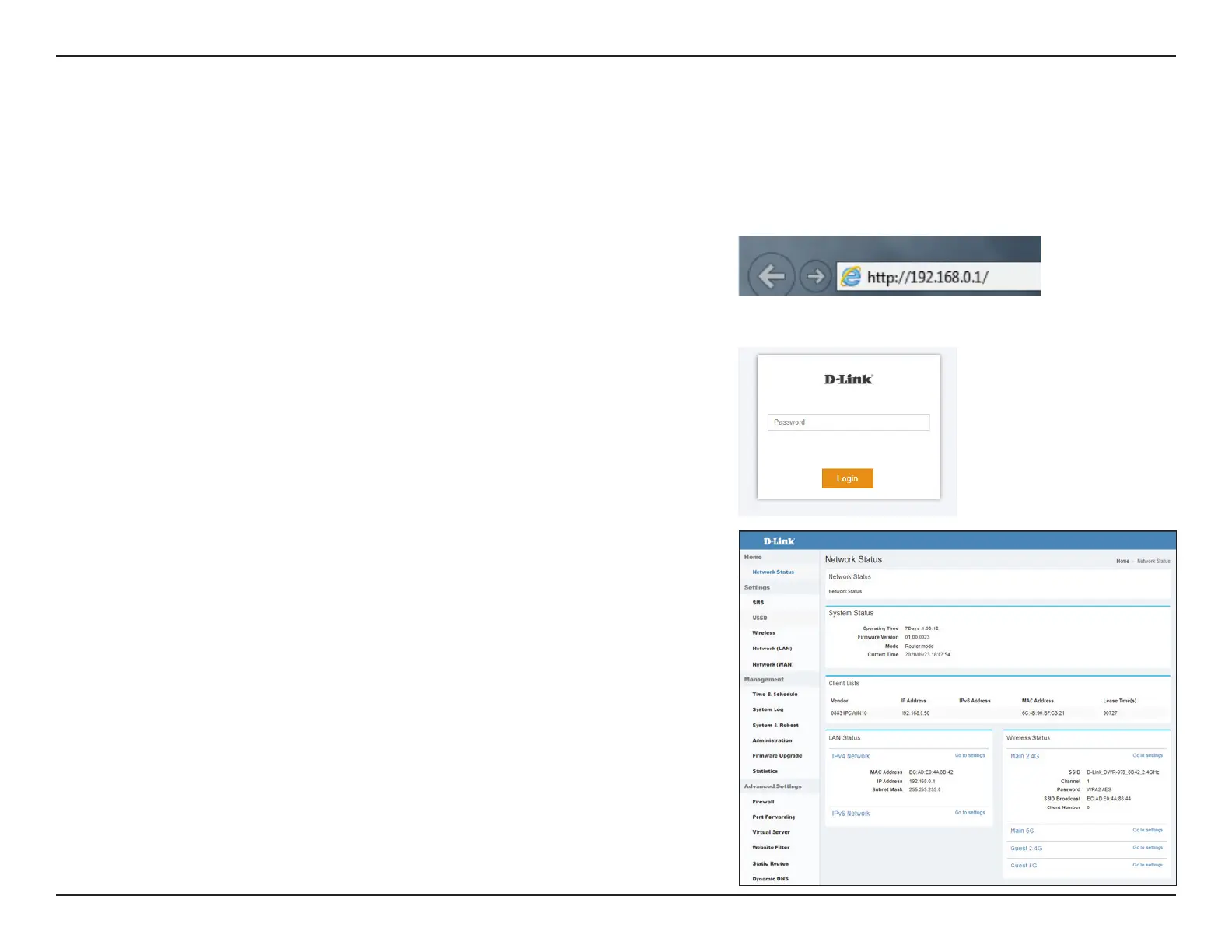

To access the conguration utility, open a web browser such as Internet Explorer and
enter the address of the router (192.168.0.1 by default).
To log in to the conguration utility, the default password is left blank.
Note: If you get a Page Cannot be Displayed error, please refer to the Troubleshooting
section for assistance.
Once you have successfully logged in, you will see the Home page. On this page
you can view information about your Internet connection, the wireless/LAN status,
and system information.
At the top of the page is a menu. Clicking on one of these icons will take you to the
appropriate conguration section.
Getting Started

D-Link DWR-978 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
3G/4G USB modem compatibility	-
4G standard	LTE-FDD
3G standards	WCDMA
SIM card type	NanoSIM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	LTE, Power, WAN, WLAN
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA3
Antennas quantity	8
Output current	1 A
Output voltage	12 V
Power source type	AC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Mobile operating systems supported	Android, iOS
Number of products included	1 pc(s)
Sustainability certificates	CE, RoHS

Weight and Dimensions

Depth	245 mm
Width	234.5 mm
Height	55.25 mm
Weight	920 g
