D-Link DWR-978 User Manual

43D-Link DWR-978 User Manual
Section 3 - Conguration

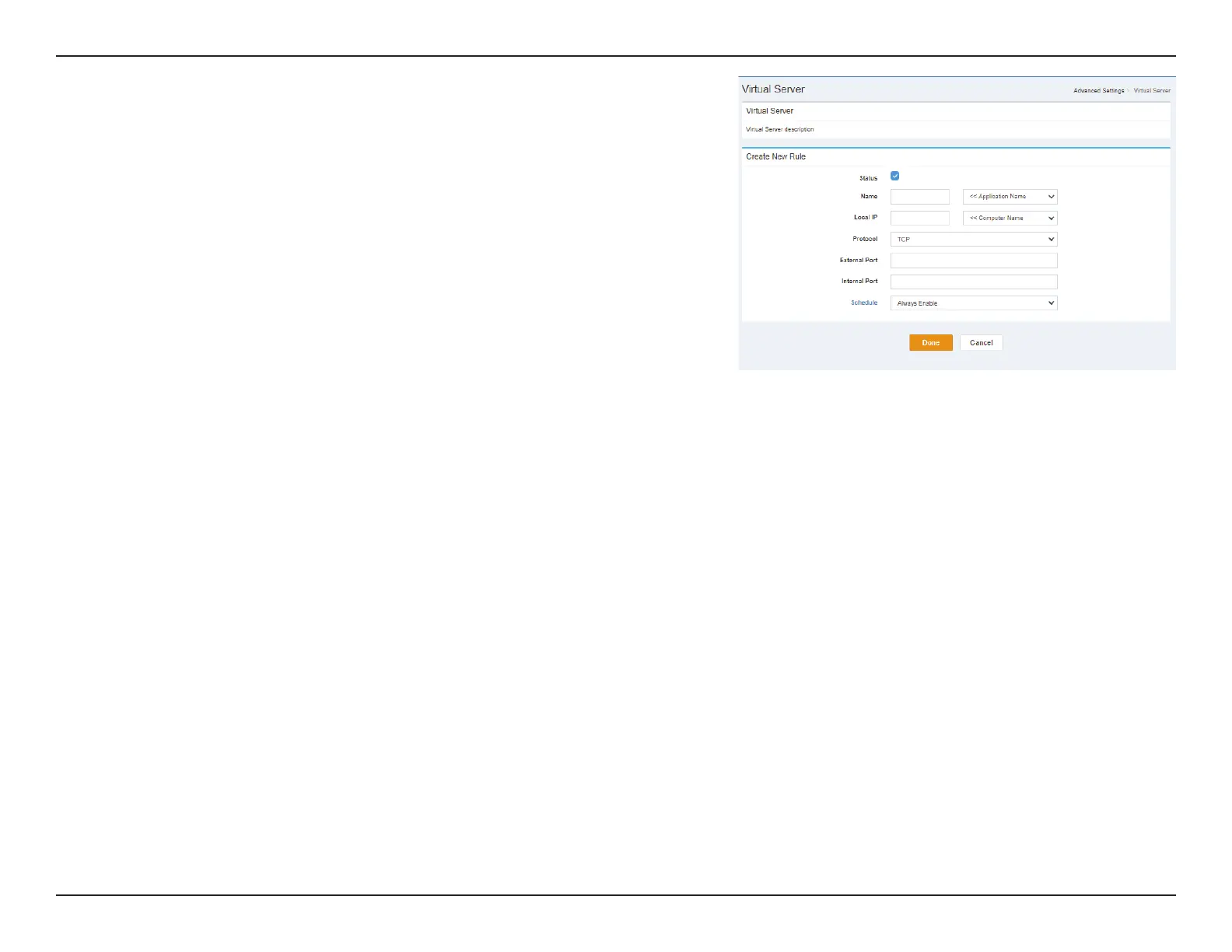

Create New Rule
Status: Indicates the status of the New Rule
Name Indicates the name and specify which Application Name of the
New Rule
Local IP: Indicates the Local IP and specify which Computer Name of the
New Rule
Protocol: Indicates the Protocol type of the New Rule.
External Port: Indicates the External Port of the New Rule.
Internal Port: Indicates the Internal Port of the New Rule.
Schedule: Indicates whether the Wi-Fi network is part of a schedule. Click
on Schedule to access the schedule menu “Schedule” on page
29.
Click Done to save your settings, or Cancel to revert to your previous settings.

D-Link DWR-978 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
3G/4G USB modem compatibility	-
4G standard	LTE-FDD
3G standards	WCDMA
SIM card type	NanoSIM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	LTE, Power, WAN, WLAN
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA3
Antennas quantity	8
Output current	1 A
Output voltage	12 V
Power source type	AC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Mobile operating systems supported	Android, iOS
Number of products included	1 pc(s)
Sustainability certificates	CE, RoHS

Weight and Dimensions

Depth	245 mm
Width	234.5 mm
Height	55.25 mm
Weight	920 g
