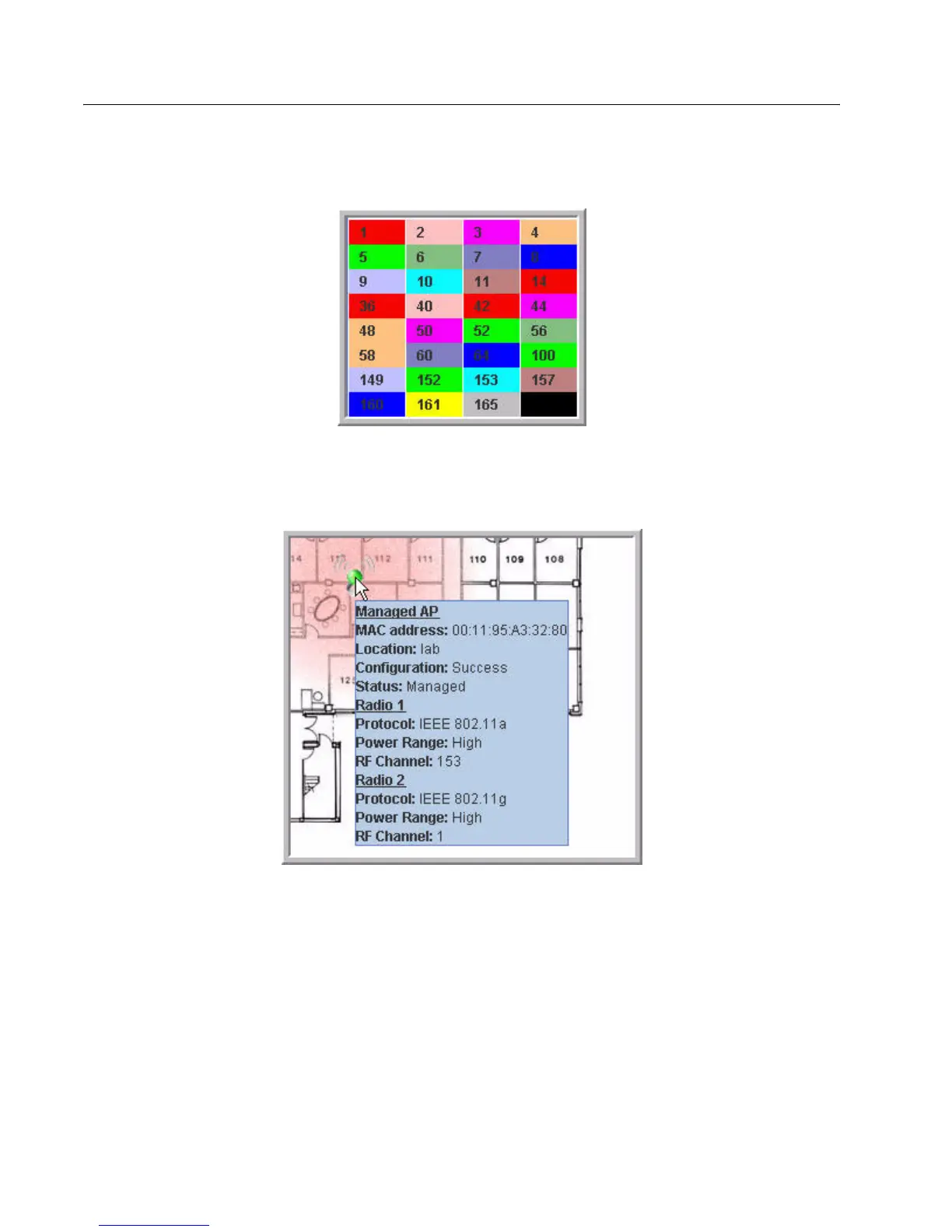

The Channel Color legend maps the color of the power display image to the channel that the image color represents. The
color corresponds to the channel that the radio is using for transmission. The available channels depend on the mode and
country of operation.
Figure 106: Channel Colors
To view the channel that a radio is using, you can mouse-over the managed AP to activate the tool tip. The tool tip displays
general information about the AP, including the channel that each radio uses.
Figure 107: Tool Tip for Radio Managed AP Information
You can also right-click the object to access a variety of information, which the next section describes.
