Table 21 describes the Channel Plan History fields.
Click Refresh to update the screen with the most current information.
Initiating Manual Channel Plan Assignments
If you specify Manual as the Channel Plan Mode on the Configuration tab, the Manual Channel Plan page allows you to
initiate the Channel Plan algorithm.
To manually run the channel plan adjustment feature, select the radio to update the channels on (802.11a or 802.11g) and
click the Start button.

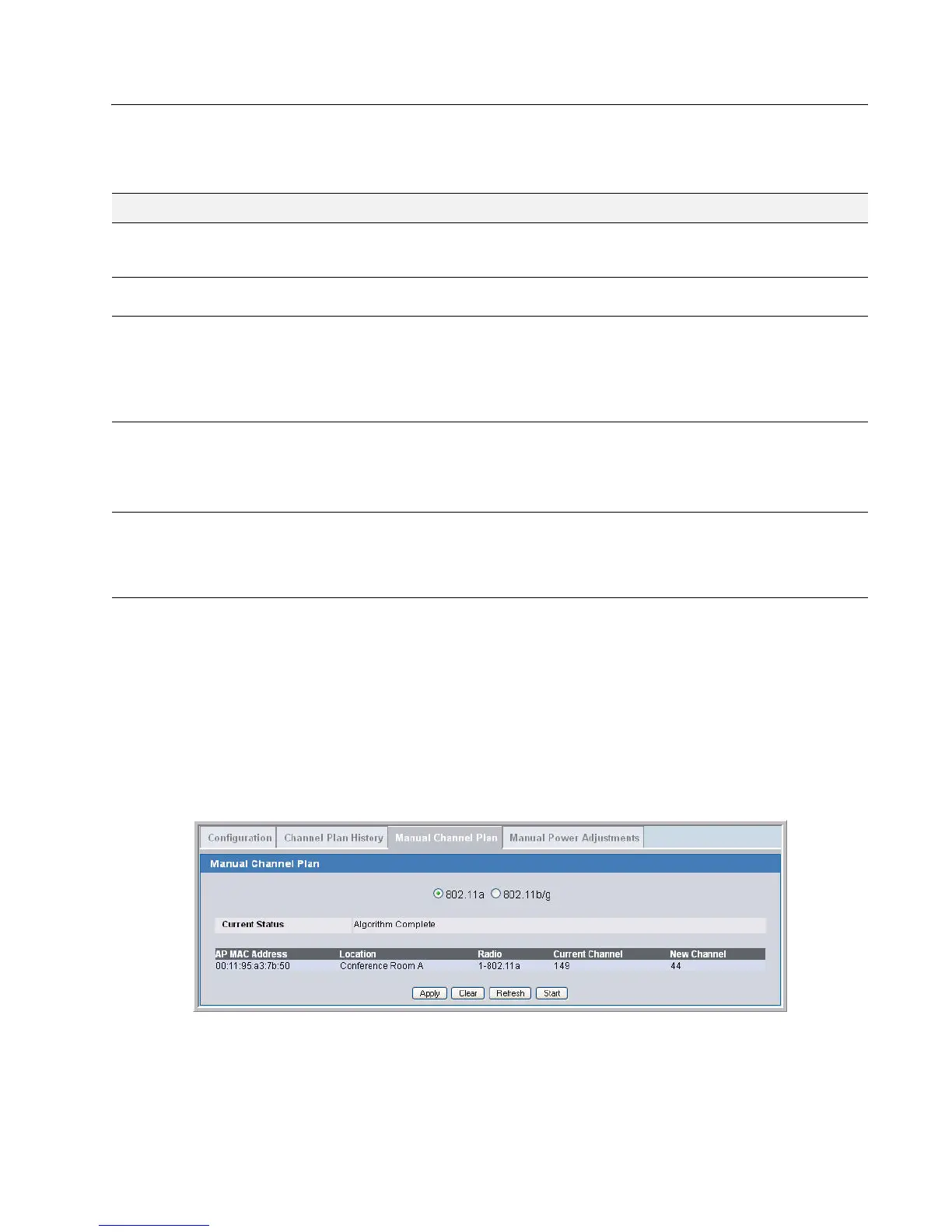

Figure 52: Manual Channel Plan
Table 21: Channel Plan History
Field Description
802.11a
802.11g
The 802.11a and 802.11g radios use different channel plans, so the switch tracks the channel
history separately for each radio. The channel information that displays on the page is only for
the radio you select.
Operational Status This field shows whether the switch is using the automatic channel adjustment algorithm on
the D-Link Access Point radios.
Last Iteration The number in this field indicates the last iteration of channel plan adjustments. The APs that
received a channel adjustment in previous iterations cannot be assigned new channels in the
next iteration to prevent the same APs from being changed time after time.
On the AP Management > RF Management > Configuration tab, you can set the history
depth to control the maximum number of iterations stored and displayed in the channel plan
history.
Last Algorithm Time Shows the date and time when the channel plan algorithm last ran.
NOTE: To set the system time on the switch, you must use SNTP, which is disabled by
default. From the Web interface, you configure the SNTP client and server information from
the LAN > Administration > SNTP Settings page. From the CLI, use the sntp commands
in Global Config mode.
AP MAC Address
Location
Radio
Iteration
Channel
This table displays the channel assigned to an AP in an iteration of the channel plan.
