365D-Link ShareCenter DNS-345 User Manual
Section 5 - Knowledge Base
RAID 10
RAID 10 bands RAID 1 and RAID 0 together. This is benecial because it oers two types of security, striping and mirroring. RAID
10 requires a minimum of 4 disks. Data are mirrored across all 4 disks at the block level oering good redundancy. Data is also
striped as blocks across the 4 disks and this improves overall performance.
Implementing RAID 10 on the ShareCenter Pro allows it to continue operating even if one of the disks fails.

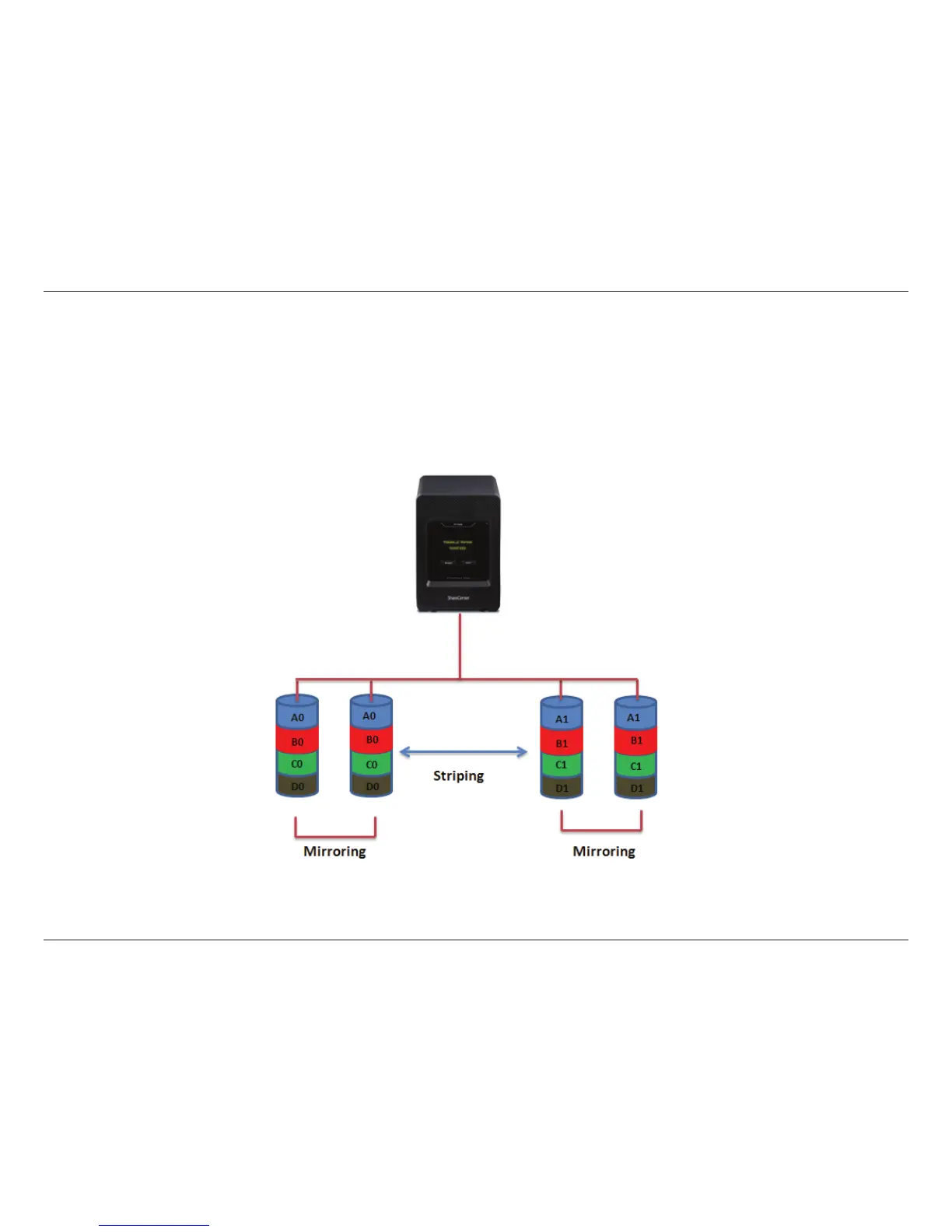

The RAID 10 diagram below displays the general RAID conguration:
