Configuration D-Link Web Smart Switch User Manual
4
4
6
6

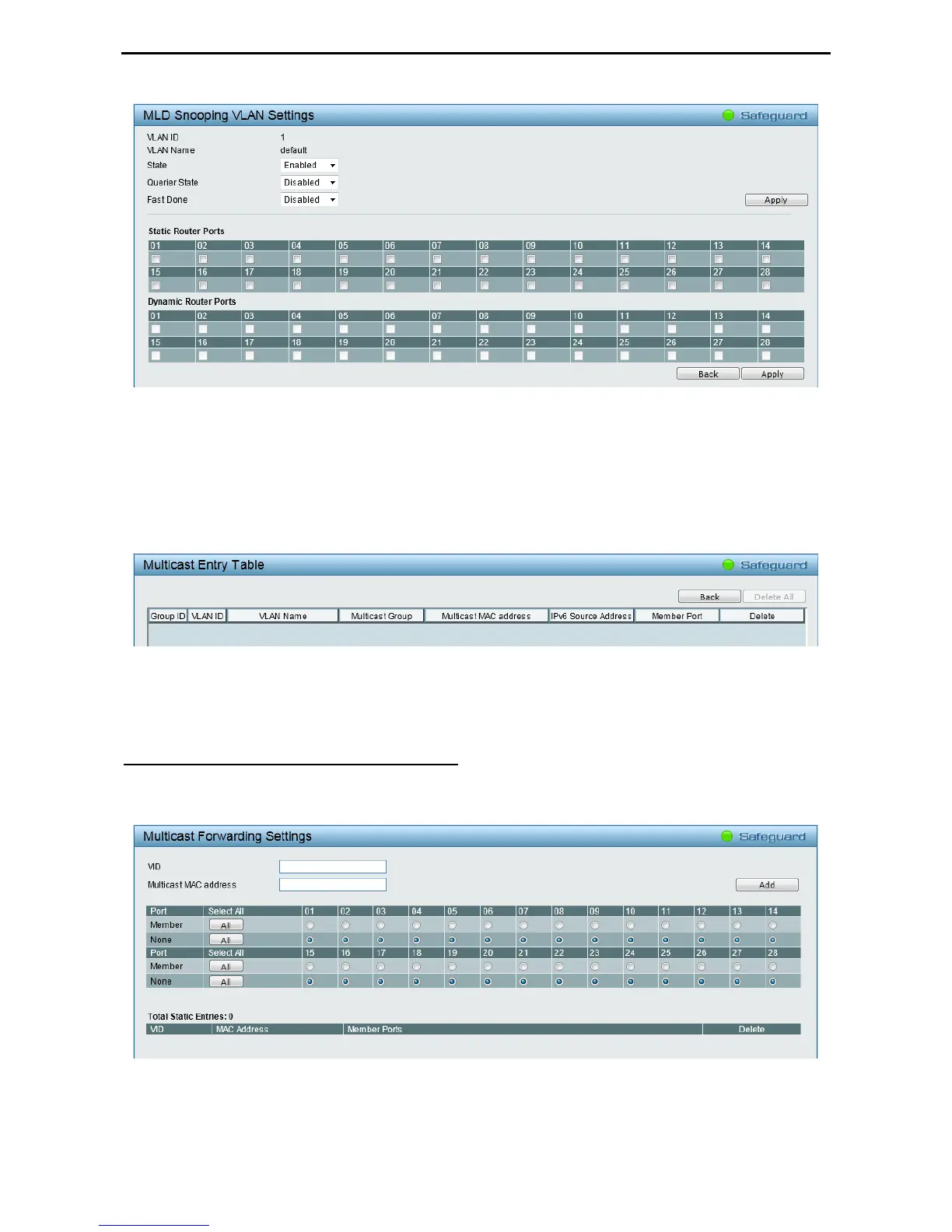

Figure 4.49 – L2 Functions > Multicast > MLD Snooping VLAN Settings
State: Specify the State to be enabled or disabled.
Querier State: D-Link Smart Switch is able to send out the MLD Queries to check the status of multicast
clients. The default state is Disabled.
Fast Done: Specify the Fast Done feature to be enabled or disabled. The default state is Disabled.
To view the Multicast Entry Table for a given VLAN, press the View button.
Figure 4.50 – L2 Functions > Multicast > MLD Multicast Entry Table
Click Delete to remove the corresponding entry. Click Delete All to remove all entries. Click Back to go back
to the previous window.
The Multicast Forwarding page displays all of the entries made into the Switch’s static multicast forwarding
table. To implement the Multicast Forwarding Settings, input VID, Multicast MAC Address and port settings,
then click Add.
L2 Functions > Multicast > Multicast Forwarding
Figure 4.51 – L2 Functions > Multicast > Multicast Forwarding
VID: The VLAN ID of the VLAN to which the corresponding MAC address belongs.
To Next Page
