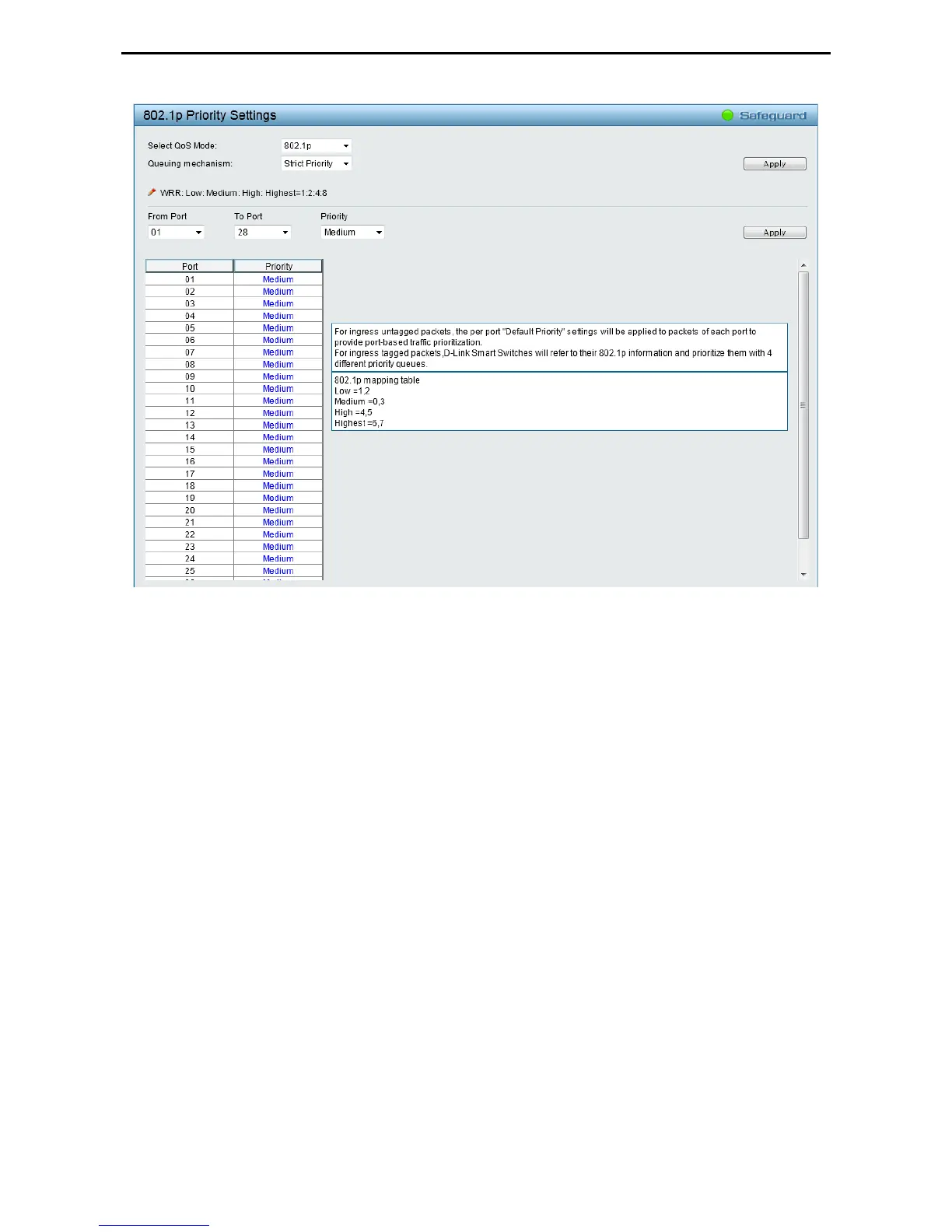

Figure 4.70 – QoS > 802.1p/DSCP/ToS
Select QoS Mode: Specifies the QoS mode to be 802.1p, DSCP or ToS.
Queuing Mechanism:
Strict Priority - Denoting a Strict scheduling will set the highest queue to be emptied first while the
other queues will follow the weighted round-robin scheduling scheme
WRR - Use the weighted round-robin (WRR) algorithm to handle packets in an even distribution in
priority classes of service.
Click Apply for the settings to take effect.
When 802.1p is selected in Select QoS Mode, the following selections appear.
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
Priority: Defines the priority assigned to the port. The priorities are Highest, High, Medium and Low.
When DSCP is selected in Select QoS Mode, the following selections appear.
From DSCP value / To DSCP value: Select a consecutive DSCP value.
Priority: Defines the priority assigned to the port. The priorities are Highest, High, Medium and Low.
When ToS is selected in Select QoS Mode, the following selections appear.
From ToS / To ToS: Select a consecutive ToS.
Priority: Defines the priority assigned to the port. The priorities are Highest, High, Medium and Low.
Click Apply for the settings to take effect.
