Installation
240 Volt Wiring Diagram For Standard Wall Switch:
Da-Lite ofers two styles of 240 volt wall switches for
standard operation. Please see wiring diagram in wall switch
box included with screen.
Black With
Yellow
To junction box mounted in screen
case, in which interal wiring terminates
in white, black, and red leads.
In multiple control installations the switch is replaced by the low
voltage control, operated from push button stations.
Operating switch,
switch box, and
plate furnished with
screen. (SPDT with
center of)
Up
Down
Side View Of
Switch & Box
AC Common
Green
(Ground)
Red
(Up)
Green (Ground)
AC Hot
115V. AC 60HZ
1 AMP. MAX.
This switch cannot be used with L.V.C.
NOTE: A single switch cannot be used to operate more than one
screen. Contract the factory for further information.

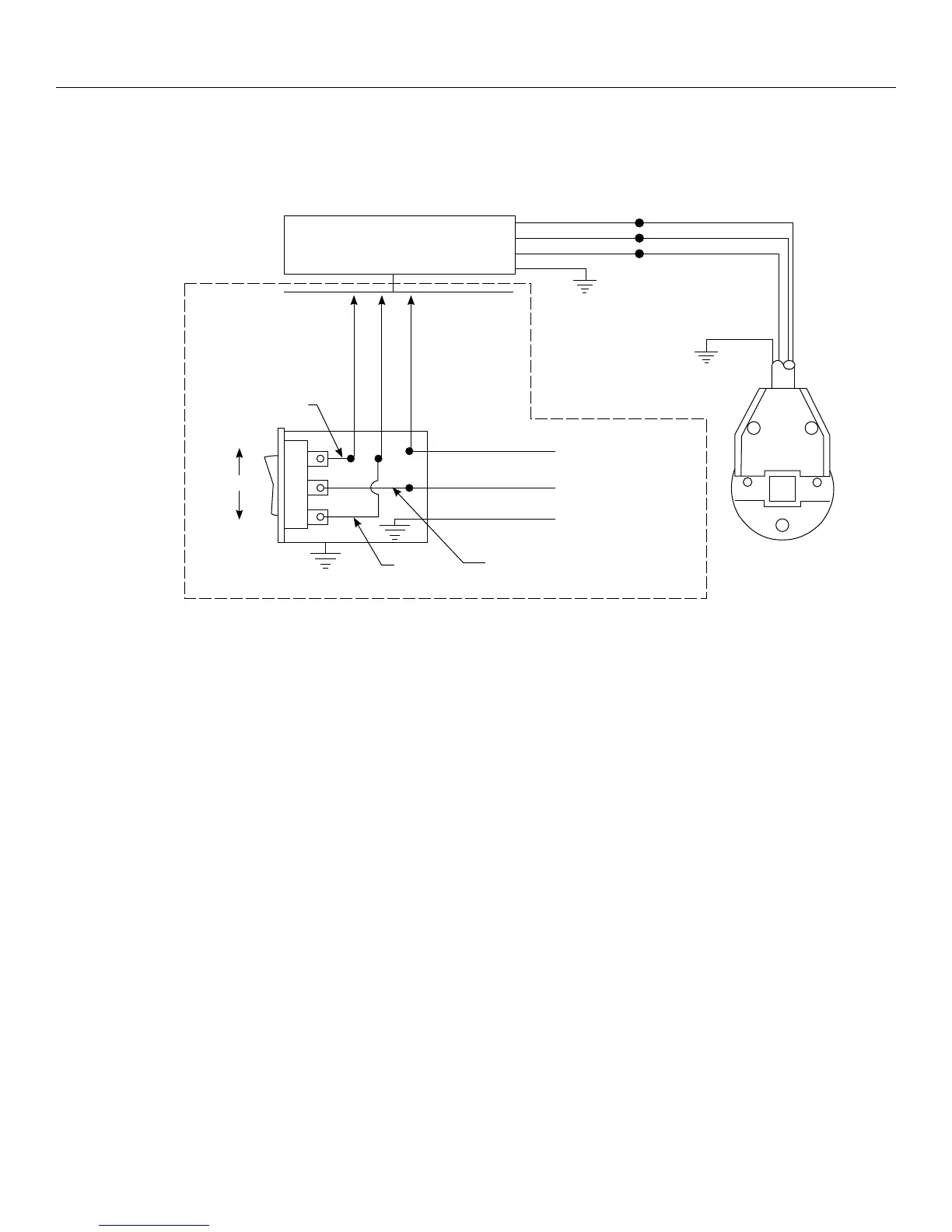

120V Wiring Diagram
Motor
Green (Ground)
Green (Ground)
Black (Down)
Black (Down)
Black
(Down)
Red (Up)
Red (Up)
White (Common)
White (Common)
Of
