General Specification
Use
The EP102 control panel has been designed with great care to control the entry and exit of vehicles
and personnel, through gates, shutters, doors and rising arm barriers. It provides a multi-purpose
interface, evaluating signals from the Access control equipment, limit switches and safety equipment,
to give the customer a vast range of programmable options, which are fully explained herein.
Automatic control parameters
EP102 is DAAB’s standard automatic control panel system. It contains all the equipment necessary to
control up to two electric drive motors for one or two gates/barriers: contactors, motor protection
devices, load safety sensor systems, safety buffer monitoring, alarm indicators, internal buttons for
local test operation, display window and programming pad are built onto the circuit board. The basic
control panel can be fitted with a range of accessories such as inductive vehicle detection loops, radio
control, traffic lights and magnetic locks etc.

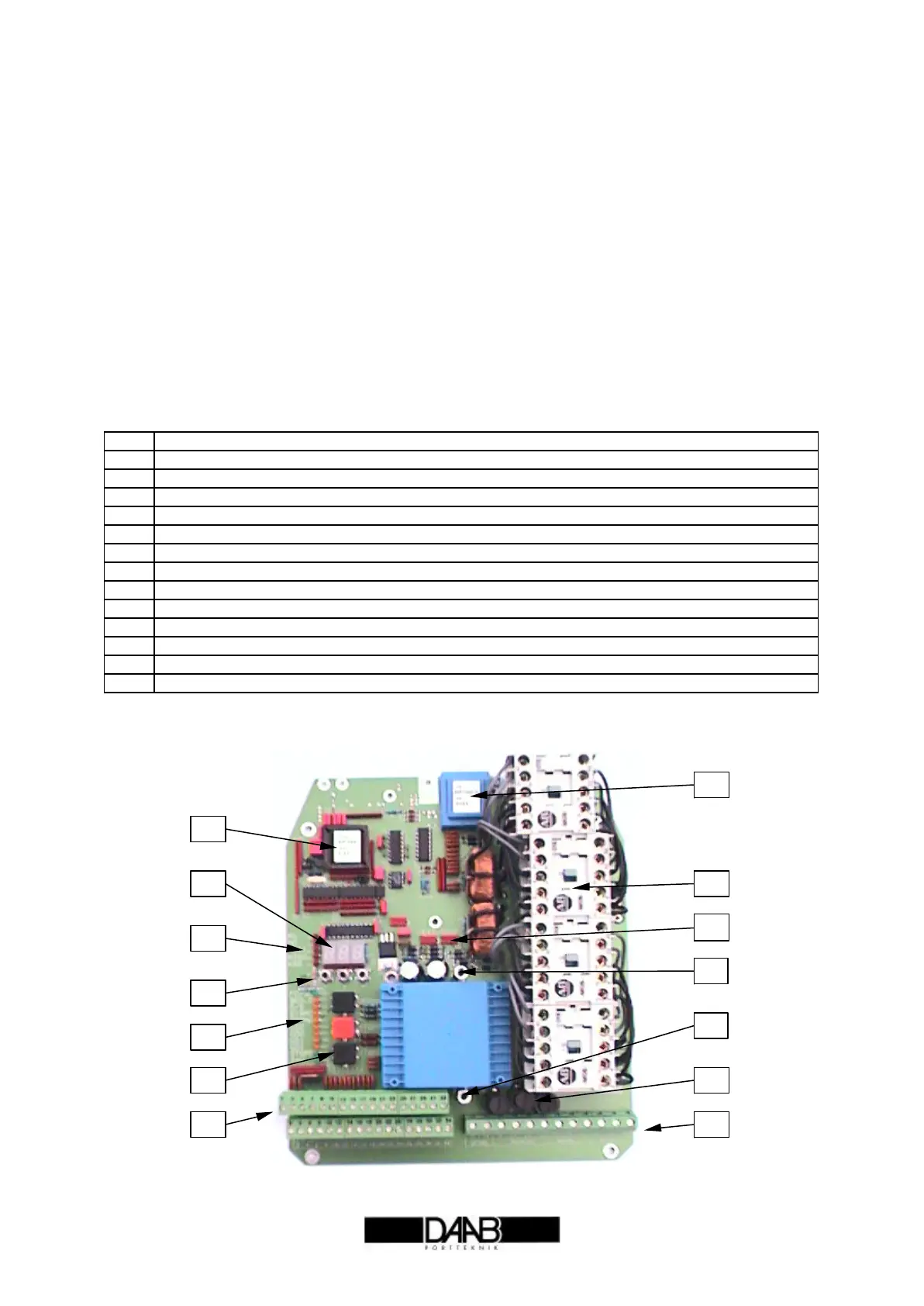

Automatic control panel components
No. Specification
1 Program chip with indication of installed program version.
2 Display window to indicate measured values and settings.
3 Alarm indicator diodes.
4 Push-buttons for setting control parameters.
5 Control display diodes.
6 Push-buttons for local gate operation, required for service and commissioning.
7 Low-voltage terminal strip for control signals.
8 Supply-voltage terminal strip for power supply and output to motors.
9 Fuses for motors and automatic controls.
10 Spacers for mounting optional supplementary accessory card.
11 Output for supplementary accessory card.
12 Contactors for starting, stopping and reversing electric motors.
13 Rating plate showing designation of model and serial number.
1
2
3
4
5
6
7 8
9
10
11
10
12
13
