15. EXP BOARD (OPTIONAL)
Depending on the programming of the clock (see enclosed instructions leaflet), the function of the EXP board is to
feed a possible electrovalve which, connected to the delivery of the hydraulic system, when water is drawn,
activates the automatic start of the pressure boosting set.

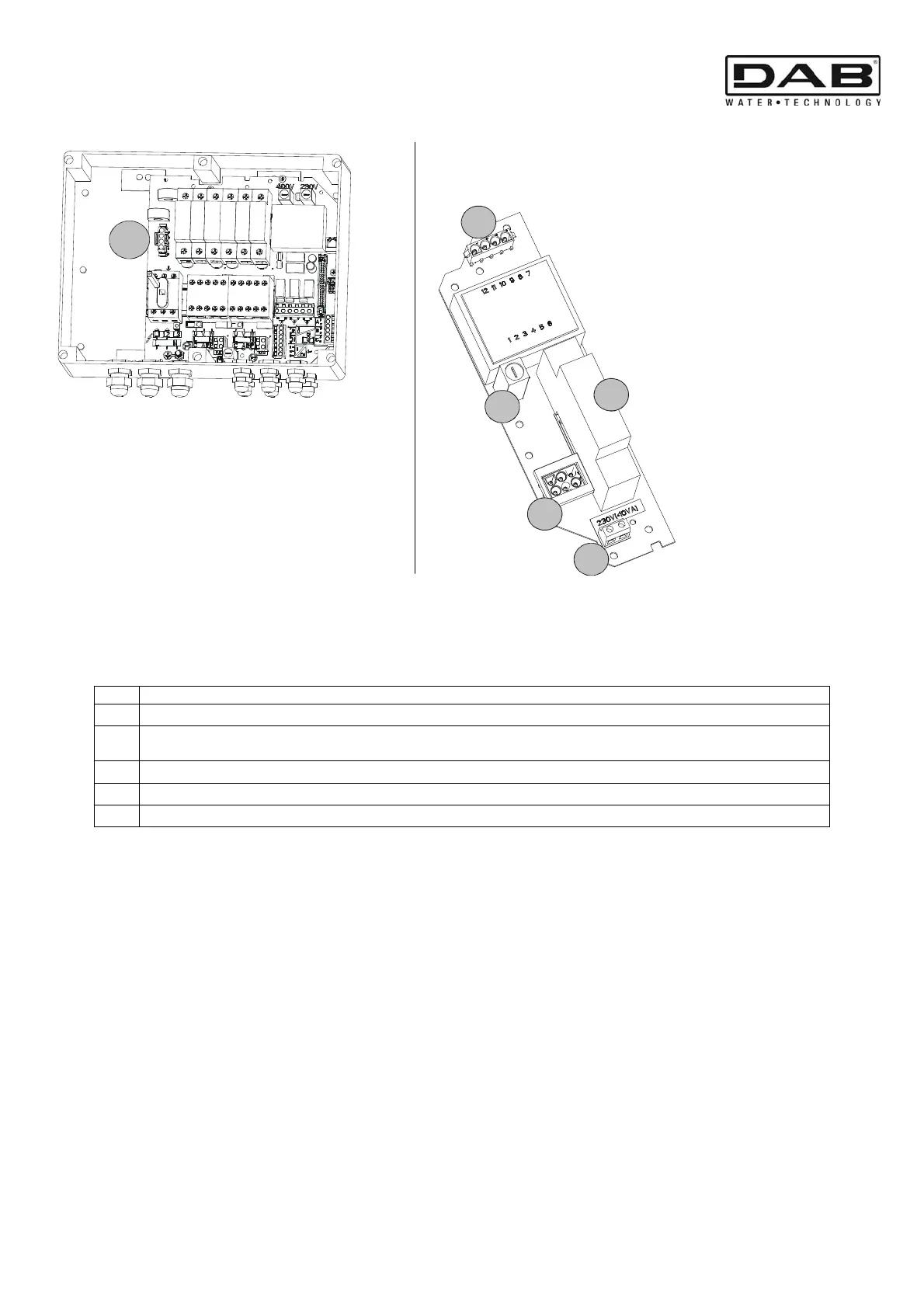

Ref. Function
1
Connector for connection to the electric panel board (Ref. 16 – Paragraph 8).
2
Fuse protecting against overloads and short circuits of the output terminal.
Electrical characteristics: 5x20 T 100mA.
3
Connector for connecting the clock.
4
Output terminal. Electrical characteristics: 230VAC, maximum using power: 10VA
5 Programming clock.
EXP
1
2
3
4
5
