Characteristics of the inputs
DC inputs [V] AC inputs 50-60 Hz [Vrms]
Minimum switch-on voltage
[V]
8 6
Maximum switch-off voltage
[V]
2 1,5
Maximum admissible voltage
[V]
36 36
Current absorbed at 12V
[mA]
3,3 3,3
Max. accepted cable section
[mm²]
1,5
N.B. The inputs can be controlled with any polarity (positive or negative with respect
to their earth connection)
Table 5: Characteristics of the inputs
Figure 14 and Tabella 4 show the connections of the inputs.

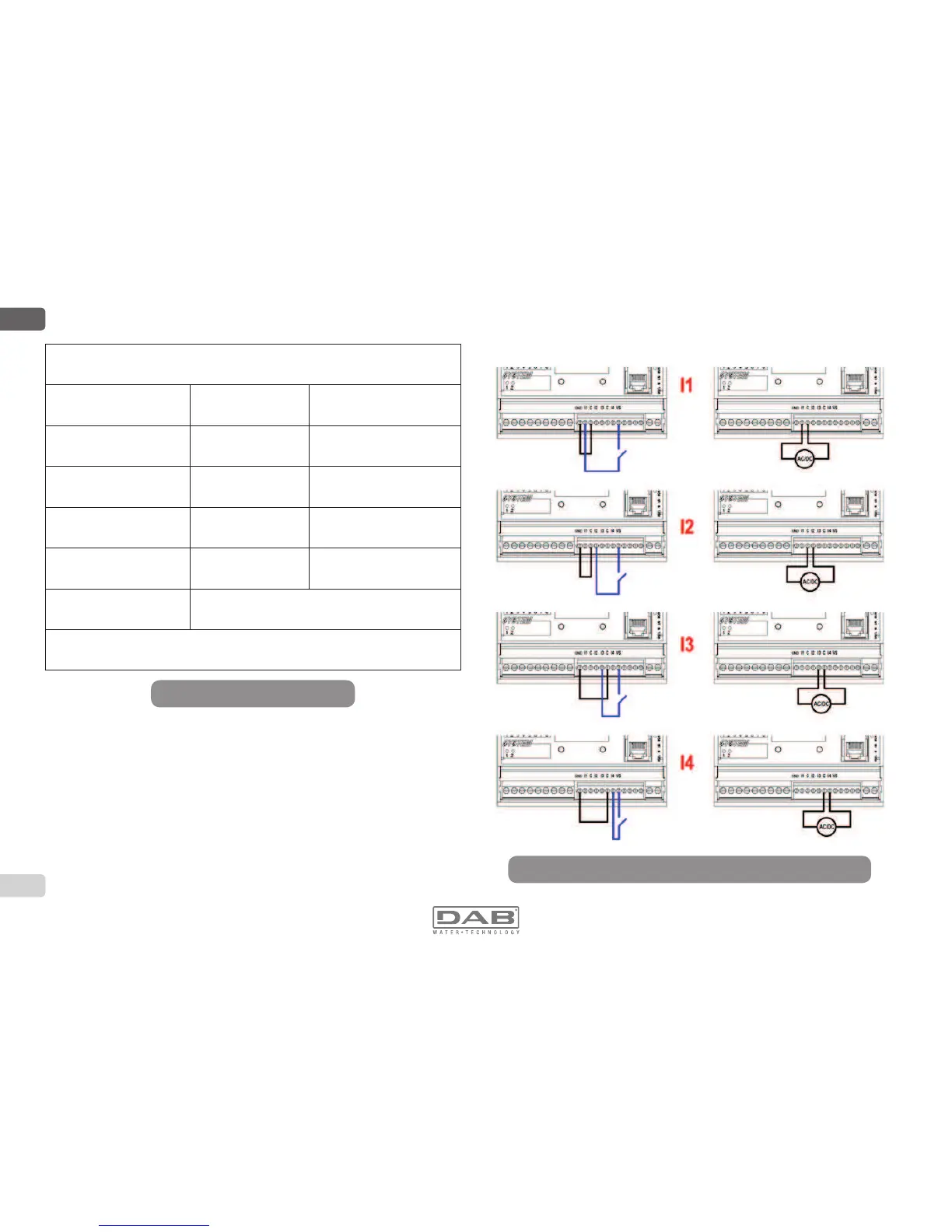

Figure 14: Example of connection of the inputs to the I/O control unit
