10. OPTION
#Option-02 (RS232C)

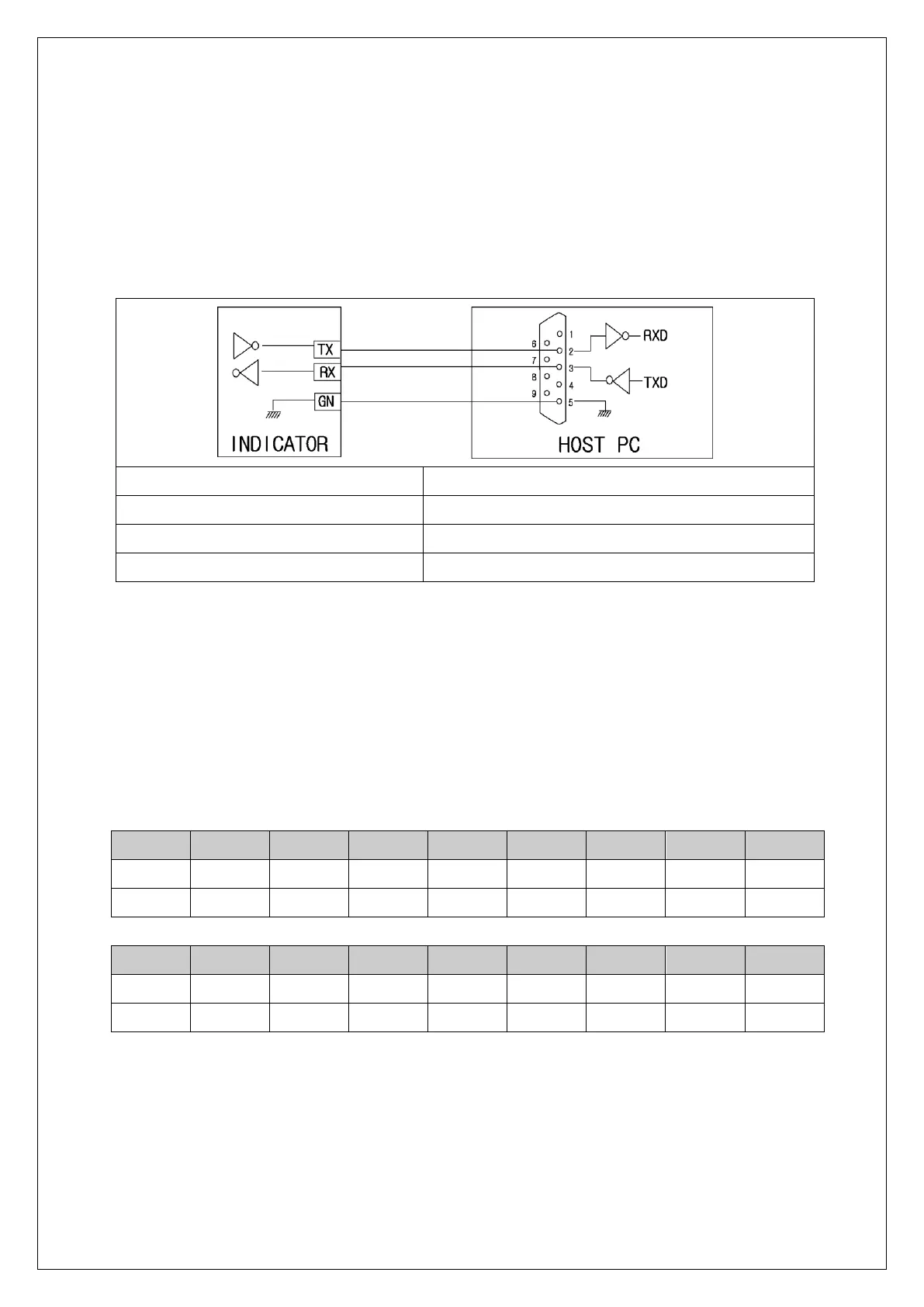

Since RS232C Interface is very sensitive of electric noise. So please do the wiring from
AC Power and electric wires separately. Also you must use the shield calbe always
TX(Transmission Data), No.3 Pin
RXD(Receive Datea), No.2 Pin
RX(Receive Data), No.2 Pin
TXD(Transmission Data), No.3 Pin
1. TYPE : EIA-232C
2. Method : Half-duplex, asynchronous method.
3. Baud-rate : 2400, 4800, 9600, 19200, 38400, 57600bps 중 선택
4. Parity : No Parity
5. Data bit : 8 bit
6. Stop bit : 1bit
7. Stream mode (Ex. Data +1234.5 transmission)
1) BYTE1 : fixed character (S)
2) BYTE2 : Channel character (CH1 : 1, CH2 : 2)
3) BYTE3 ~ BYTE6 : fixed character (, N T ,)
4) BYTE7 ~ BYTE14 : DATA 8 BYTE(including +/)
5) BYTE15 : CARRIAGE RETURN
