5. Rear Panel

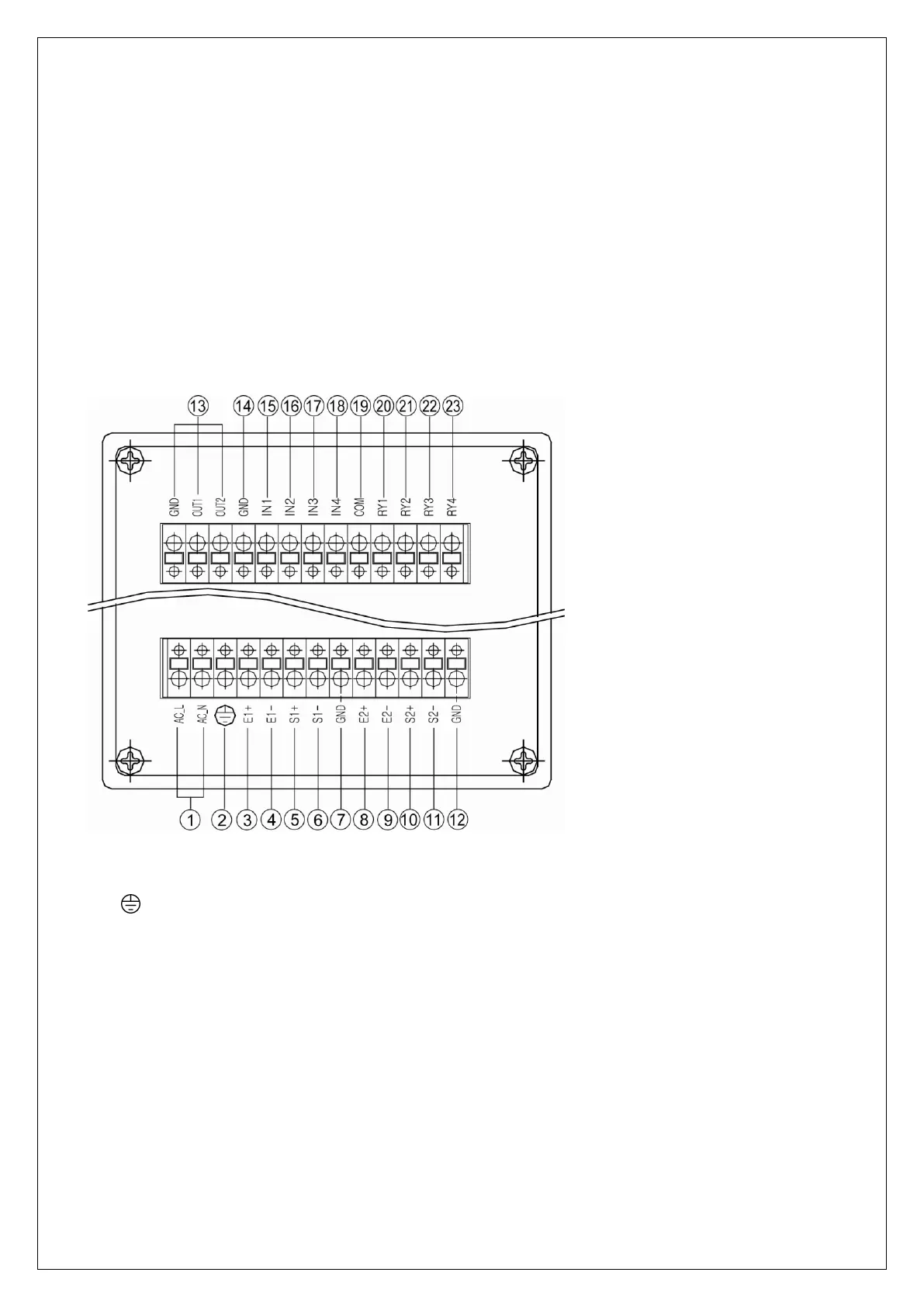

Please check the location of terminal and its use. While the projected button is being
pressed, please insert the cable into the lower hole completely. As soon as you release
the button, the connection will be completed. At the point, please slightly pull the calbe
and check whether the cable is come off or not.
(The most suitable calbe is Φ 0.5~1. Linking cable must be brazing or used with 1
terminal)
① AC_L, N : Main Power Supply Wiring Terminal
② : Ground Terminal (as an independent ground connection.)
③ E1+ : CH1 Sensor Supply Voltage + Connection Terminal(FED)
④ E1- : CH1 Sensor Supply Voltage - Connection Terminal(White)
⑤ S1+ : CH1 Sensor Ouput Signal + Connection Terminal(Black)
⑥ S1- : CH1 Sensor Output Signal – Connection Terminal(Green)
⑦ GND : SHIELD connection terminal of CH1 sensor(Tare)
⑧ E2+ : CH2 Sensor Supply Voltage + Connection Terminal(Red)
⑨ E2- : CH2 Sensor Supply Voltage - Connection Terminal(White)
⑩ S2+ : CH2 Sensor Ouput Signal + Connection Terminal(Black)
⑪ S2- : CH2 Sensor Output Signal – Connection Terminal(Green)
⑫ GND : SHIELD connection terminal of CH2 sensor(Tare)
