SECTION 9 - COMPONENT REPAIR
Section 9 - Component Repair

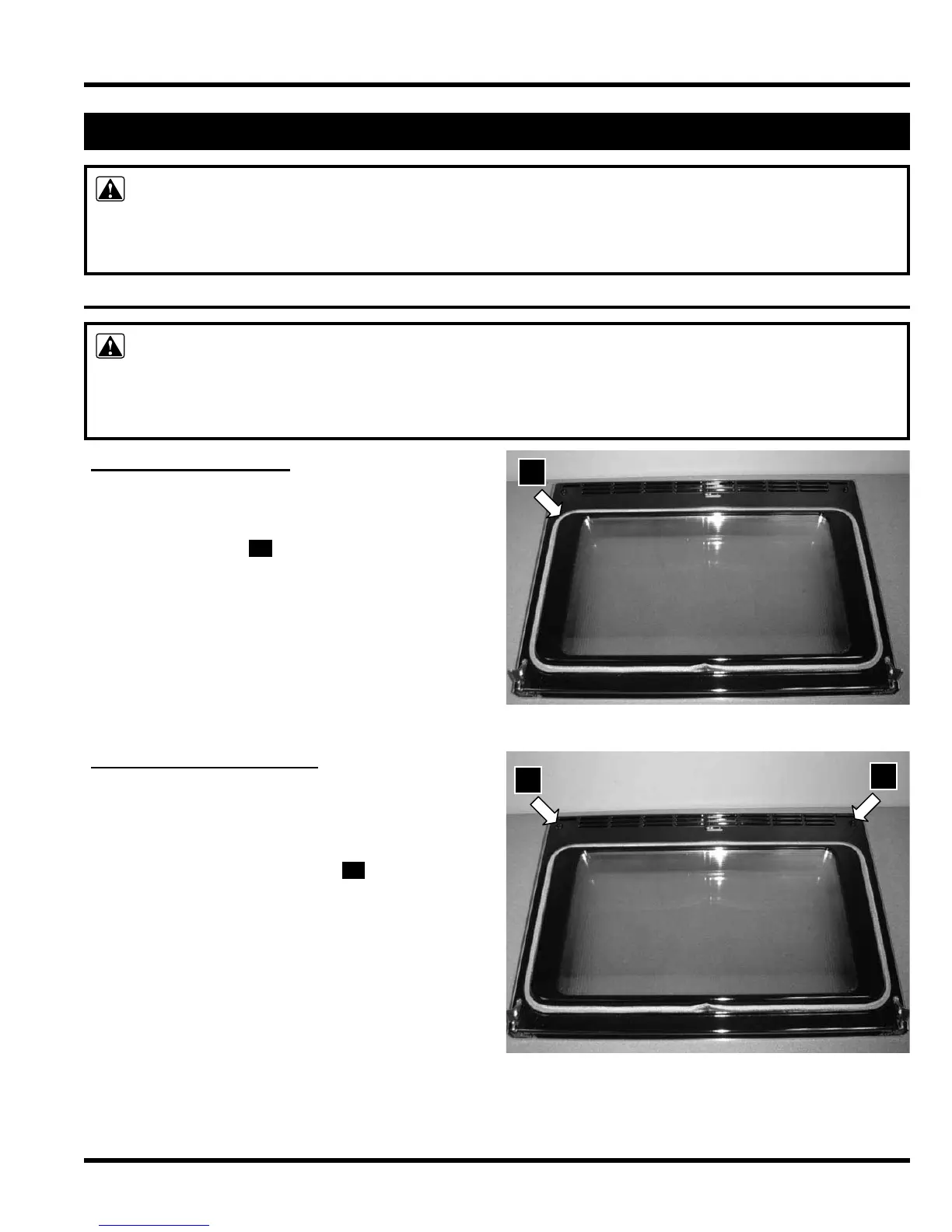

Door Gasket (seal)
Remove the oven door. See the Door Removal
section on page 8-1.
Lay the door on a flat, padded surface with
the door gasket
A facing up.
Remove the gasket by grasping sections of it
and pulling up.
Insert the self-locking tabs on the
replacement gasket into the holes on the
oven door. Check to make sure that all of the
self-locking tabs are firmly in place by pulling
gently on the gasket.
Reinstall the oven door. See the Door
Installation section on page 8-2.
•
•
•
•
•
DANGER
Turn off electrical power at the main power supply and the gas supply at the supply valve
before servicing the range. Failure to turn off electrical power and the gas supply to the range
will result in a electric shock and explosion hazard.
•
Door Component Repair
WARNING
Do not attempt to disengage the hinge locks on the door while it is removed from the oven. The
hinge springs could release, causing personal injury.
Do not lift or carry the oven door by the door handle.
•
•
Door Handle (ER48D)
Remove the oven door. See the Door Removal
section on page 8-1.
Lay the door on a flat, padded surface with
the door gasket facing up.
Remove the two (2) screws
B in the top
corners of the door.
Grasp the door with one hand and pull up.
Pull the door handle out from underneath.
To reinstall the door handle, grasp the door
with one hand and pull up. Hold the handle in
position on the front. Lower the door onto the
padded surface.
Replace the two (2) screws in the top corners
of the door and tighten into place. Do not
over-tighten the screws. The front door glass
could crack.
Reinstall the oven door. See the Door
Installation section on page 8-2.
•
•
•
•
•
•
•
A
B
B
