Page 8-2
DACOR RANGE SERVICE MANUAL

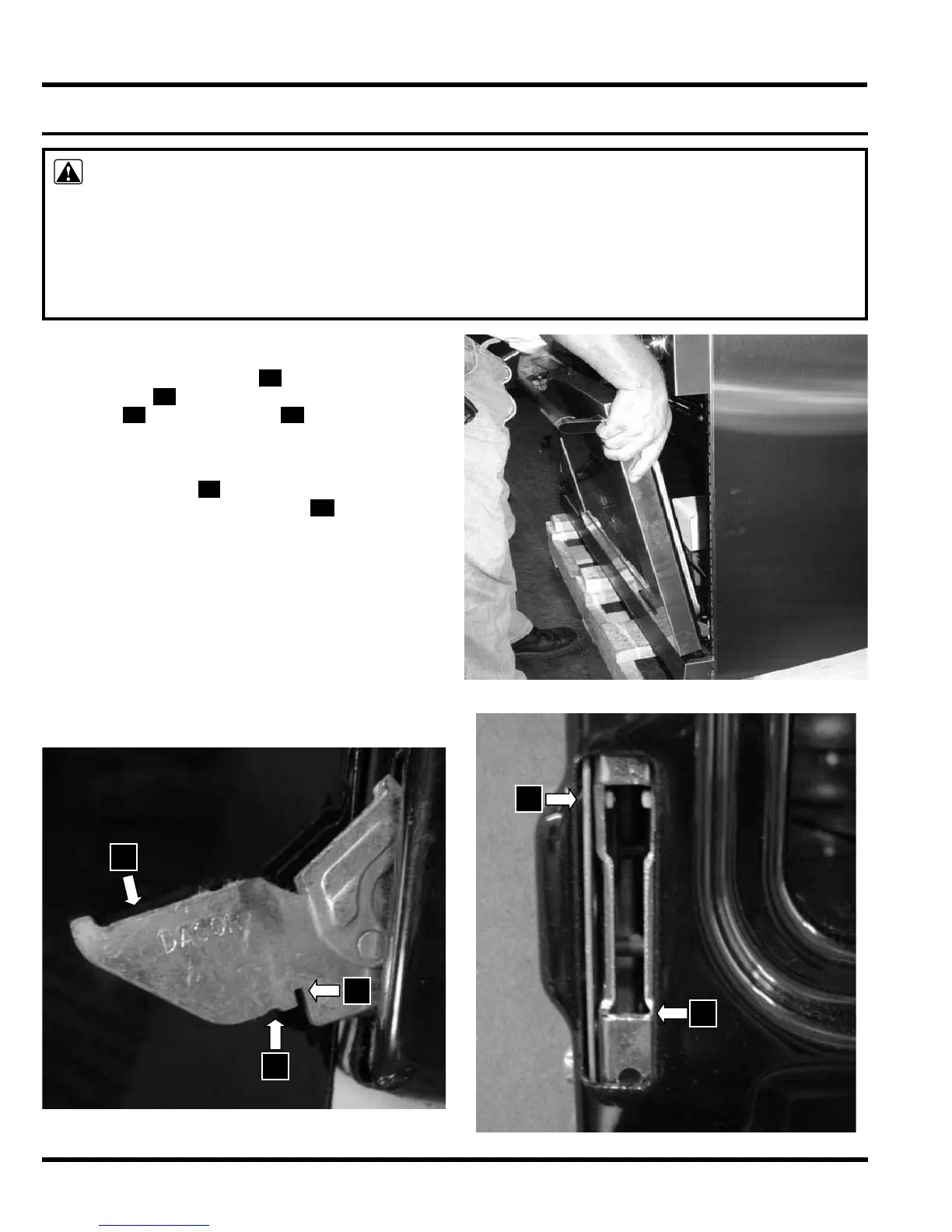

Grasp the oven door on opposite sides and
hold it at a 15° angle from the front of the
oven. Slide the hinges
A into the hinge
openings
B , resting the bottom of the hinge
arms
C on the lower lip D of the hinge
receptacles. Continue to hold the door at a
15° angle with one hand while pushing in on
each of the bottom corners of the door. Push
until the notch
E on the bottom of each
hinge slips over the lower lip
D of each
hinge receptacle.
Lower the door to the fully opened position.
Rotate both hinge locks toward the oven.
Open and close the door completely to ensure
that it is properly installed.
•
•
•
•
WARNING
Be sure that the notch on the bottom of each hinge rests on top of the lower lip of each hinge
receptacle before attempting to open the oven door. Failure to do so may cause the door to fall
off its hinges, resulting in personal injury or damage to the door.
Rotate the hinge locks toward the front of the range immediately after installation of the door.
Failure to do so may cause the door to fall off its hinges, resulting in personal injury or damage
to the door.
•
•
Door Installation
A
C
E
B
D
