Dacor ER30D - Igniters and Orifices (injectors)

Page 9-11
SECTION 9 - COMPONENT REPAIR
Igniters and Orifices (injectors)
Replacement of the crown burner igniters or
orifices require the removal of the spill trays. The
spill trays do not need to be removed to replace
the stack burner igniters or orifices.

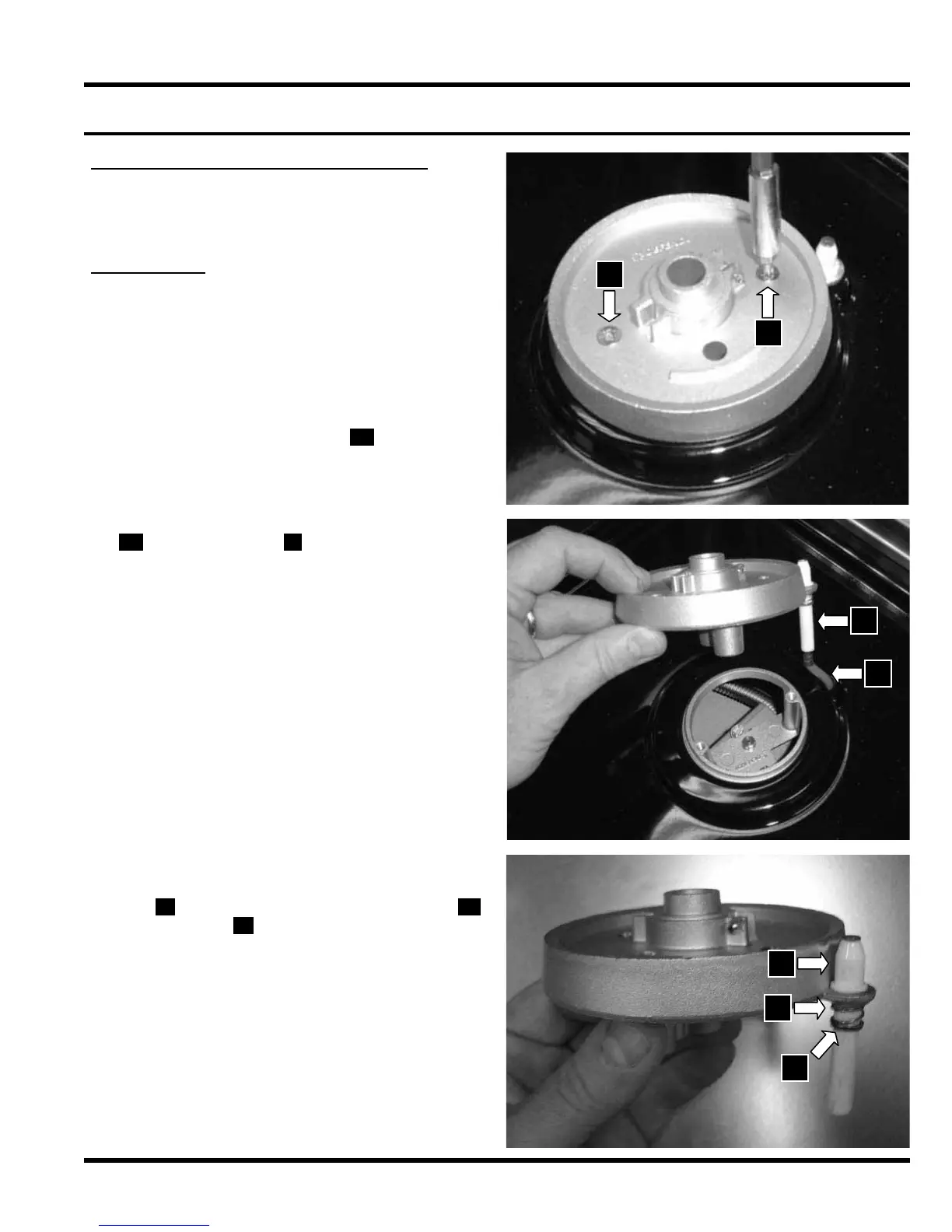

Stack Burner
Turn off the gas supply at the supply valve
and power to the range at the junction or fuse
box.
Remove the grates.
Remove the burner ring and burner cap from
the stack burner.
Remove both T20 Torx head screws from the
top of the stack burner base
G .
•
•
•
•
Cooktop Component Repair (continued)
G
G
I
H
Remove the burner head. Slip the igniter wire
H off of the igniter I as you remove it.
•
Stack burner igniter replacement
The stack burner igniter is mounted to the
side of the stack burner base. Pry the retainer
ring
J at the bottom of the igniter spring K
off the igniter L .
Pull the igniter out of the burner base.
Reattach the igniter to the base.
•
•
•
K
J
L
