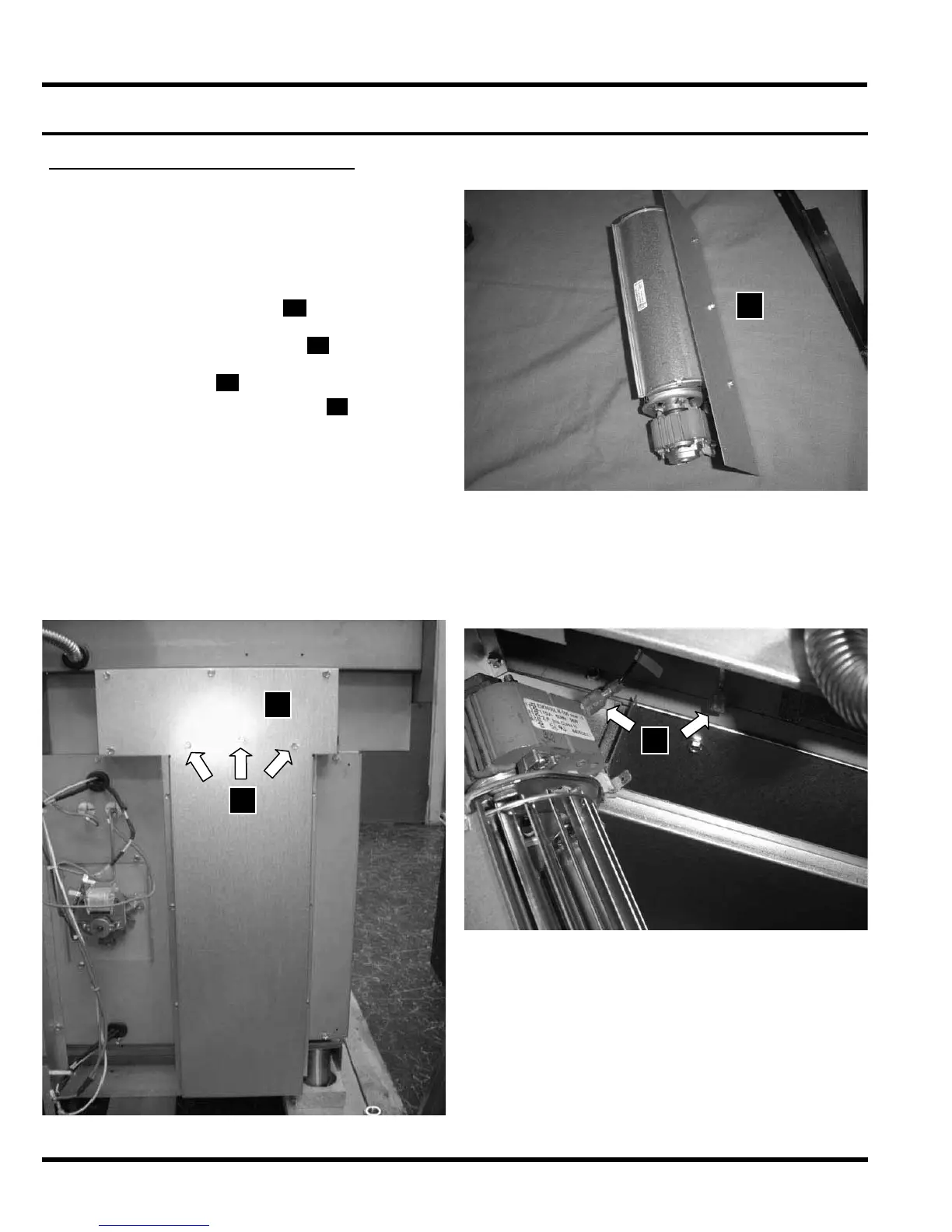

Cooling Fan Assembly Repair
Turn off the gas supply at the supply valve
and power to the range at the junction or fuse
box.
Move the range out from the wall or cabinet
and remove the back panel as described on
page 8-3.
The cooling fan assembly
D is mounted to
the exhaust duct cover. Remove the screws
from the exhaust duct cover
E to access the
cooling fan assembly. Do not remove the fan
mounting screws
X .
Label and disconnect the wires F from the
cooling fan motor as you remove the cooling
fan assembly for service.
Reassemble the cooling fan and duct
assemblies in reverse order.
Replace the back cover.
Test the oven to ensure that repairs were
properly completed.
•
•
•
•
•
•
•
