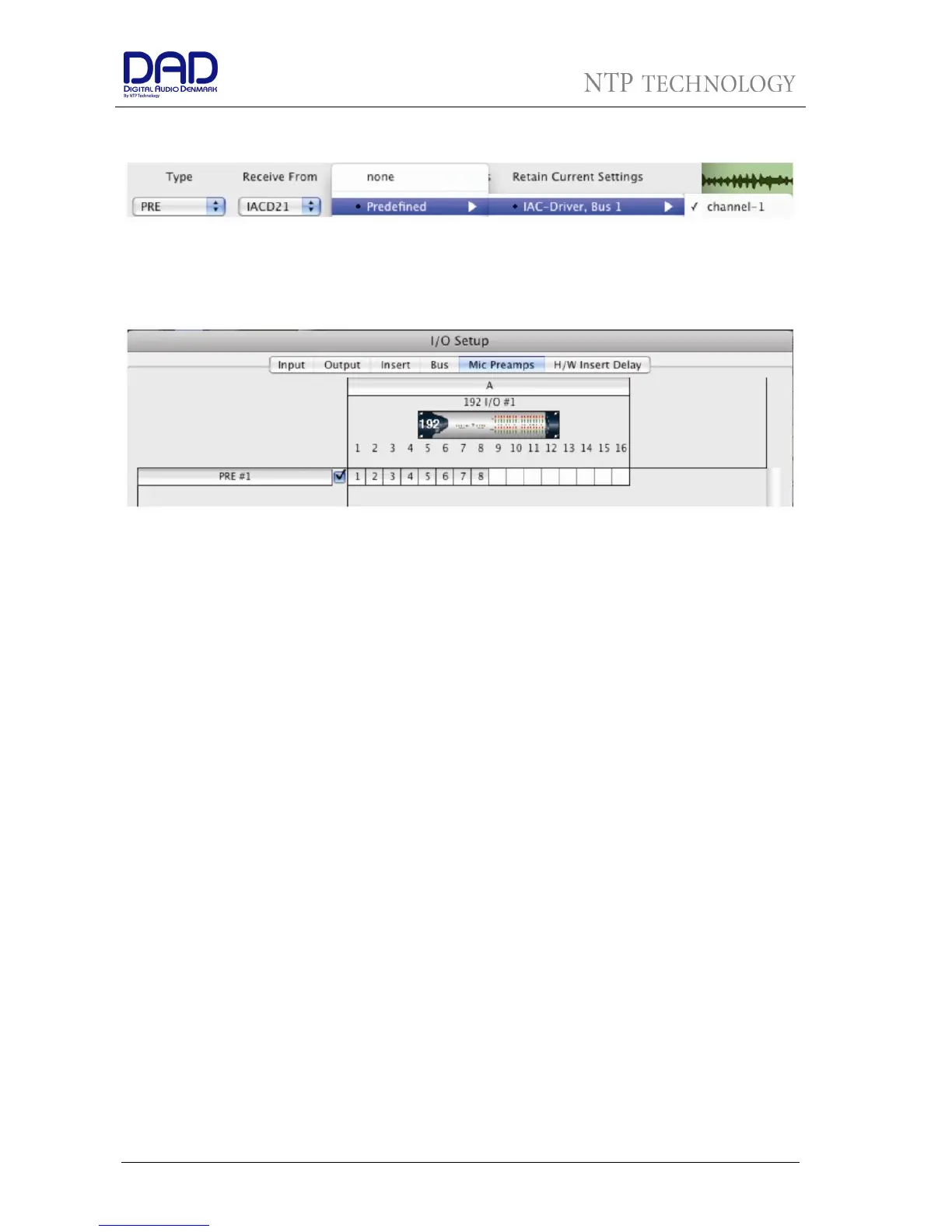

For AX32 Sent To needs to be set to Predefined>IAC-Driver, Bus 1>Channel-1. Continue for all other AX32s
with Predefined>IAC-Driver, Bus 1>Channel-2 and so on. Close the Peripherals dialog by clicking OK.
Go to Setup>I/O Setup>Mic Preamps.
Now click with the little pencil tool on the first channel where the AX24 is physically connected.
Close the I/O Setup dialog by clicking OK.
4. Controlling AX32 from within Pro Tools or from a control surface
If you choose one of the hardware inputs with AX24 attached, Pro Tools will automatically call up the Mic
Preamp control for that input. If it is not visible in Pro Tools@ Mix window, you need to go to View>Mix
Window Views>Mic Preamps. All changes made here are reflected within DADman as far as they can
controlled from Pro Tools. The controllable items are:
• Mic and DI selects the microphone input setting in AX32, Line selects the line input setting.
• The Fader has a range of 69 dB
• -Pad moves the fader 18 dB down. In pad mode he level of the micpre can be adjusted in a range
from -18 dB to +51 dB.
• -Filter enables the high pass filter of AX24@s mic input
• -48v enables the phantom power at the mic input.
• -ø flips the phase of the mic input by 180°.
• -Insert has no effect
