ENGLISH | 19

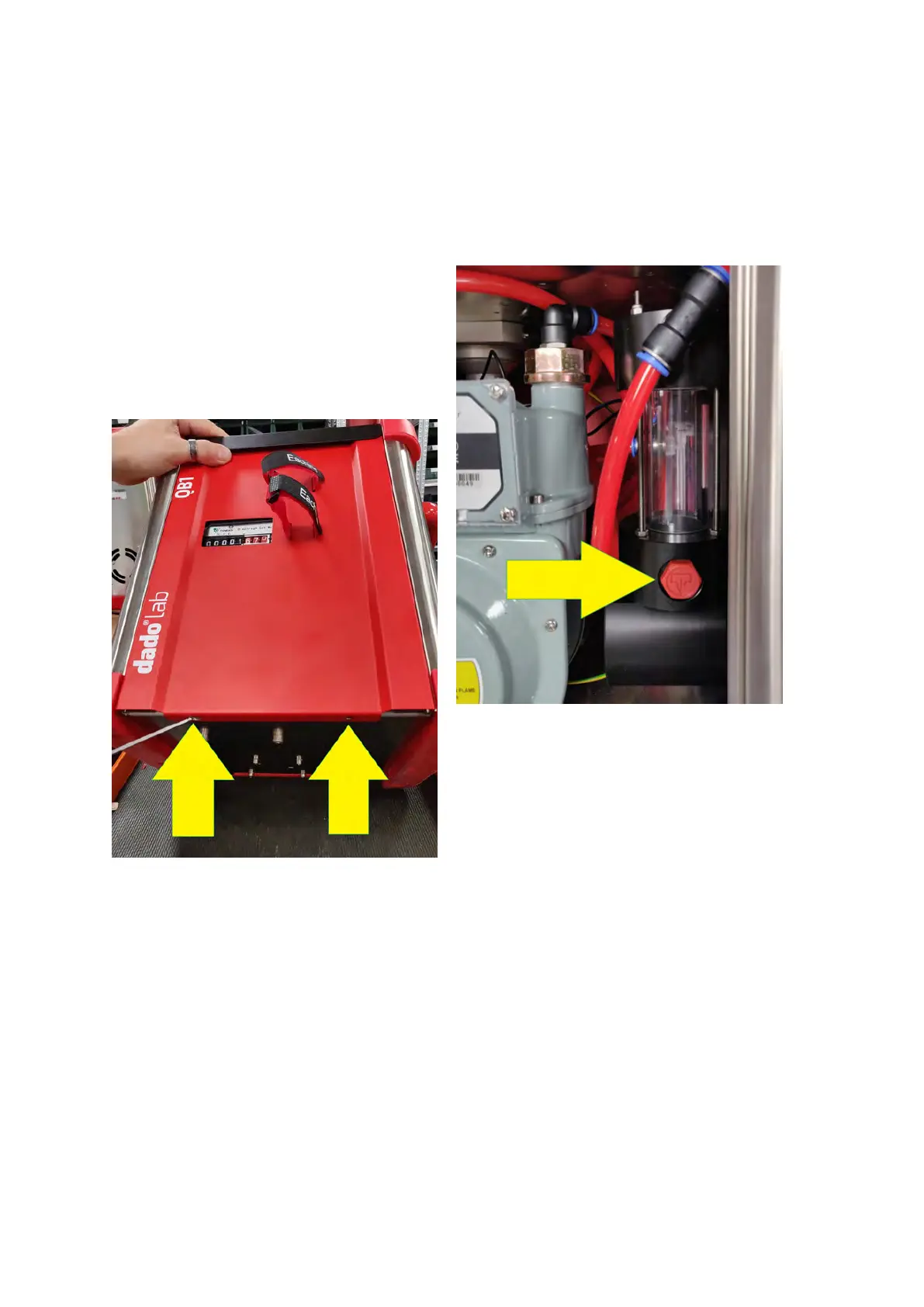

Tank emptying
Using a socket wrench on 19, turn the red cap
anticlockwise. e liquid will now come out. If
necessary, tilt the sampler to facilitate emptying of
the container.
Pay attention to the tightening of the cap: it is suf-
cient to hand-tighten and tighten gently with the
socket wrench, as the cap has a sealing gasket.
Reinstall the side panel
Liquid removal
is procedure lists the steps necessary to remove
liquids accidentally entered into the QB1 sampler
and trapped in the suction protection device.
It is recommended to replace the protection lter at
the suction inlet.
Side panel opening
Open the two closing screws using an allen key 3
and slide the panel downwards.
