1.4. Engine Assembly

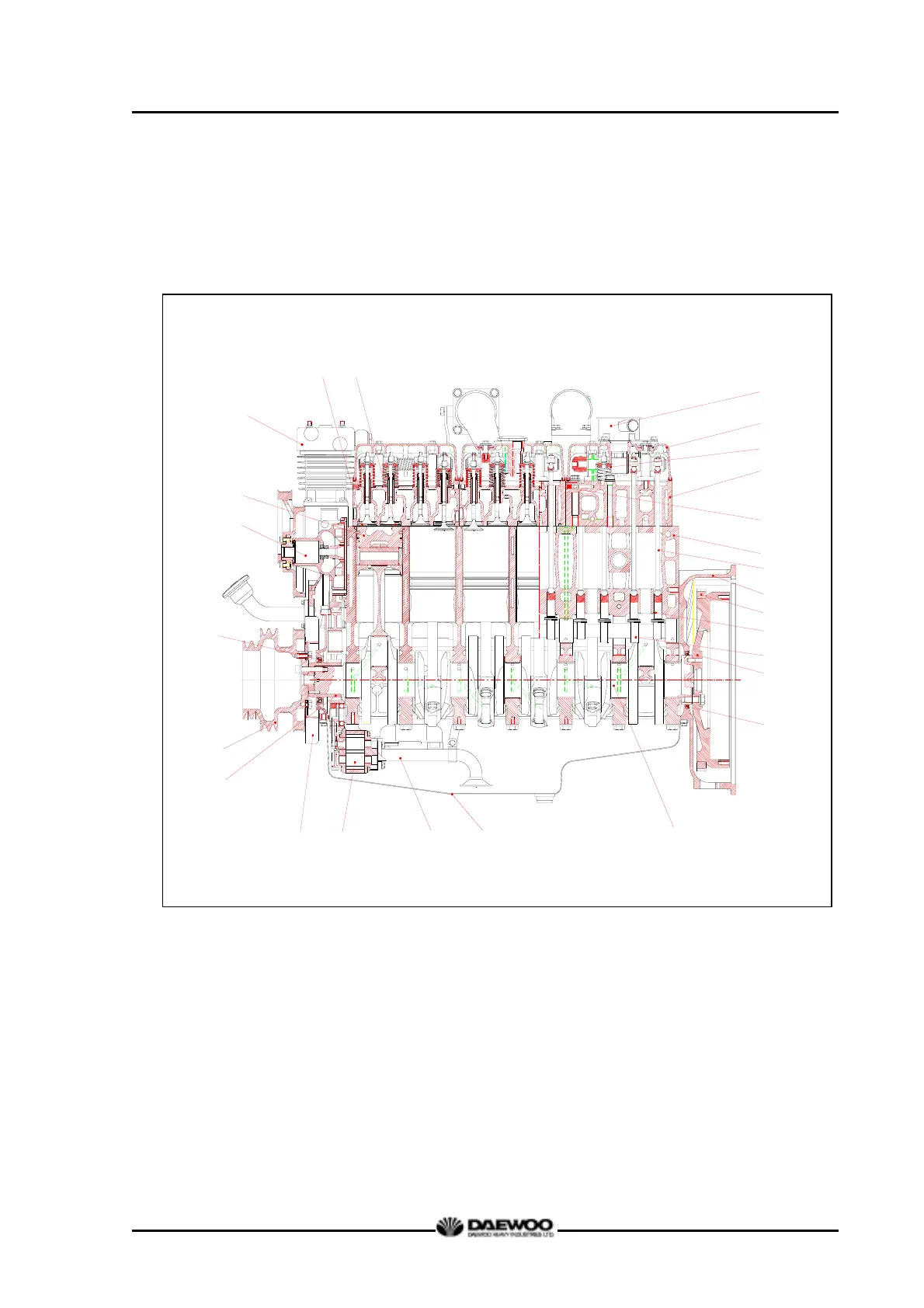

1.4.1. Engine sectional view (longitudinal)
1 Water pump 2 Piston 3 Air compressor
4 Intake valve 5 Exhaust valve 6 Breather
7 Cylinder head cover 8 Exhaust valve spring 9 Cylinder head
10 Intake valve spring 11 Cylinder block 12 Push rod
13 Flywheel housing 14 Ring gear 15 Tappet
16 Cam shaft 17 Fly wheel 18 Oil seal (Rear)
19 Oil seal (Front) 20 Crank shaft pulley 21 Crank gear
22 Vibration damper 23 Oil pump 24 Oil suction pipe
25 Oil pan 26 Crank shaft
9
1
2
3
4
5
6
7
8
10
11
12
13
14
19
20
21
22
23
15
16
17
18
24 25 26
