D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
12
Printed in Jan. 2001 PS-MMA0415-E1A
(3) DE08TIS (Bus)

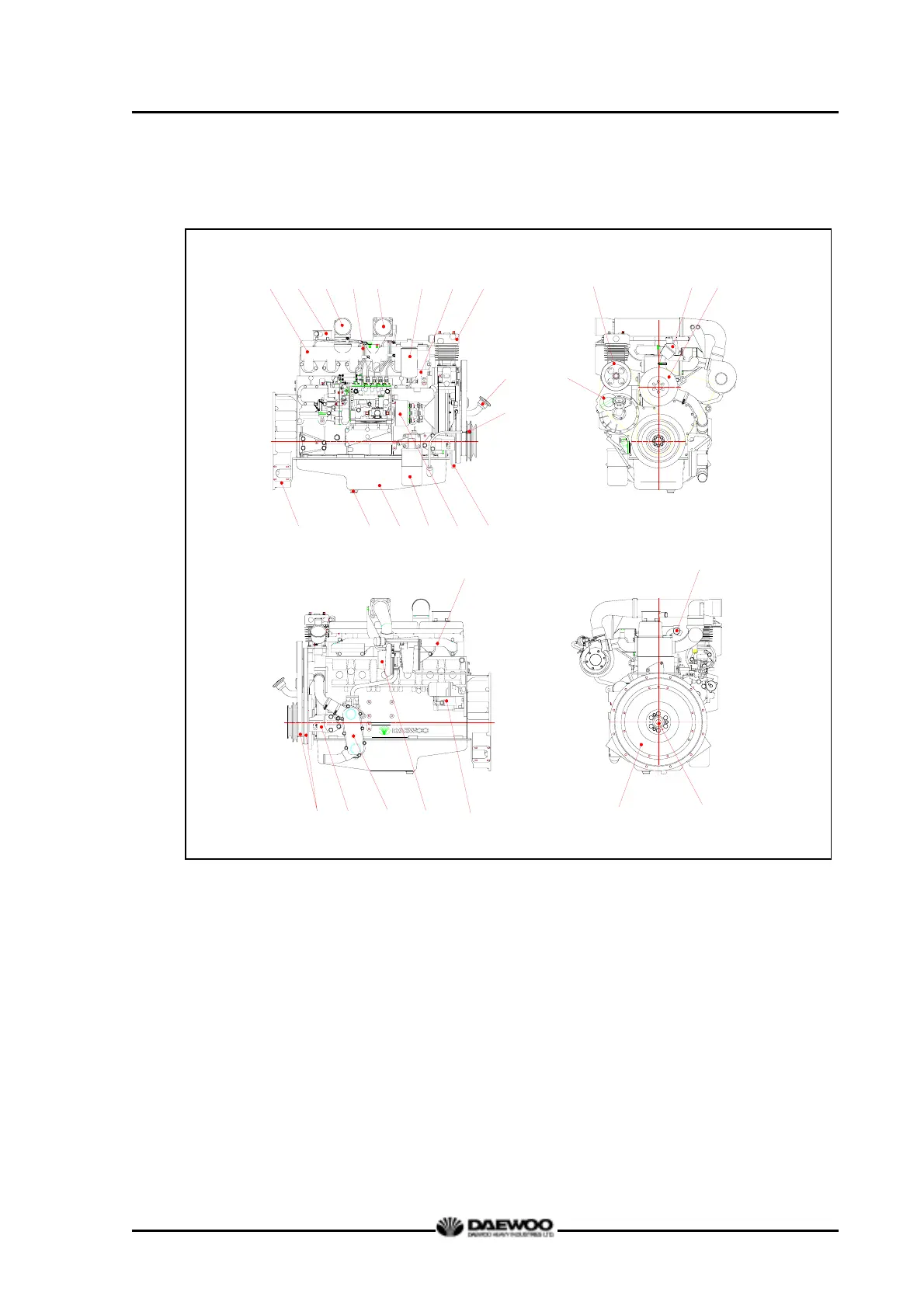

1 Intake manifold 10 Oil level gauge 20 Water pump
2 breather 11 Flywheel housing 21 Exhaust manifold
3 Air pipe 12 Drain plug 22 Belt
(Intercooler to intake manifold)
13 Oil pan 23 Mounting bracket
4 Fuel injection pipe 14 Oil filter 24 Oil cooler
5 Air pipe 15 Fuel injection pump 25 Turbocharger
(Turbocharger to intercooler)
16 Vibration damper 26 Starter
6 Fuel filter 17 Idle gear pulley 27
Cooling water pipe
7 Power steering pump 18 Air compressor pulley 28 Fly wheel
8 Air compressor 19 Thermostat 29 Pilot bearing
9 Oil filler cap
8
1
9
2
3 4 5 6 7
10
11
12 13 14
15
16
17
18 19 20
21
22
23
24
25
26
27
28 29
