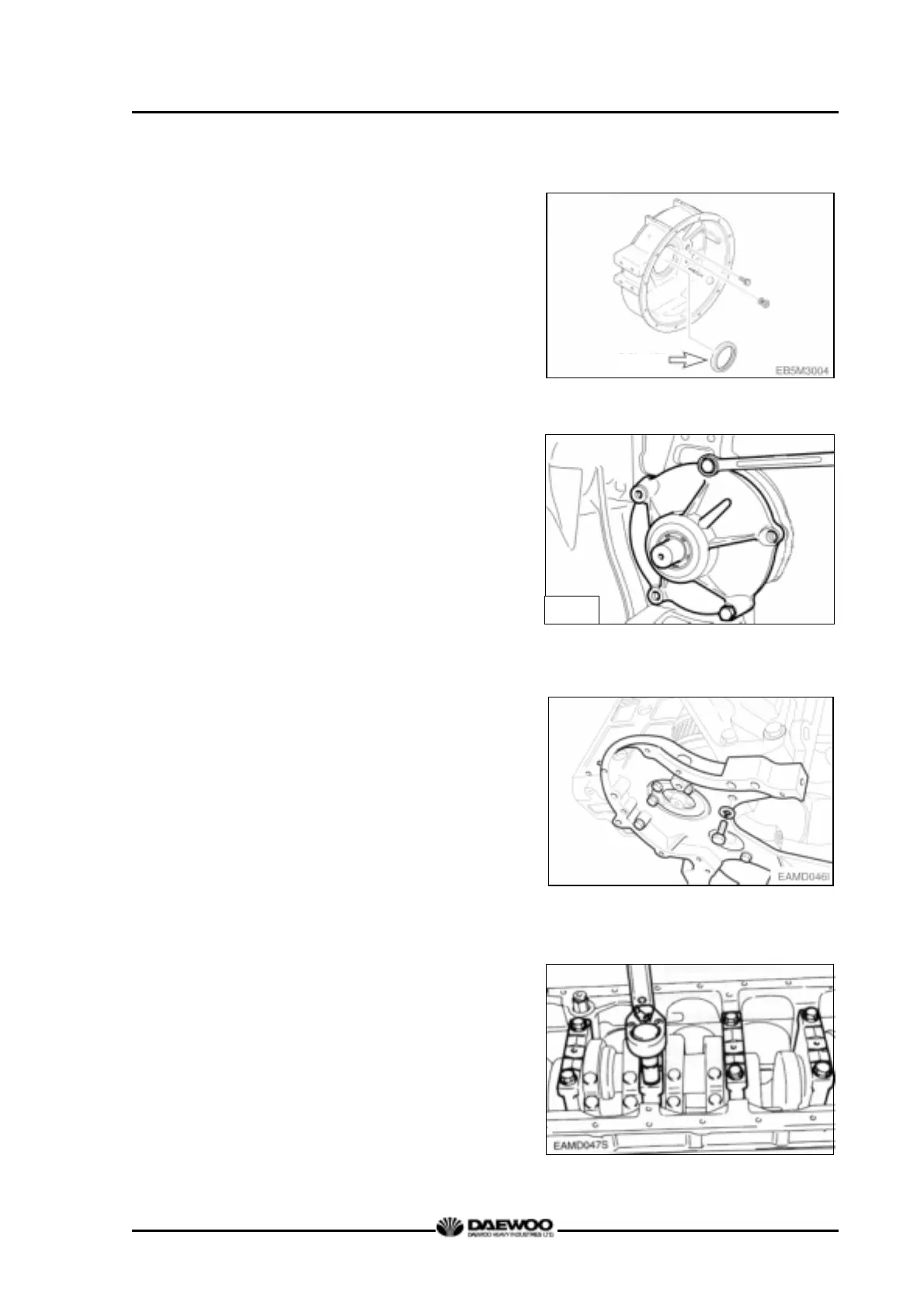

3.1.37. Fly wheel housing
z Remove the flywheel housing fixing bolts
and disassemble the flywheel housing.
z Disassemble the oil seal of flywheel
housing.
3.1.38. Injection pump drive gear
z Unscrew the drive gear housing fixing
bolts and remove the drive gear
assembly.
3.1.39. Timing gear case
z Remove the timing gear case
assembling bolts.
z By tapping lightly with a urethane
hammer the right and left back of timing
gear case's connecting part,
disassemble the timing gear case.
3.1.40. Bearing cap
z Remove the bearing cap assembling
bolts by the step in the reverse order of
assembling, and disassemble the
bearing cap. (Remove by the same way
as the cylinder head bolts' removal.)
z Disassembled bearing caps are kept laid
in order.
Oil seal
G1097
