D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
123
Printed in Jan. 2001 PS-MMA0415-E1A

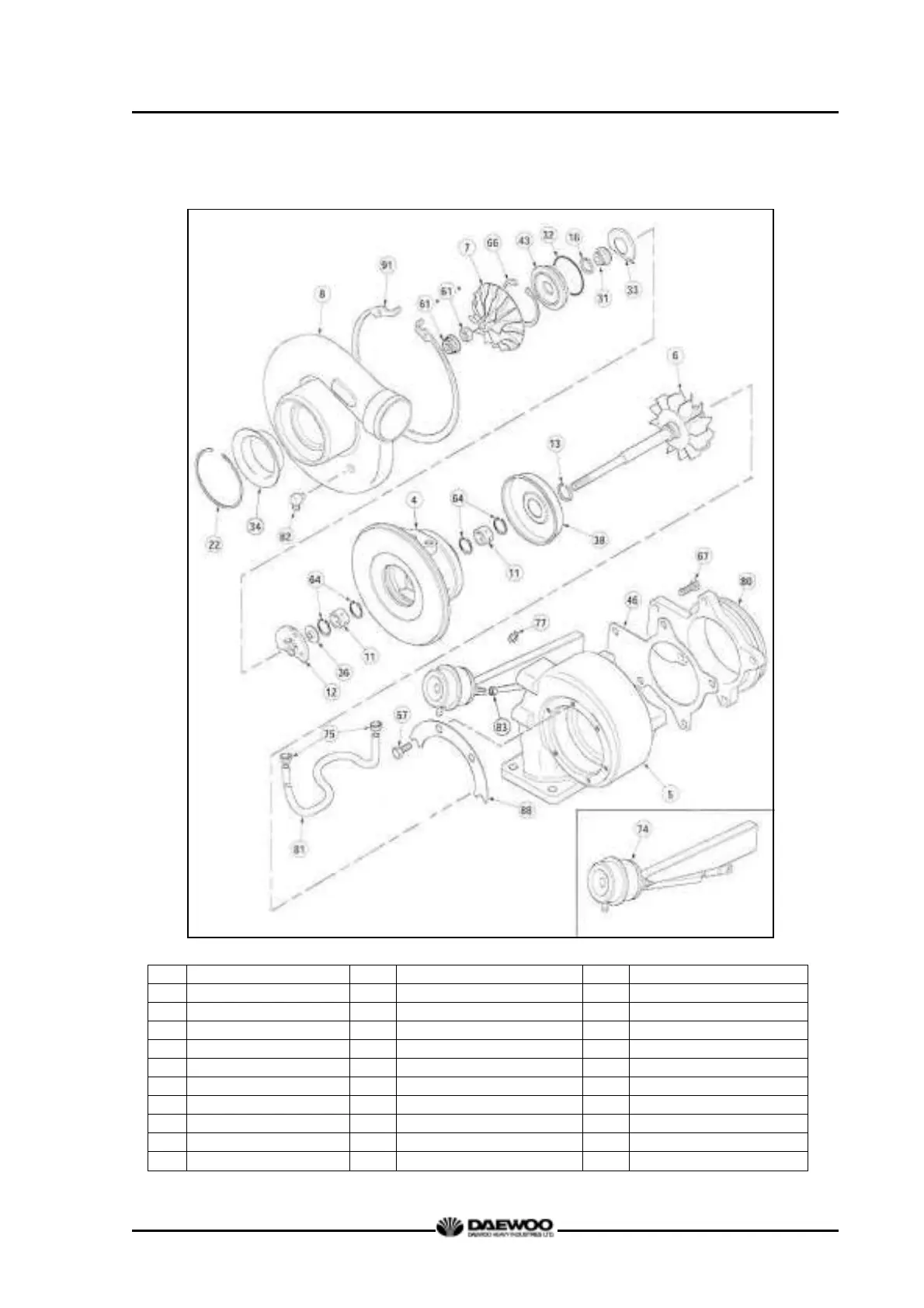

3) Construction
4 Bearing housing 32 O-ring 67 Hex bolt
5 Turbine housing 33 Oil baffle 74 Actuator ass`y
6 Turbine wheel ass`y 34 Inlet baffle 75 Hose clamp
7 Compressor wheel 36 Thrust collar 77 Actuator clip
8 Compressor housing 38 Heat protector cover 80 Cover plate
11 Journal bearing 43 Oil seal plate 81 Hose
12 Thrust bearing 46 Gasket 82 Elbow
13
Piston ring seal(turbine)
57 Hex bolt 83 Hex nut
16 Piston ring seal 61 Lock nut 88 Clamp plate
22 Retainer ring 64 Snap ring 91 Retaining ring
31 Oil stopper
