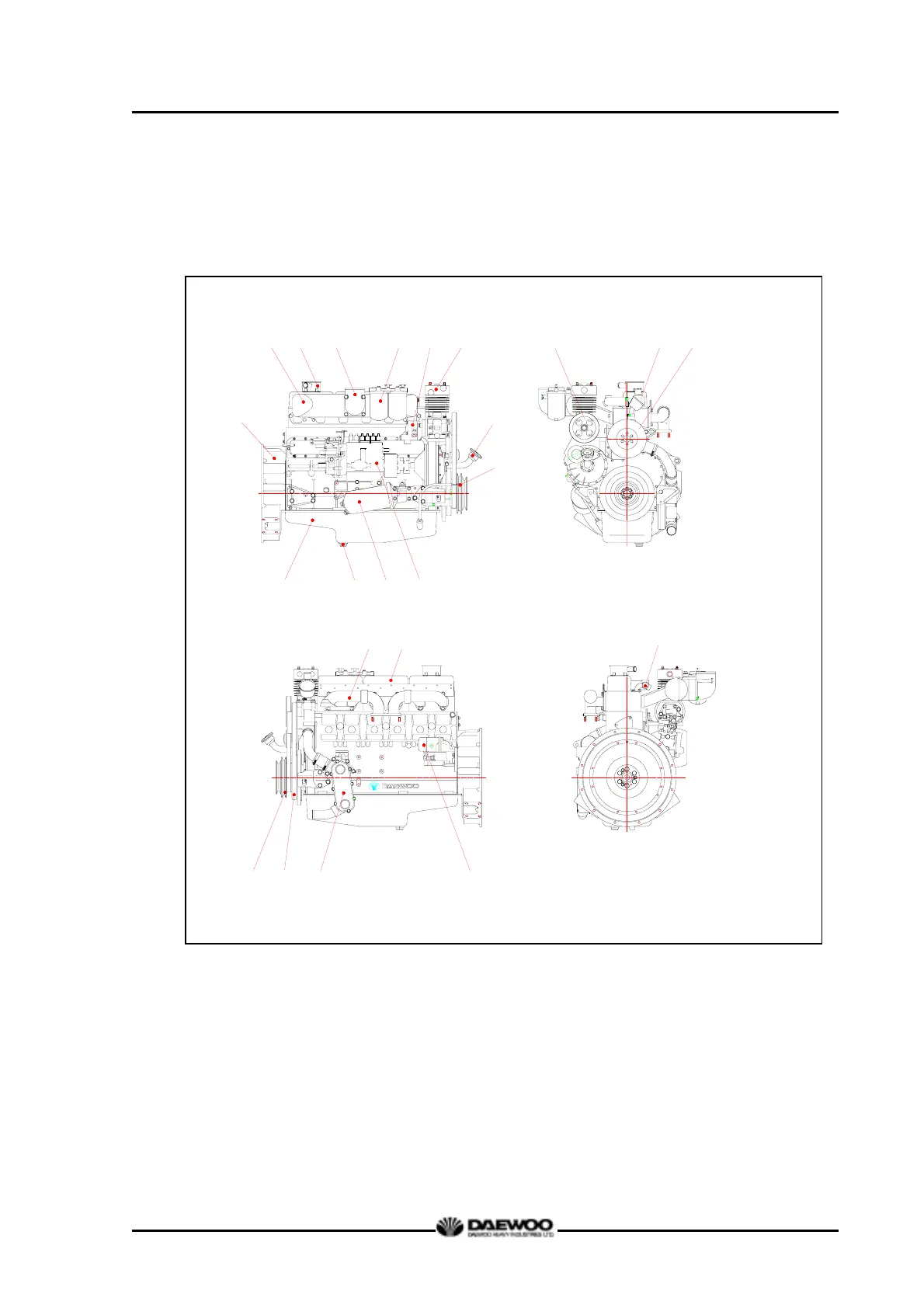

1.4.3. Engine Assembly Views
(1) D1146 (bus)
1 Flywheel housing 8 Oil filler cap 16 Water pump
2 Intake manifold 9 Oil level gauge 17 Exhaust manifold
3 Breather 10 Oil pan 18 Cylinder head cover
4 Air pipe 11 Oil drain plug 19 Crank shaft pulley
(Air cleaner to intake manifold)
12 Oil filter 20 Vibration damper
5 Fuel filter 13 Fuel injection pump 21 Oil cooler
6 Power steering pump 14 Air compressor pulley 22 Starter
7 Air compressor 15 Thermostat 23 Cooling water pipe
1
2
3 4 5 6 7
8
9
10
11
12
13
14
15
17 18
19
20
21
22
23
16
