D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
37
Printed in Jan. 2001 PS-MMA0415-E1A

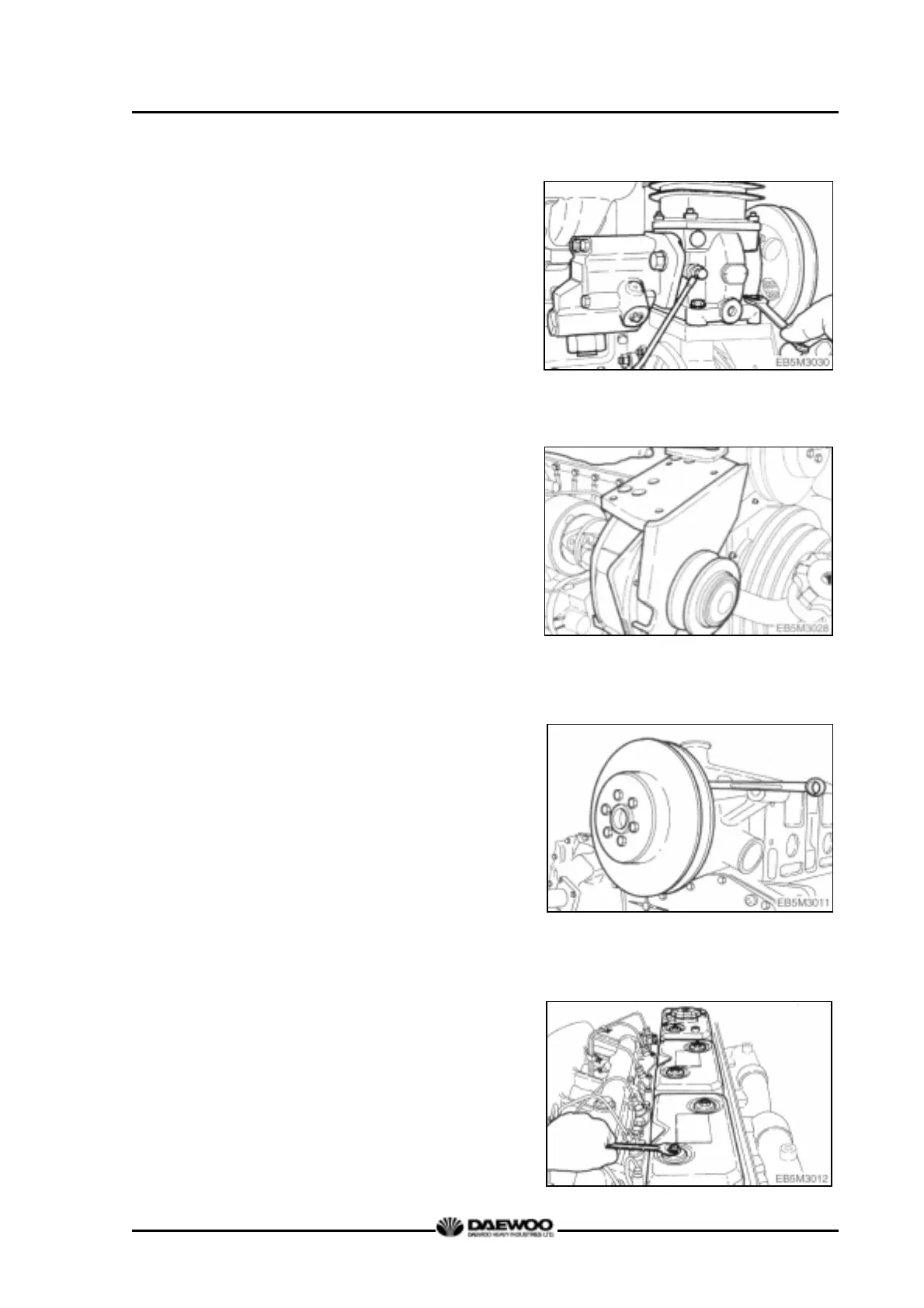

3.1.16. Air compressor
z Remove the oil pipe between cylinder
block and air compressor.
z Unscrew the air compressor fixing bolts
and take off the air compressor.
3.1.17. Idle pulley
z Unscrew the idle pulley fixing
bolts and take off the idle pulley
3.1.18. Water pump
z Unclamp the rubber hose connected to
the oil cooler.
z Unscrew the water pump fixing bolts from
the cylinder block and take off the water
pump.
3.1.19. Cylinder head cover
z Remove the head cover fixing bolts and
lift the cylinder head cover.
