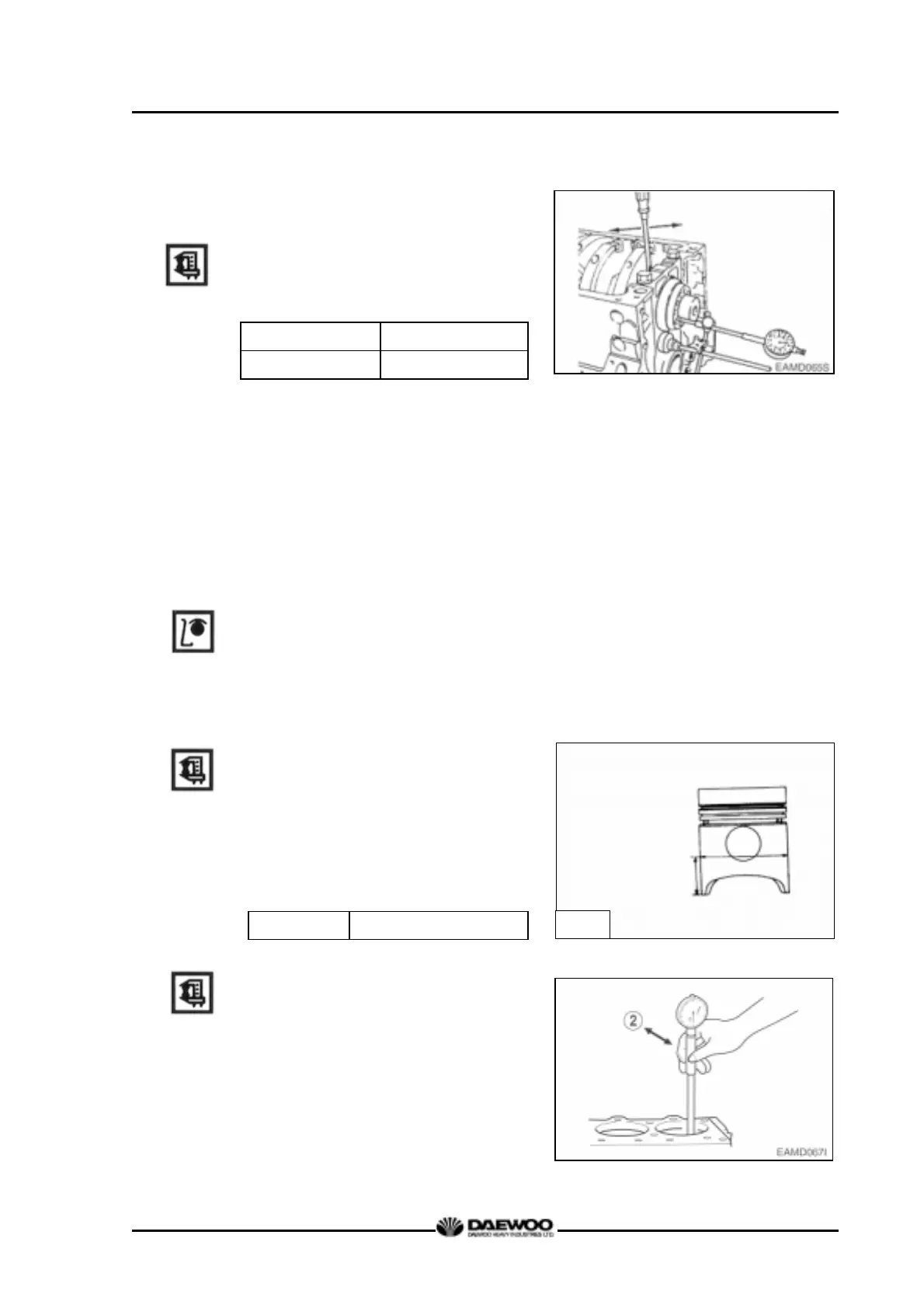

5) Crank shaft end play
z Assemble the crankshaft to the
cylinder block.
z With a dial gauge, measure
crankshaft end play.
Standard Limit
0.15 ∼ 0.325 mm
0.5 mm
3.2.6. Piston assembly
(1) Disassemby of piston assembly
Disassemble piston according to the
disassembly process.
(2) Piston inspection
1) Visual check
Visually check the pistons for cracks,
scuff or wear, paying particular attention
to the ring groove.
2) Clearance between the piston and cylinder liner
z With an outside micrometer,
measure the piston outside diameter
at a point 13mm away from the lower
end of piston skirt in a direction at a
right angle to the piston pin hole.
Standard
φ110.883 ∼ φ110.897 mm
z Using a cylinder bore gauge,
measure cylinder liner inside
diameter at 3 points (cylinder top
ring contacting face, middle, and oil
ring contacting face on BDC) in a
direction at an angle of 45°. Take the
mean value with the largest and
smallest values excepted.
Position of measuring
outside diameter
13 mm
G1095
