3) Wear
z Assemble the connecting rod to the
crankshaft and measure connecting
rod big end side clearance using a
feeler gauge.
z Assemble the connecting rod to the
piston and measure connecting rod
small end side clearance.
z If the measured values are beyond
the limit, replace the connecting rod.
Limit
0.5 mm

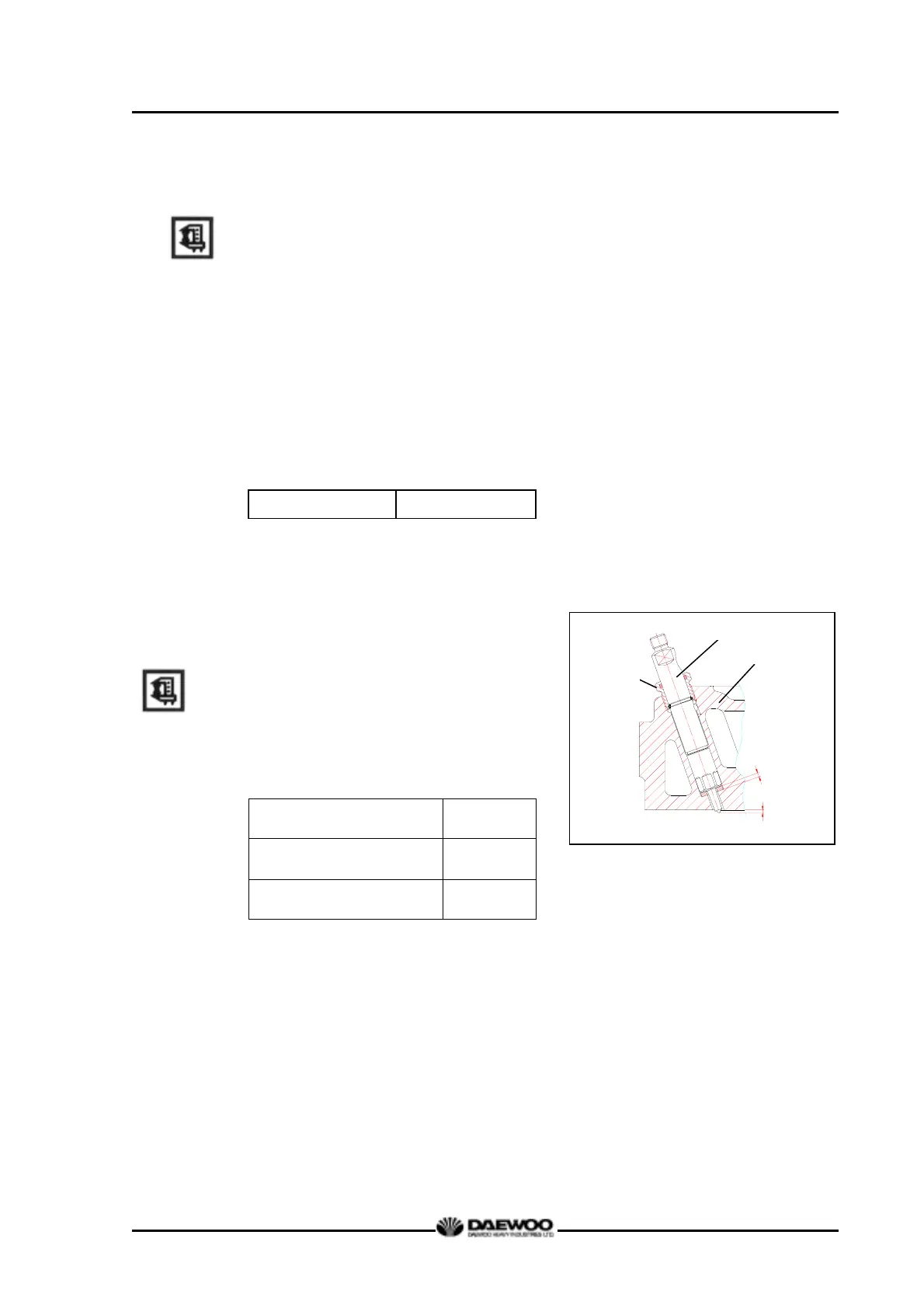

3.2.7. Fuel injection nozzle projection (DE08TIS)
z Insert a seal ring on the cylinder head
and assemble the injection nozzle
z Measure the clearance between the
cylinder head bottom and nozzle tip. If
the measured values are beyond the
limit, replace the seal ring.
Standard
A
(Thickness of seal ring)
3.5±0.1
mm
B
(Projection of nozzle)
2.43~2.80
mm
A
B
Fuel in
j
ection nozzle
C
y
linder hea
d
Torque
7k
g
.
m
