- 81 -

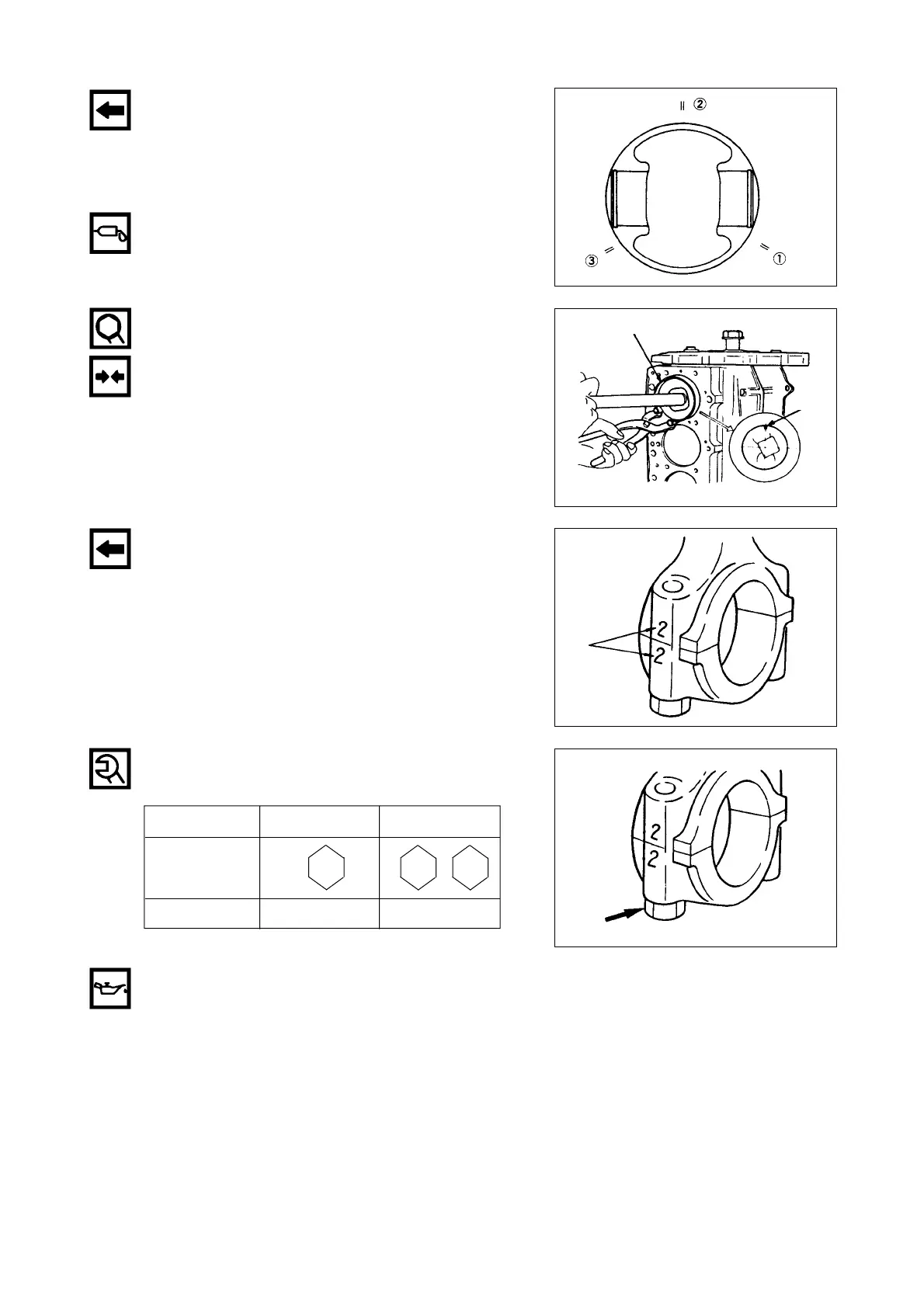

Piston and Connecting Rod
Settle a clearance of piston ring. (see figure)
1) Fix a clearance of piston ring (see figure)
2) Spread the engine oil to piston, pinston ring,
connecting rod bearing.
3) Front piston mark to be directed in front of
engine.
4) Utilize the piston ring compresser when
assemble pistion.
5) Pull in pistion until connect crank pin by a
handle of hammer.
Rotate the crank shaft so as to be reached
bottom dead center (BDC).
6) Agreely assemble the connecting rod
bearing cap with the connecting rod cylinder
number.
Assemble the classified depend upon kind of
bolt as following.
Assembled Oil Pump
Assemble the oil pump at the filled up oil at the
pump.
EJM2131S
EJM2132S
EJM2133S
EJM2134S
Piston ring compresser
Cylinder
Number
Torque(kg∙m) 12±0.25 9.75±0.25
Classified
,
(Bolt head)
Treated surface oxidized steel
phosphoric acid & basic film.
To Next Page
